"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
USING THE LI-ION BATTERY SOFTWARE - BATTERY FAULT SCREEN
LEVEL 3 - PELLENC AUTHORISED REPAIRER

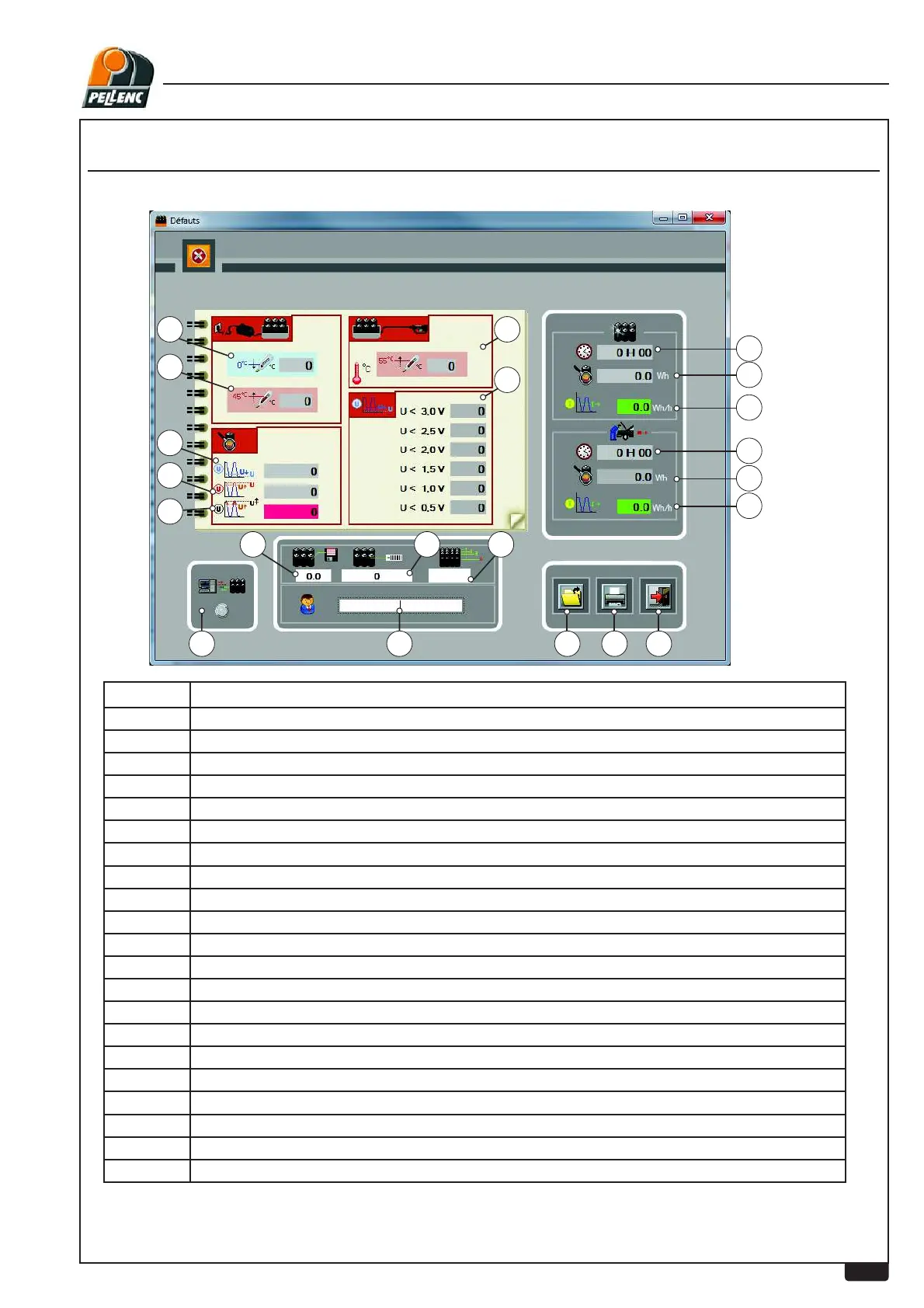

Labels Explanations
1
Total working time from start-up or from replacement of card
2 Total power use from start-up or from replacement of card
3 Average total power use from start-up or from replacement of card
4 Working time since last overhaul
5
Charge consumed since last overhaul
6 Average charge consumed since last overhaul
7 %XWWRQIRURSHQLQJDOUHDG\VDYHG¿OH
8 Print button.
9 Return to previous screen (escape)
10 Name of customer entered during wired download or battery serial number in RFID
11 Battery software version.
12 Battery internal serial No.
13 Number of battery cells
14 Communication indicator (serial link only)
15 Temperature too low during charging
16 Too high during charging
17 Low voltage (Battery fully discharged => beep + display off)
18 Voltage high
19 Over charge
20 Temperature too high while working
21 Number of times the cell is below the indicated values (
Less than 2.5 = deep discharge)
