pellenc 200 - Description

13
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

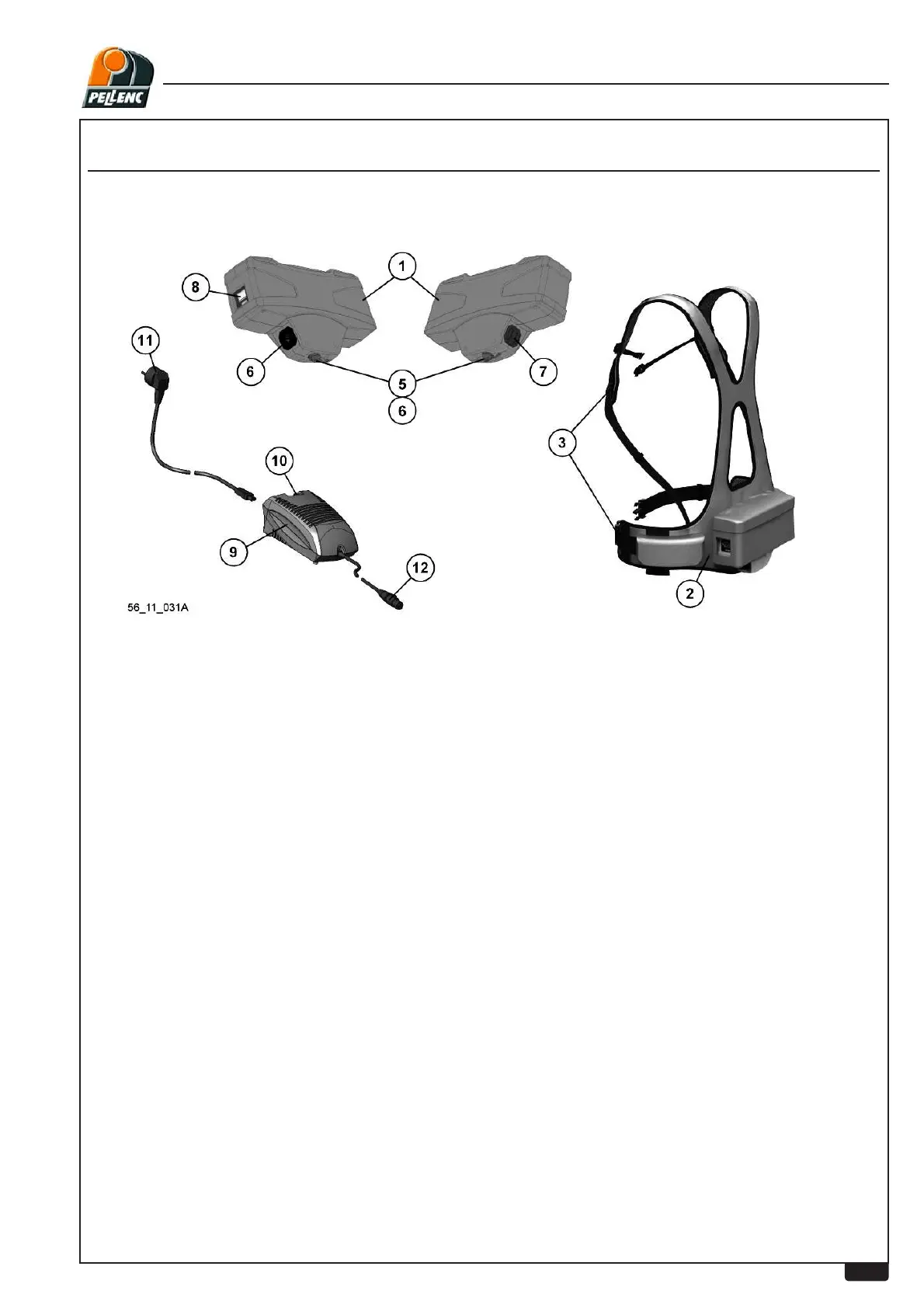

1– Battery
2
– Belt
3– Adjustment buckles
4– Tool power connector
5– Charging connector
6– Charging connector cap
7– On/Off switch
8– Battery charge level indicator
9– Charger
10– Charging light
11– Charger mains power plug
12– Charging connector
DESCRIPTION
LEVEL 2 - USER'S TECHNICAL DEPARTMENT
