"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
USING THE LI-ION BATTERY SOFTWARE - SELION TOOL SCREEN
LEVEL 3 - PELLENC AUTHORISED REPAIRER

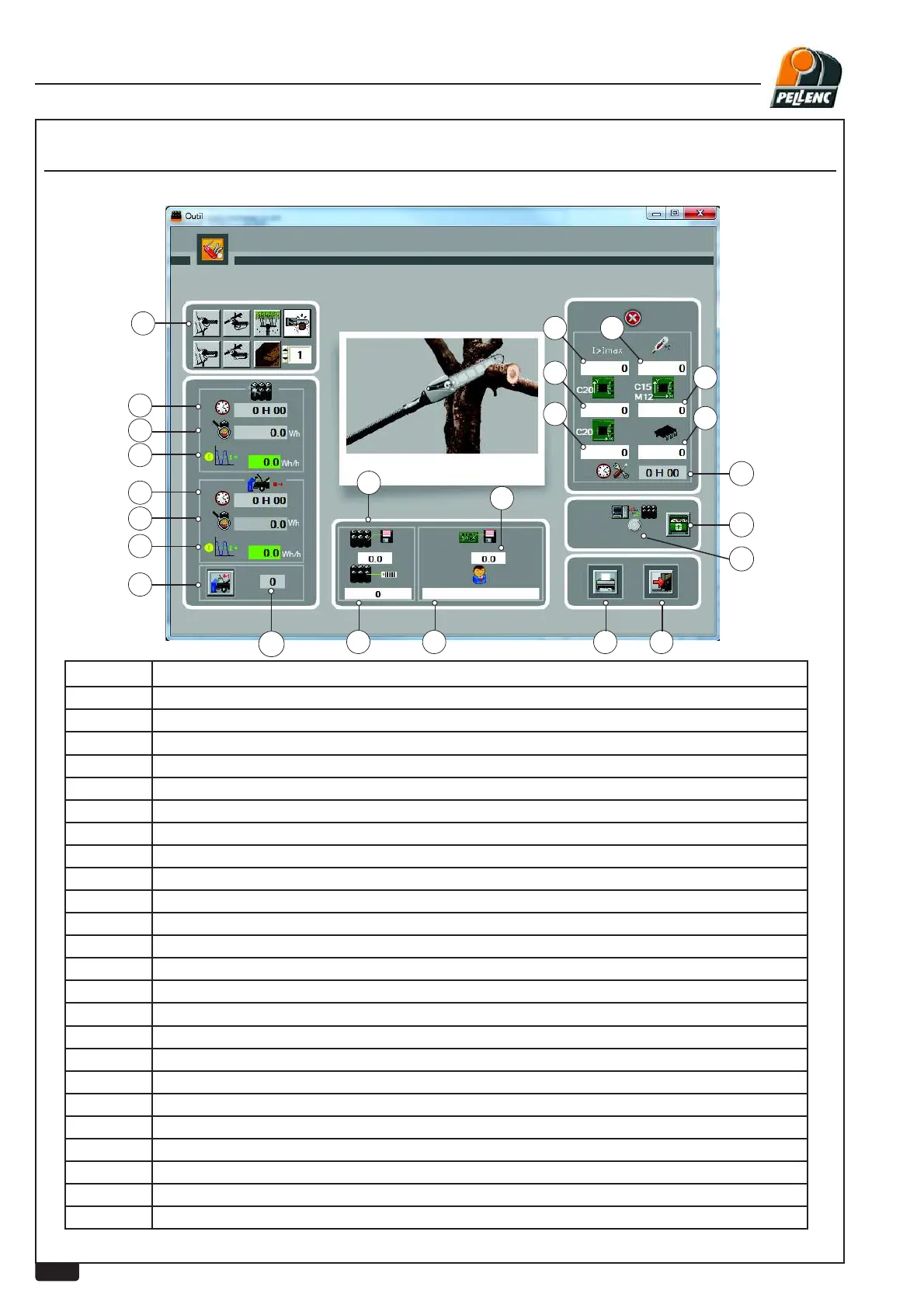

Labels Explanations
1 Choice of tools and pages (2 pages)
2 Total working time from start-up or from replacement of card
3 Total power use from start-up or from replacement of card
4 Average total power use from start-up or from replacement of card
5 Working time since last overhaul
6 Charge consumed since last overhaul
7 Average charge consumed since last overhaul
8 Reset time counter since last overhaul
9 Battery internal serial No.
10
Battery software version.
11
Name of customer entered during wired download or battery serial number in RFID
12 Current too high
13 Motor control board temperature
14 Accelerometer faults on C15 / M12
15 Communication indicator (serial link only)
16 Print button.
17
Return to previous screen
18 Motor starting fault
19 Vertical accelerometer faults on C20/C21
20 Horizontal accelerometer faults on C20/C21
21 Software version of last tool used
22 Tool operating time
23
Reset fault screen
24 Number of overhauls carried out
