"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

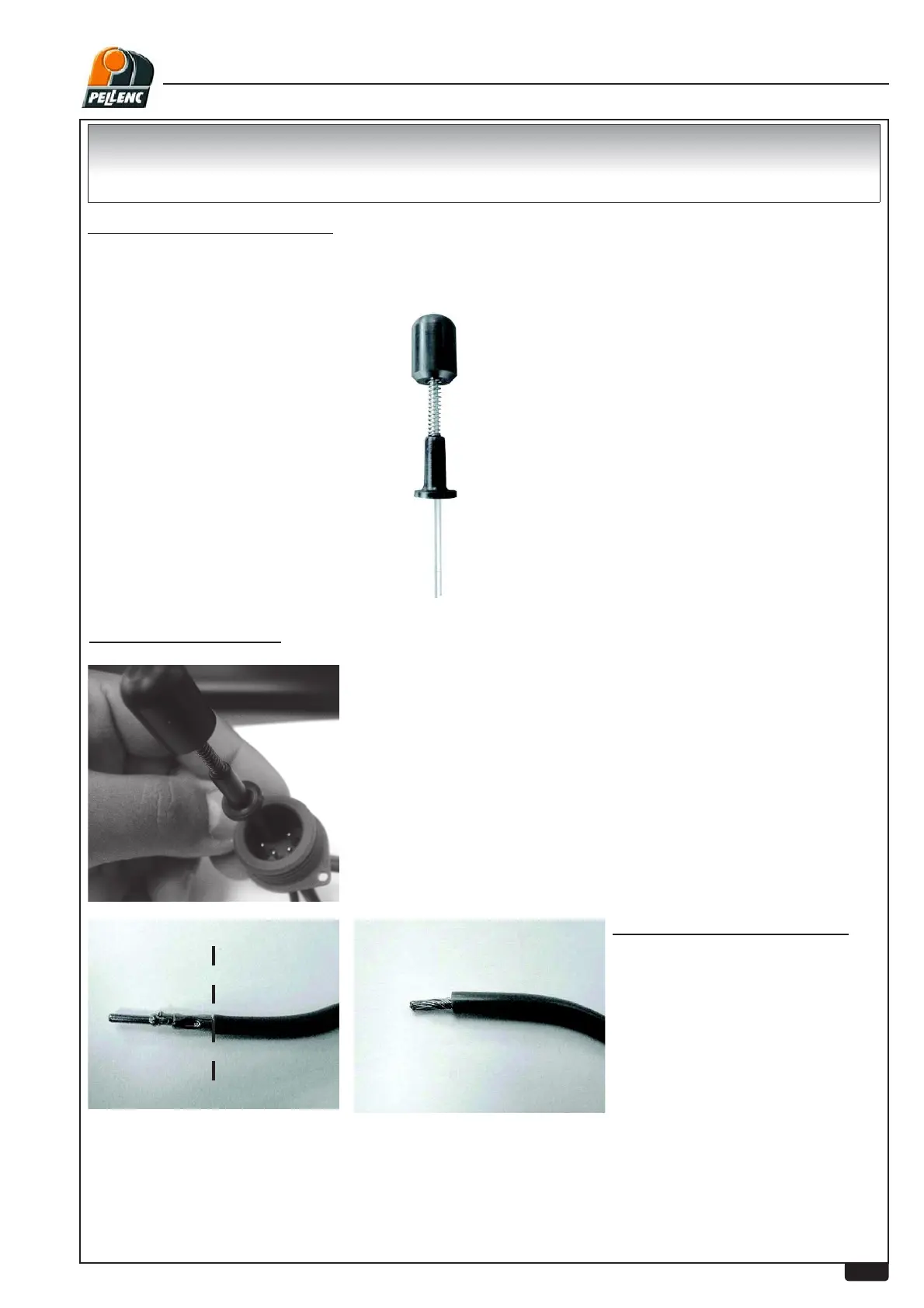

CNT ITT EXTRACTOR
CANNON TRIDENT
(36375)
Extraction of the broken contact: use an ITT CANON extractor, PELLENC P/N 36375.
Make the work area safe:in this case, carefully open the battery and remove the fuse.
tilisation d’un extracteur ITT CANON ref. PELLENC 36375.
Insert the extractor around the broken contact, down to the bottom of
the battery connector spotface. Depth of insertion: ~1.5mm.
NOTE 1: as a basis, take a new contact and hold it next to the wire to be stripped to determine the exact
stripping length.
127(GRQRWWZLVWWKHVWUDQGVRIWKHZLUHWRJHWKHURWKHUZLVHWKHZLUHZLOOQRORQJHU¿WLQWRWKH
contactŹleave the strands straight.
Push the extractor hard with the palm of your hand while keeping it
aligned with the contact to be extracted (coaxial with the centerline of
the contact concerned).
&XWWKHEURNHQFRQWDFWRIIÀXVK
then strip the wire to the length
necessary for recrimping.
EXTRACTION OF A BROKEN CONTACT
