"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

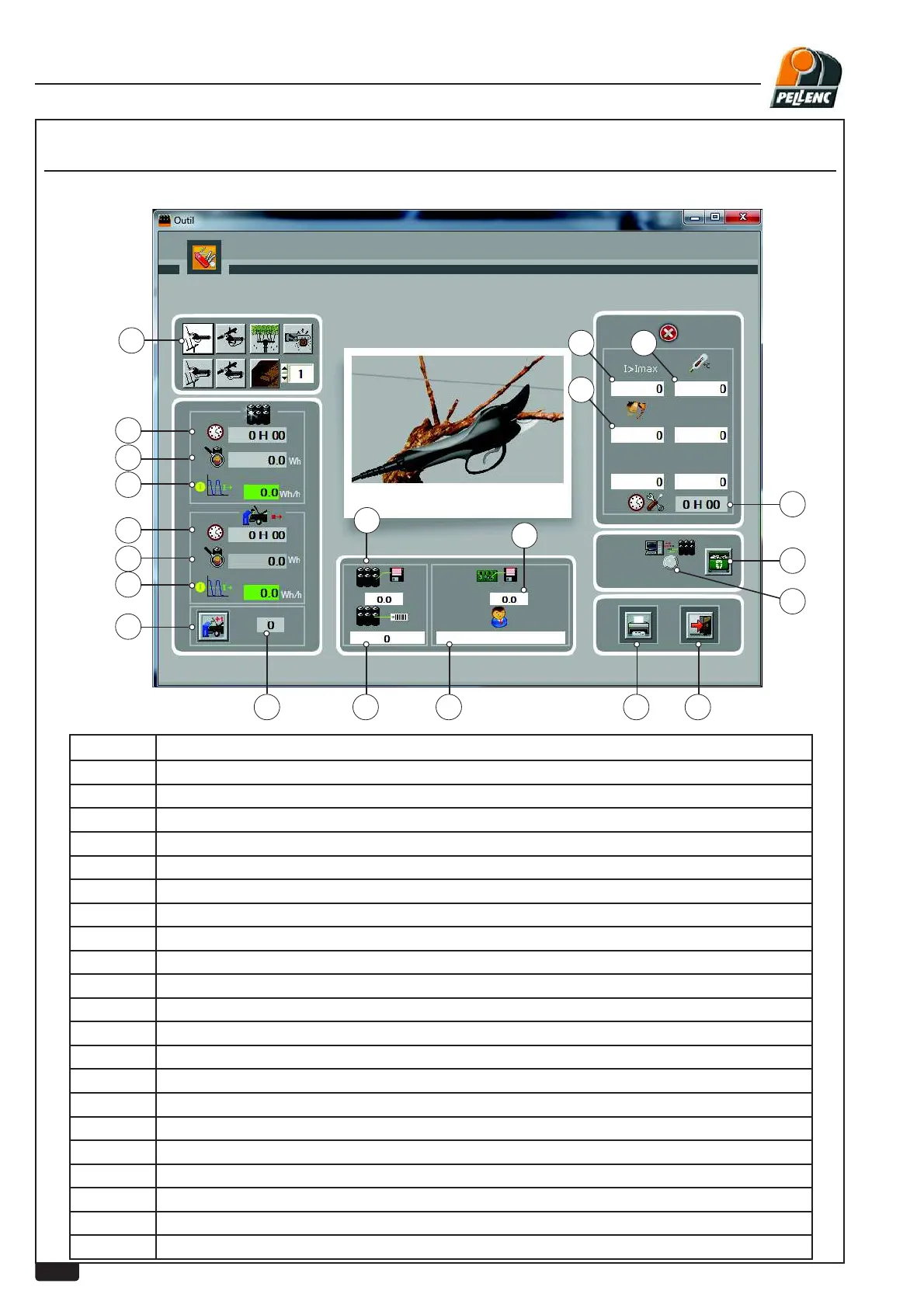

USING THE LI-ION BATTERY SOFTWARE - LIXION TOOL SCREEN
LEVEL 3 - PELLENC AUTHORISED REPAIRER
Labels Explanations
1
Choice of tools and pages (2 pages)
2
Total working time from start-up or from replacement of card
3
Total power use from start-up or from replacement of card
4
Average total power use from start-up or from replacement of card
5
Battery working time since last overhaul
6
Charge consumed since last overhaul
7
Average charge consumed since last overhaul
8
Reset time counter since last overhaul
9
Battery internal serial No.
10
Battery software version.
11
Name of customer entered during wired download or battery serial number in RFID
12
Current too high
13
Motor control board temperature
14
Trigger sensor fault
15
Communication indicator (serial link only)
16
Print button.
17
Return to previous screen (Esc)
18
Software version of last tool used
19
Operating time by tool group
20
Reset fault screen
21
Number of overhauls carried out
