112
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

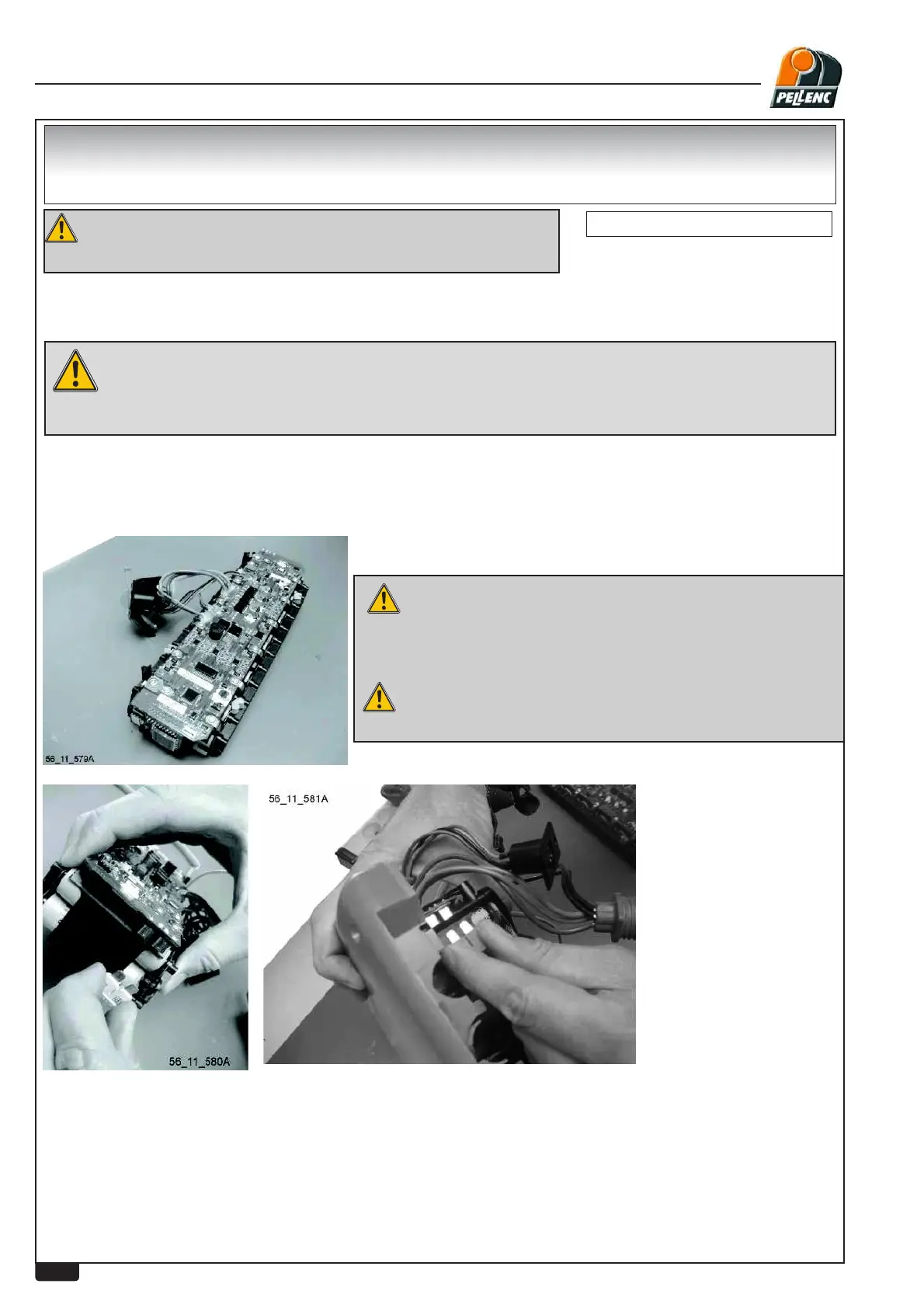

REPLACEMENT OF THE BOARD
-Multimeter
-Anti-static bracelet
-Torque wrench
SPECIFIC TOOLS:
- Disassemble the complete casing
- Remove the fuse
- Retrieve the battery settings (see instructions)
USE THE TABLE ON THE PAGE 76 TO VERIFY THE
MODEL
OF YOUR BATTERY.
200 battery
2kW
Battery (except Poly 5)
DEINSTALLING THE BOARD ON: BATTERIES 150 / 200 / 250 / 2KW / OLIVION BATTERY
PLEASE COMPLY WITH THE SEQUENCE FOR REINSTALLING THE CARD IF THESE
INSTRUCTIONS
ARE IGNORED, THE U4 COMPONENT MAY BE BROKEN WHEN THE
NEW CARD IS FITTED.
ON BATTERIES 2 KW AND OLIVION (not Poly 5)
THE LOWER PART OF THE CASING CANNOT BE REMOVED
-
DO NOT REMOVE THE CELL PACK WITH FIRST RELEAS-
ING THE CASING (Only for battery 200)
