"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

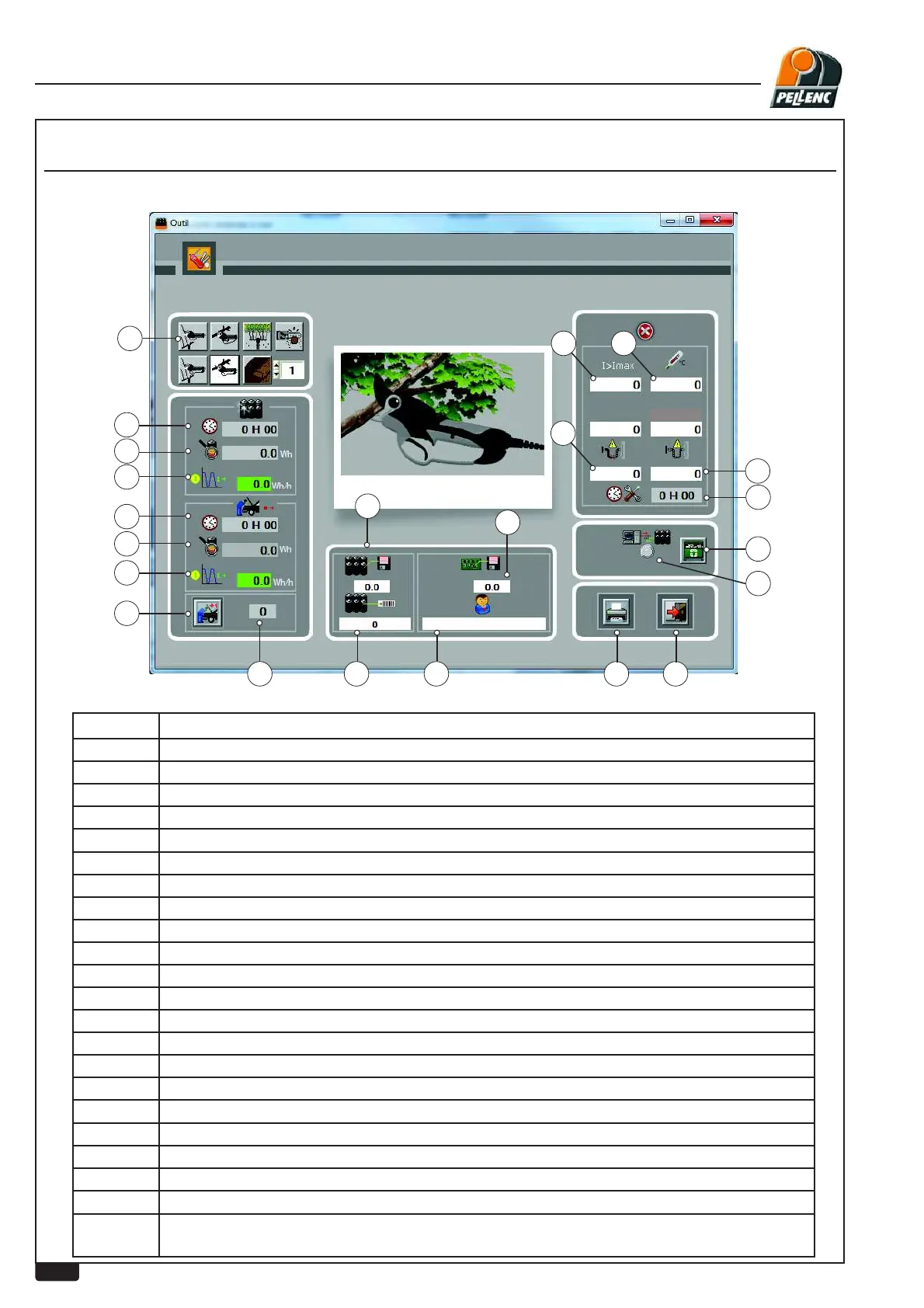

USING THE LI-ION BATTERY SOFTWARE - PRUNION TOOL SCREEN
LEVEL 3 - PELLENC AUTHORISED REPAIRER
Labels Explanations
1
Choice of tools and pages (2 pages)
2 Total working time from start-up or from replacement of card
3 Total power use from start-up or from replacement of card
4 Average total power use from start-up or from replacement of card
5 Working time since last overhaul
6 Charge consumed since last overhaul
7 Average charge consumed since last overhaul
8 Reset time counter since last overhaul
9 Battery internal serial No.
10 Battery software version.
11
Name of customer entered during wired download or battery serial number in RFID
12 Current too high
13 Motor control board temperature
14 Communication indicator (serial link only)
15 Print button.
16 Return to previous screen (escape)
17 Software version of last tool used
18 Tool operating time
19
Reset fault screen
20 Number of overhauls carried out
21
Communication between the tool and the battery is interrupted during operation of the shears.
22
Communication between the tool and the battery is not established when the battery is
started.
