"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

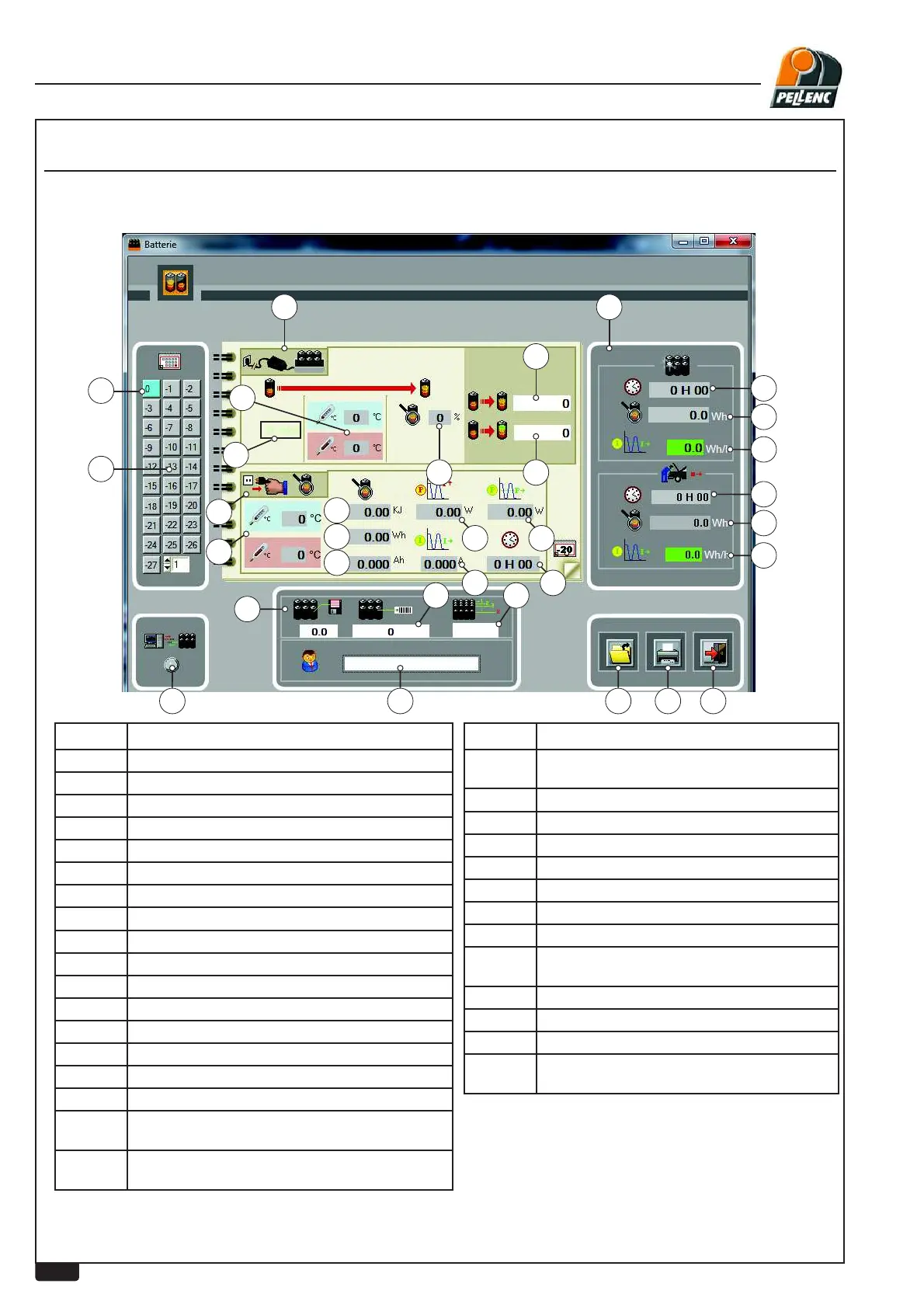

USING THE LI-ION BATTERY SOFTWARE - BATTERY SCREEN
CTRL + SHIFT + B
LEVEL 3 - PELLENC AUTHORISED REPAIRER
Labels Explanations
1 Active cycle button highlighted
2 List of available cycles from 0 to -27
3 Charging part
4 High and low temperature during charging
5 End of charging
6 Number of charging operations performed.
7 Number of complete charging operations
8 Usage part
9 High and low temperature during use
10 Power in KJ
11 Power consumed in Wh
12 Charge consumed in Ah
13 Max. power in W
14 Average power in W
15 Average current in A
16 Operating time
17 Total working time from start-up or from replace-
ment of card
18 Total power use from start-up or from replacement
of card
Labels Explanations
19 Average total power use from start-up or from
replacement of card
20 Working time since last overhaul
21 Charge consumed since last overhaul
22 Average charge consumed since last overhaul
23 Communication indicator (serial link only)
24 Battery software version.
25 Battery internal serial No.
26 Number of battery cells
27 Name of customer entered during wired down-
load or battery serial number in RFID
28 %XWWRQIRURSHQLQJDOUHDG\VDYHG¿OH
29 Print button.
30 Return to previous screen (escape)
31 Remaining charge when the charger is con-
nected
