pellenc 200 - Use of Charge Level Indicator Diagnostics Without Pc; Battery Discharge Time

94
2 sec 1 sec 1 sec
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

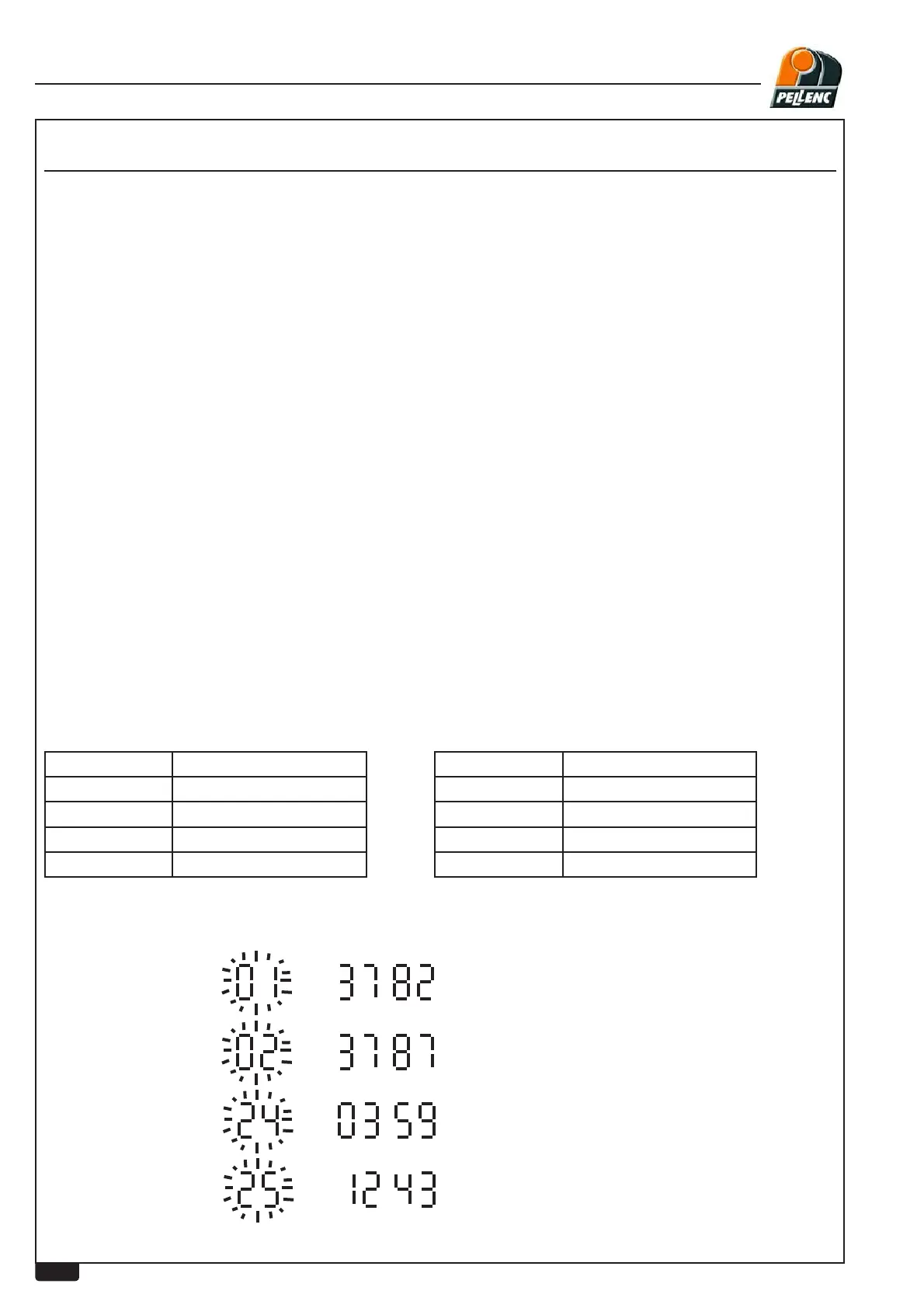

USE OF CHARGE LEVEL INDICATOR DIAGNOSTICS WITHOUT PC
1243 tool operating hours
Consumption of 359
Amp hours
Strongest cell at 3.787 Volts
or 3787 mV
Weakest cell at 3.782 Volts
or 3782 mV
EXAMPLE
Move the On/Off switch to position "1" «1» for 1 second.
Move the switch to position "0" «0» for 1 second.
Repeat the switch movement 4 times.
The messages scroll on the display.
Scrolling of data
7KHIDXOWQXPEHUÀDVKHVIRUVHFRQGV
7KH¿UVWYDOXHLVGLVSOD\HGIRUVHFRQG
The second value is displayed for 1 second.
Repeat the operation in order to check the read out.
Storage mode is activated automatically following a diagnostic without PC.
To stop the battery from discharging, move the battery switch to 1 and 0..
BA
TTERY DIAGNOSTIC WITHOUT SOFTWARE
LEVEL 3 - PELLENC AUTHORISED REPAIRER
Starting the diagnostic of the shears.
Battery Discharge time
150 / 150P 11 hours
200 21 hours
250 1 - 2 days
400 2 - 3 days
Battery Discharge time
Olivion 5 - 6 days
700 6 - 7 days
1100 8 - 9 days
Poly 5 3 - 4 days
BATTERY DISCHARGE TIME
Values calculated based on consumption of 4.4 W/h during discharge
