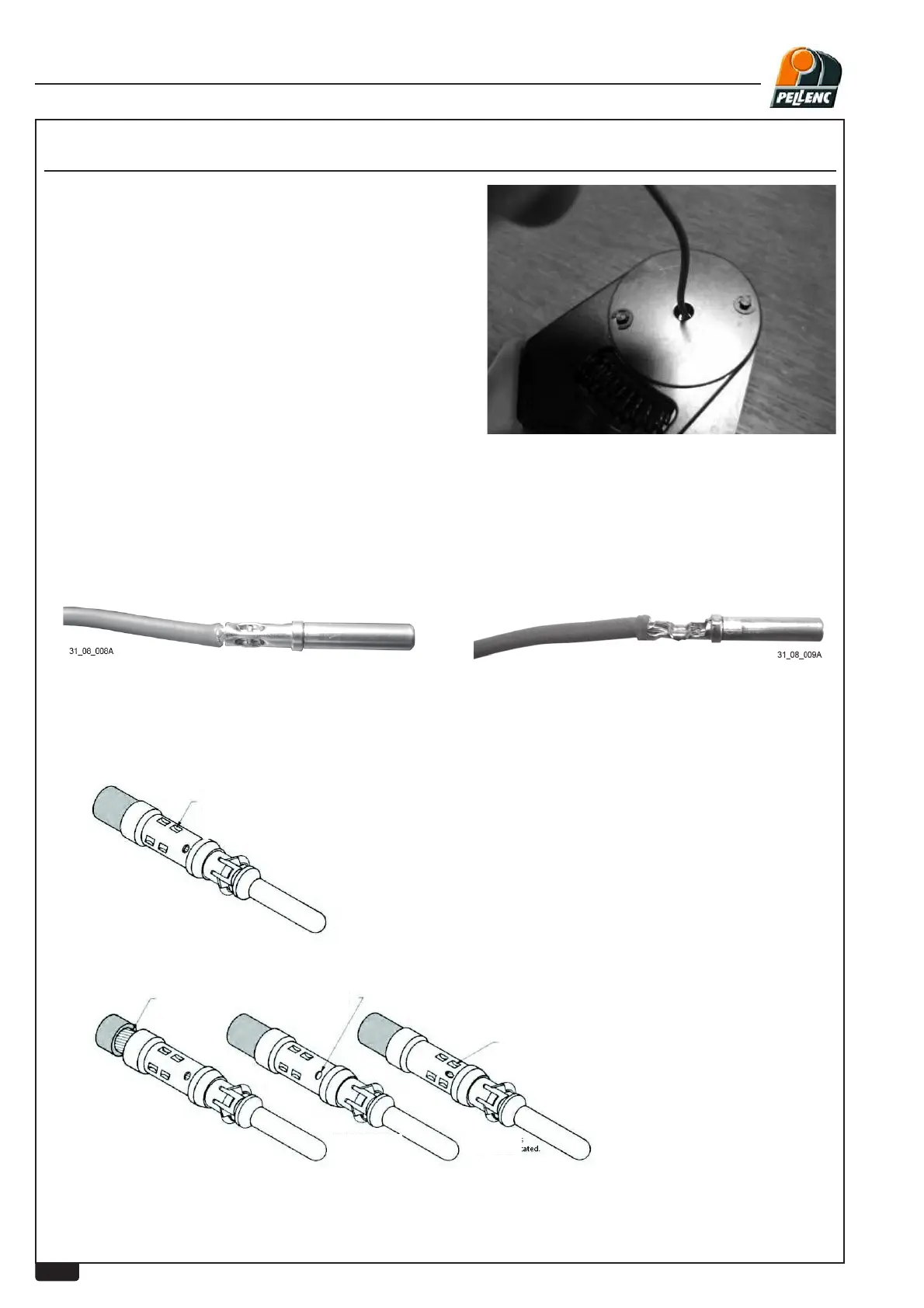

"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
4- Insert the wire fully into the lug to be crimped
5-
&ULPSWKHZLUH¿UPO\XQWLOWKHFULPSLQJSOLHUVRSHQ
6- Inspect the crimp to validate the assembly; the wiremust not come out of the crimp when it is
pulled(Risk of contact splitting if crimped too hard).
CLOSED BARREL CONTACT
OPEN B
ARREL CONTACT
LEVEL 2 - USER'S TECHNICAL DEPARTMENT
Correctly crimped contacts
Exa
mples of Crimping faults
Crimp to meet
recommended tensile
strength.
Strands visible
beyond insulation
support.
Stripped part of the
wire too long.
Stripped part of
the wire too short.
Strands not visible
trough inspection hole
Crimp indents too close to
inspection hole
Crimp indents
incorrectly
located
