76180 EM -13/73-

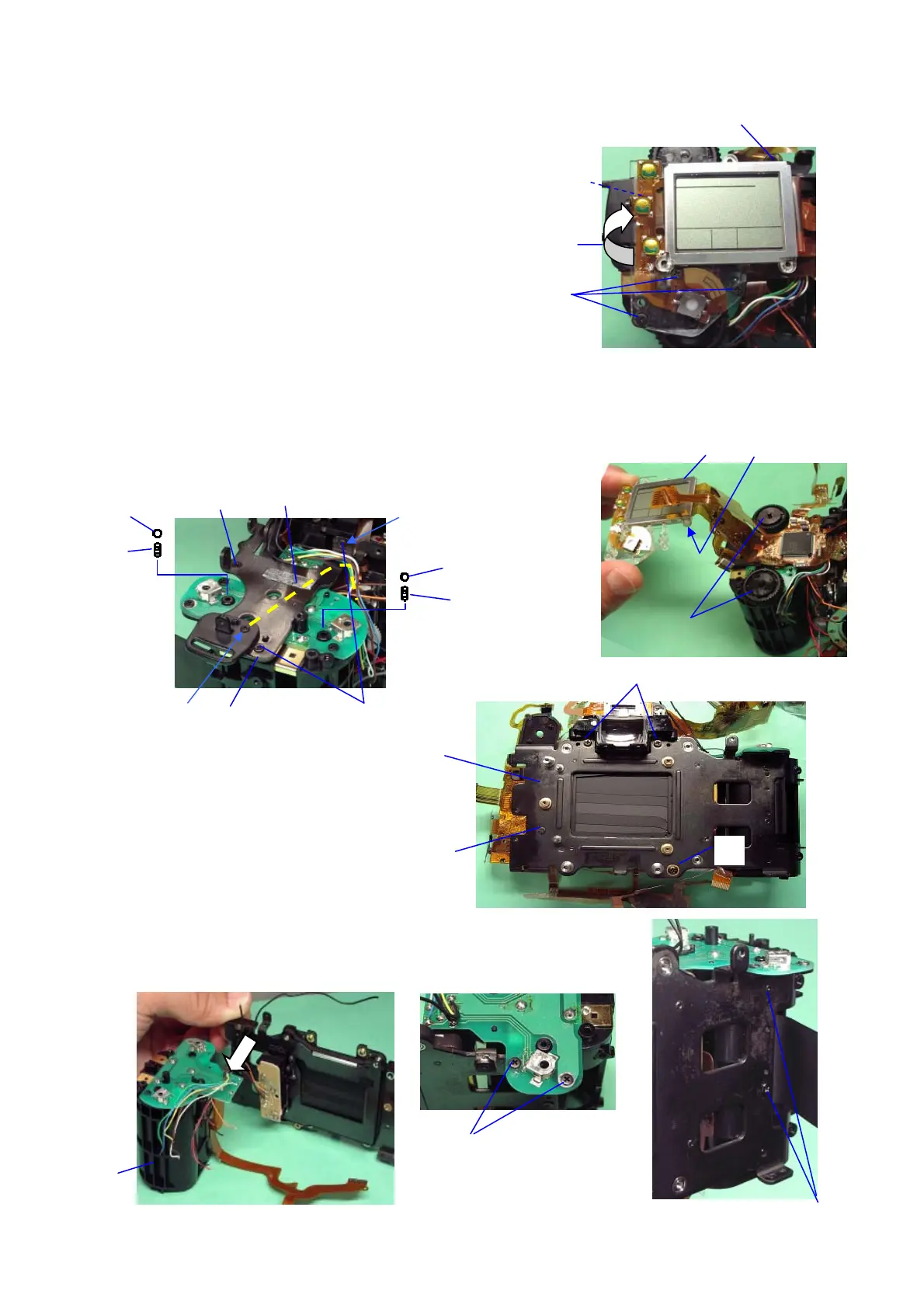

15. T903 (TV/AV Dial)
① CNL-D1.7x2.5
② TY-CNL-D1.7x9.0 (3pcs.)
③ Peel off the flexible board from the LCD frame.
④ TY-CNL-D2.0x9.0
･･･ Underneath the flexible board of 0-T100.
⑤ Lift up the LCD frame of 0-T100.
(If there is a lug-plate, remove it by loosening screw.)
⑥ T903 (2pcs.)
⑦ BO1.5 (2pcs.)
⑧ A17 (2pcs.)
⑨ CSM1.7x2.5
⑩ TY-CSM1.7x4.0･･･ A429 lug-plate for CE mark
⑪ TY-CNL-D1.7x4.0 (2pcs.)
⑫ A6 ･･･ If there is a lug-plate, remove it by loosening screw.)
16. Front Housing Block
① TY-CNL-D2.0x9.0
② TY-CNM2.0x6.0 (2pcs.)
③ CNL-D1.7x2.5
④ Main base plate
17. 0-E000 (Shutter Block)
① TY-CNL-D1.7x4.0 (2pcs.)
② CNL-D1.7x2.5 (2pcs.)
③ A13
①
②
③
④
③
②
①
⑨
⑩
⑪
⑫
⑦
⑧
A429
A429
⑦
⑧
②
①
④
③
⑥
⑤
A429
To Next Page
