76180 EM -12/73-

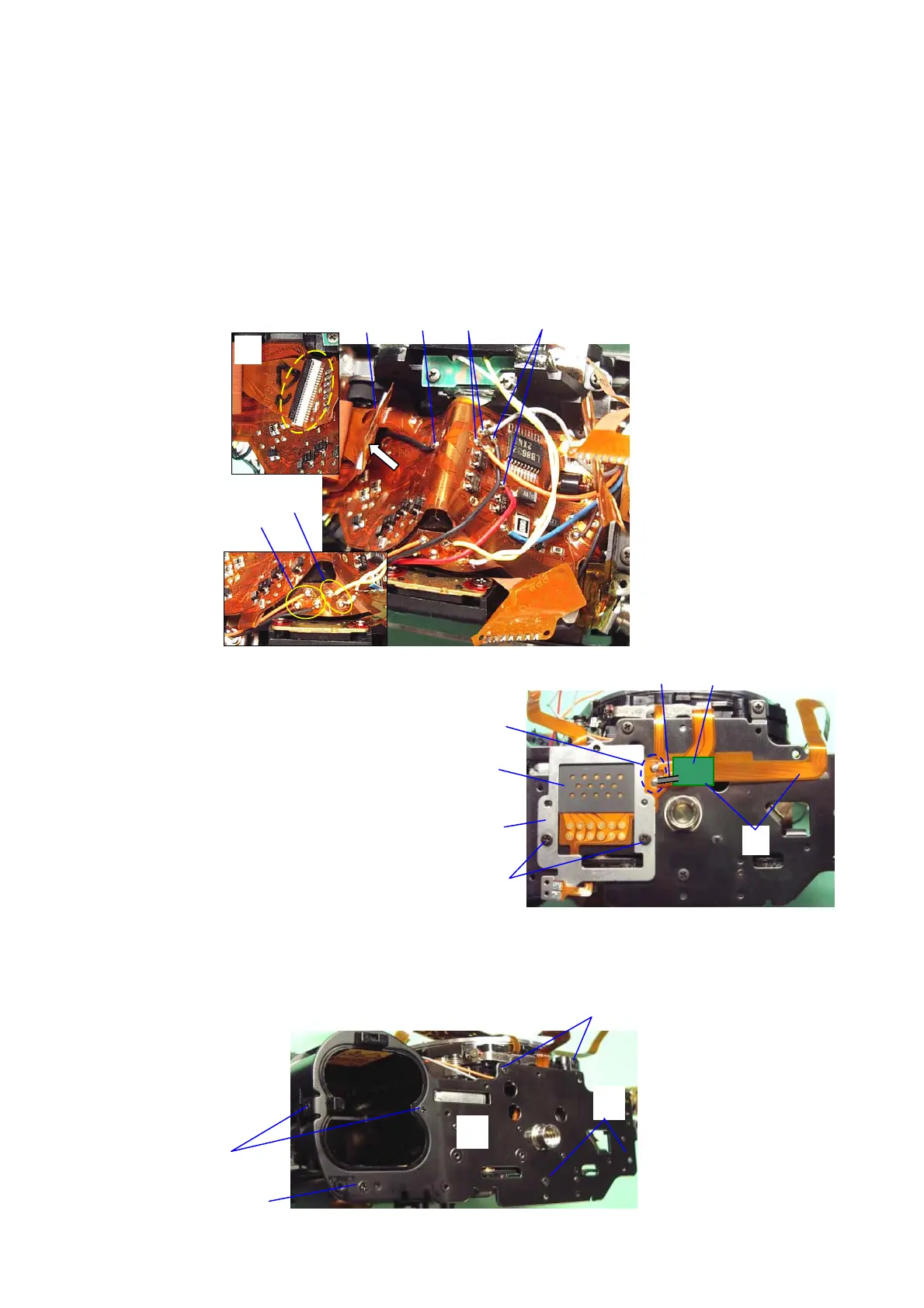

13. Around Pentaprism (2)
① Disconnect the flexible board of O100 from the connector terminal of 0-T100.
② Peel off the flexible board of T100 from DT.
③ Unsolder a black lead wire. (T900)
④ Unsolder 2 lead wires. (Orange, Gray S300)
⑤ Unsolder 2 lead wires. (Red, Black S250)
⑥ Unsolder 2 lead wires. (Yellow, White T970)
⑦ Unsolder 3 lead wires. (Orange, Brown, Black E000)
14. 0-A3 (Bottom Plate assy.)
① CNL-D1.7x2.0 (2pcs.)
② A422
③ A423
④ Unsolder 2 lands. (T301, T907)
Unsolder a gray lead wire. (T81, for CE mark)
⑤ Peel off T301 and T81 from bottom plate.
(T81 will remove with a lead wire.)
⑥ TY-CSM1.7x4.0 (2pcs.)
⑦ TY-CNL-D1.7x4.0 (2pcs.) ･･･ A429 lug-plate for CE mark
⑧ CSM1.7x2.5
⑨ CNL-D1.7x2.5 (2pcs.)
⑩ 0-A3
⑦
⑥
⑩
⑧
⑨
①
⑤
②
⑥
③
⑦
④
②
①
③
④
Gray T81
⑤
To Next Page
