76180 EM -11/73-

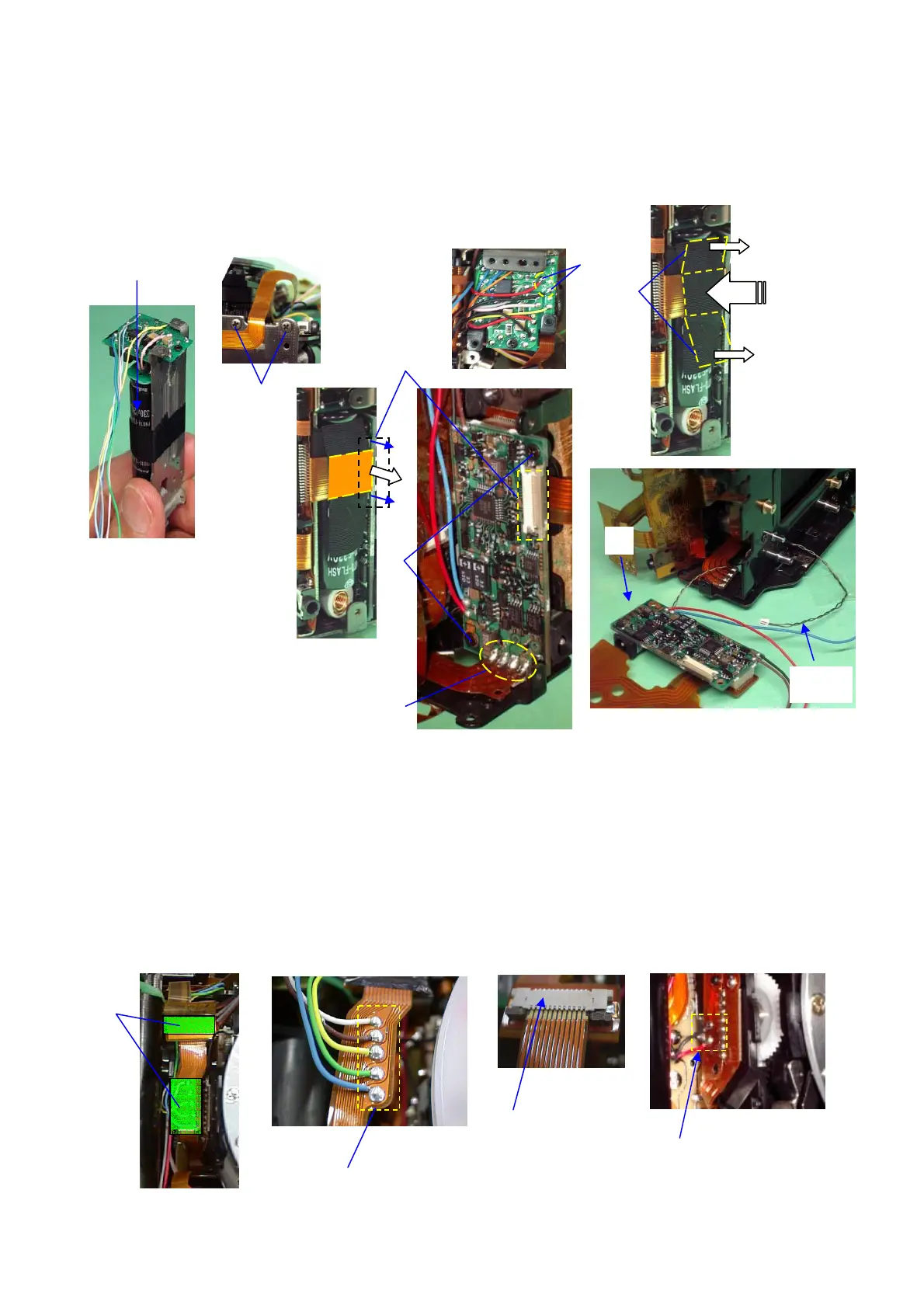

11. 0-Q200・0-T800 (Flash P.C. Board assy., Power P.C. Board assy.)
① Unsolder 2 lead wires. (Red, Black)
② Peel off BT (25x10) while holding 0-T100 with care to avoid breaking the flexible board.
③ Disconnect the flexible board of T100 from the connector terminal of 0-T800.
④ Peel off the flexible board of the cable release socket from DT.
⑤ CNL-D1.7x2.5 (2pcs.)
⑥ 0-Q200
⑦ CNL-D1.7x2.5 (2pcs.)
⑧ Unsolder 4 lands.
⑨ 0-T800･･･ 0-T800 is removed with T905 (Power supply cable).
12. T301 (Mount P.C. Board)
① Peel off T69 (8x15) x2 from T301.
② Unsolder 5 lead wires.
③ Disconnect the flexible board of T301 from the connector terminal of 0-T100.
④ Unsolder 2 lead wires. (Red, Black N300)
⑤
⑨
T905
①
②
③
④
①
②
⑧
⑦
③
To Next Page
