76180 EM -10/73-

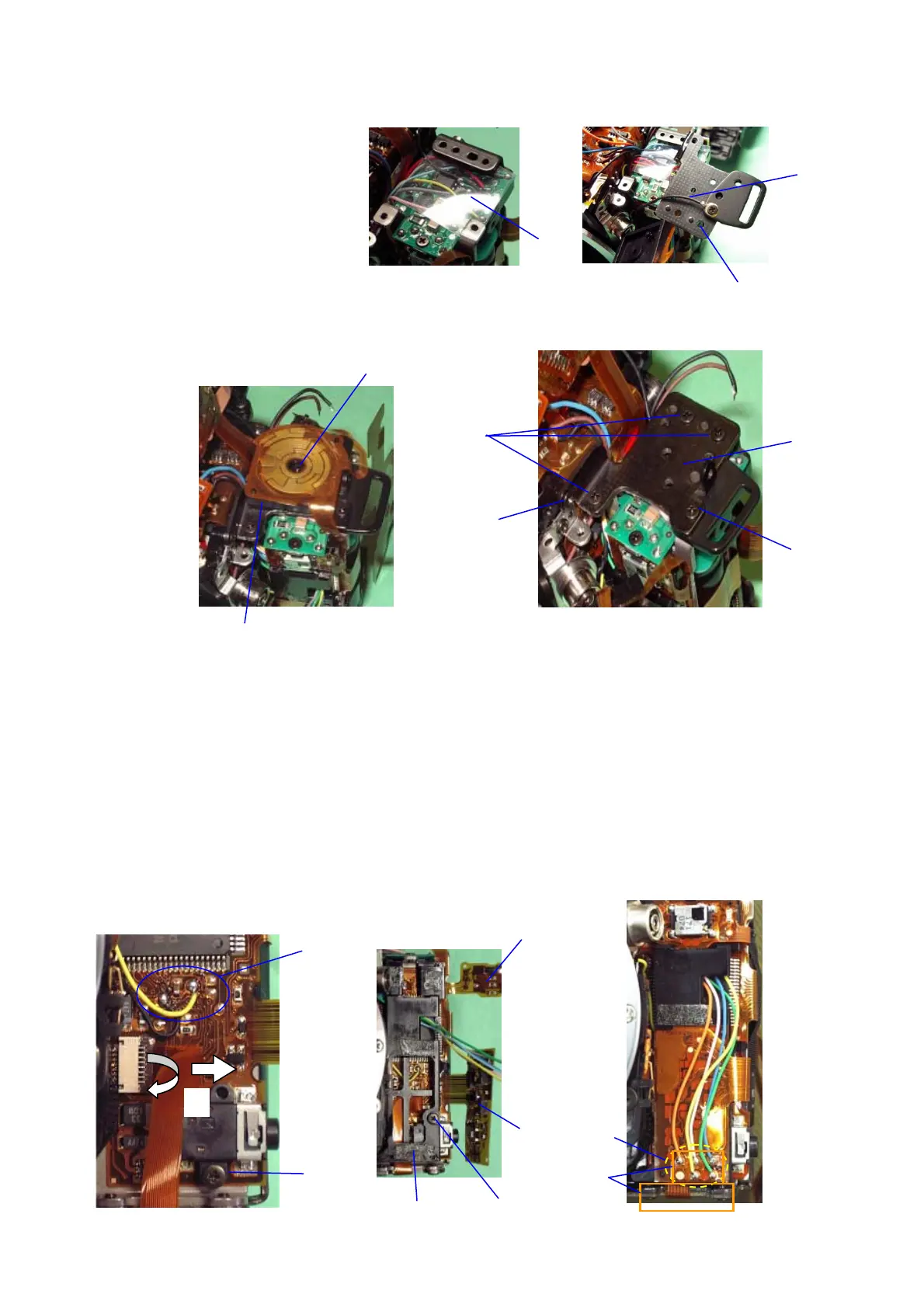

9. A5 (Right shoulder plate)
① CNL-D1.7x2.5
② A338
③ CNL-D1.7x2.5 (3pcs.)
④ CNL-D1.7x3.5
⑤ TY-CNL-D1.7x3.5 (PT 15x8)
⑥ Unsolder a black wire.
･･･ for CE mark
⑦ A5
⑧ T62
10. A49 (Remote control base plate)
① Peel off A427 (8x10) and A425 (10x20). (for CE mark)
② Unsolder 5 lead wires.
③ Peel off the flexible board of remote control.
④ Peel off the flexible board of T100.
⑤ CNL-D1.4x5.0
⑥ A49
⑦ Unsolder 2 lead wires. (Yellow, Black)
⑧ Disconnect the flexible board of T301from 0-T100.
⑨ CNL-D1.4x4.0･･･ Cable release socket
①
②
③
④
⑤
⑦
③
④
⑤⑥
⑥
⑦
⑧
⑧
⑨
⑦
②
①
To Next Page
