76180 EM -47/73-
24-4. Procedure of WDC adjustment
[NOTE] CCD white pixel defect compensation item only can be adjustable by this procedure.
① Connect the AC adaptor to the camera.
② Connect the camera to the computer by the USB cable (I-USB2).
③ Turn the main switch ON, and then confirm that the camera is recognized as a [Removable
Disk] under [My Computer]
④ Start the adjustment software (WDC.exe).
[NOTE] Lens ID number is not necessary.

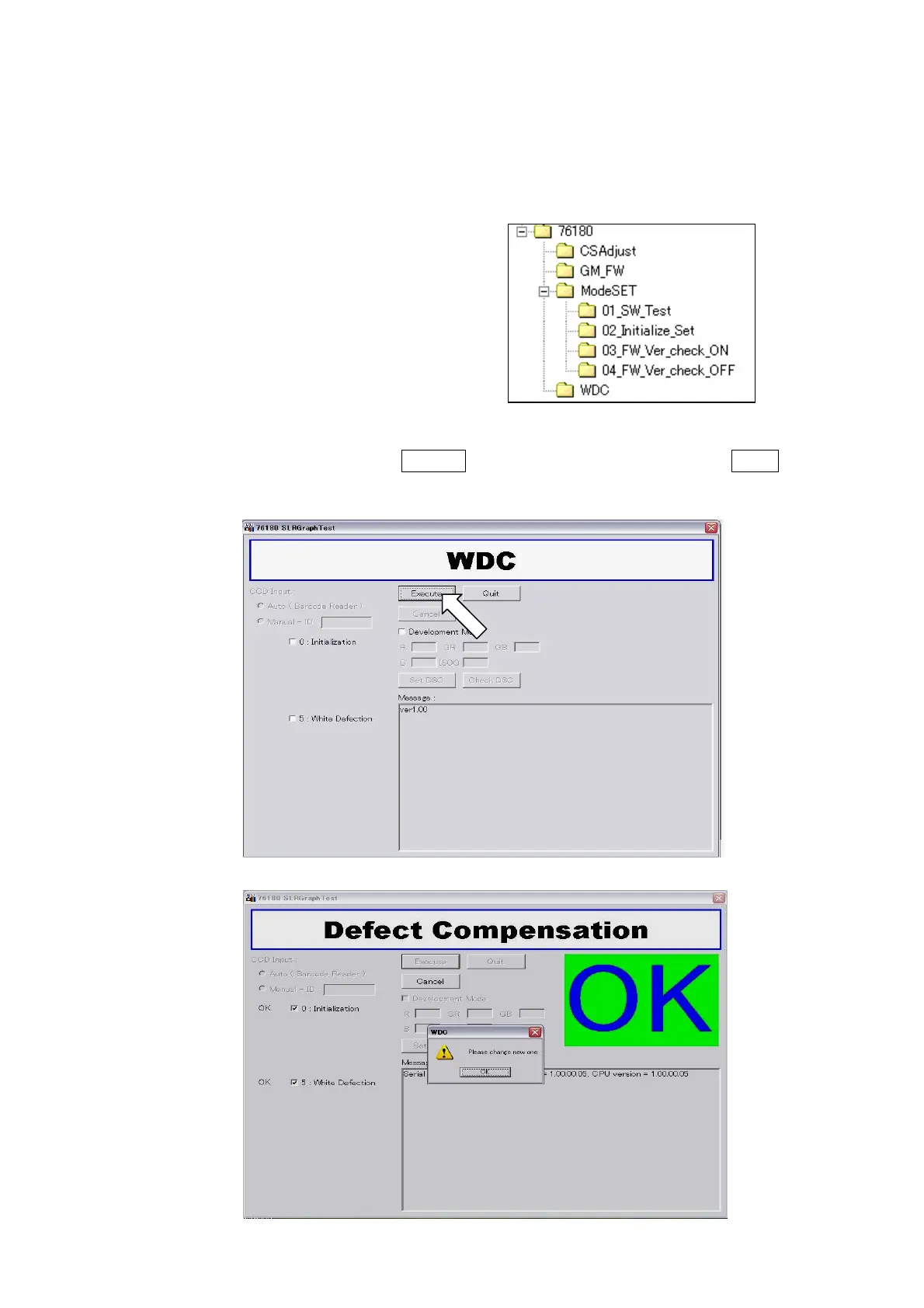

⑤ The following window will be displayed when the adjustment software is started.
⑥ Execute the adjustment by clicking Execute button in the dialog box or push Enter key on
the keyboard.
⑦ When the screen changes as follows, the adjustment is completed.
To Next Page
