Pentax ist D User Manual

76180 EM -65/73-

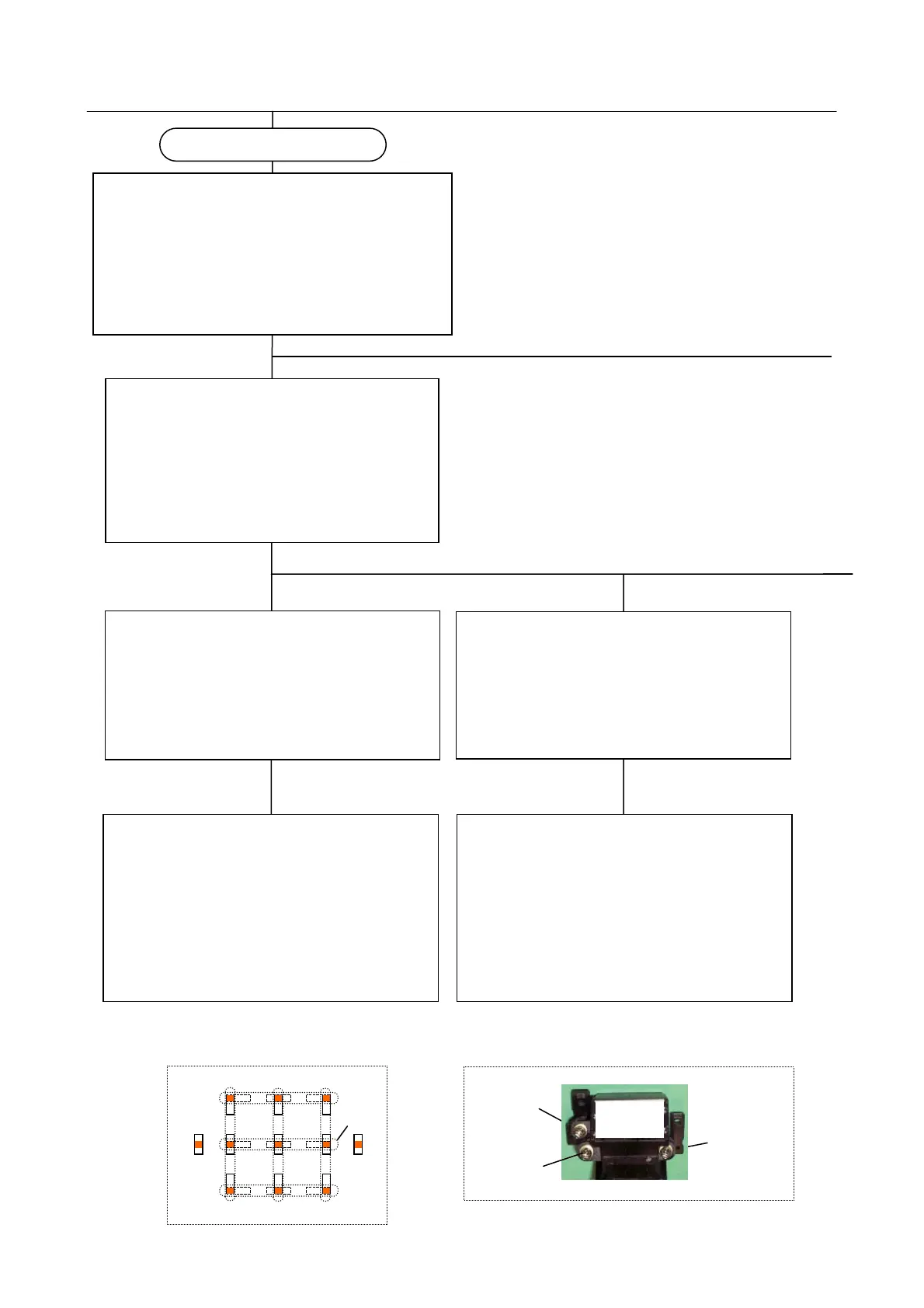

***** MAIN MENU *****
[ 1 ] CCD POSITION SQUARE ADJUSTMENTS [ 2 ] CCD POSITION CROSS ADJUSTMENTS
■Symbols of CCD position ■Position of Adjusting screws
***** CCD POSITION SQUARE ADJUSTMENTS *****
MOUNT CCD ADJUSTING TUBE (SQUARE) ONTO CAMERA.
SET LIGHT SOURCE TO LV 12.
SET FOCUS-MODE SW OF CAMERA TO MF.
AFTER CONFIRMING ABOVE, PRESS KEY [ Y ].
WHEN YOU RETURN TO FRONT MENU, PRESS KEY [ N ].
***** AF ADJUSTMENT MAIN MENU *****
CCD POSITION ADJUSTMENT ---> [ 1 ]
AGC LEVEL ADJUSTMENTS ---> [ 2 ]
MONITOR OFFSET ADJUSTMENT ---> [ 3 ]
UNIFORMITY ADJUSTMENT ---> [ 4 ]
SATURATED OUTPUT AND TEMP ADJUSTMENT ---> [ 5 ]
FOCUS ADJUSTMENT ---> [ 6 ]
MAIN MENU ---> [ 0 ]
***** CCD POSITION ADJUSTMENT MENU *****
CCD POSITION SQUARE ADJUSTMENTS ---> [ 1 ]
CCD POSITION CROSS ADJUSTMENTS ---> [ 2 ]
CCD POSITION CHECK ---> [ 3 ]
CCD FOCUS ADJUSTMENT ---> [ 4 ]
TO AF-MAIN-MENU ---> [ 0 ]
***** CCD POSITION ADJUSTMENTS *****
** CROSS **
HC -----: * :----- (SCREW 1)
VC -----: * :----- (SCREW 1)
JUST A MOMENT
***** CCD POSITION CROSS ADJUSTMENTS *****
MOUNT CCD ADJUSTING TUBE (CROSS) ONTO CAMERA.
SET LIGHT SOURCE TO LV 12.
SET FOCUS-MODE SW OF CAMERA TO MF.
AFTER CONFIRMING ABOVE, PRESS KEY [ Y ].
WHEN YOU RETURN TO FRONT MENU, PRESS KEY [ N ].
***** CCD POSITION ADJUSTMENTS *****
** SQUARE **
HD -----: * :----- (SCREW 3)
HC -----: * :----- (SCREW 3)
HU -----: * :----- (SCREW 3)
VR1 -----: * :----- (SCREW 1)
VC -----: * :----- (SCREW 1)
VR1 -----: * :----- (SCREW 1)
[
3
]
AF AND RELATED ADJUSTMENTS
HU
HC
HD
VL1 VC VR1
VL3
VR3
SCREW 1
SCREW 3
SCREW 2
0-M100
