76180 EM -7/73-

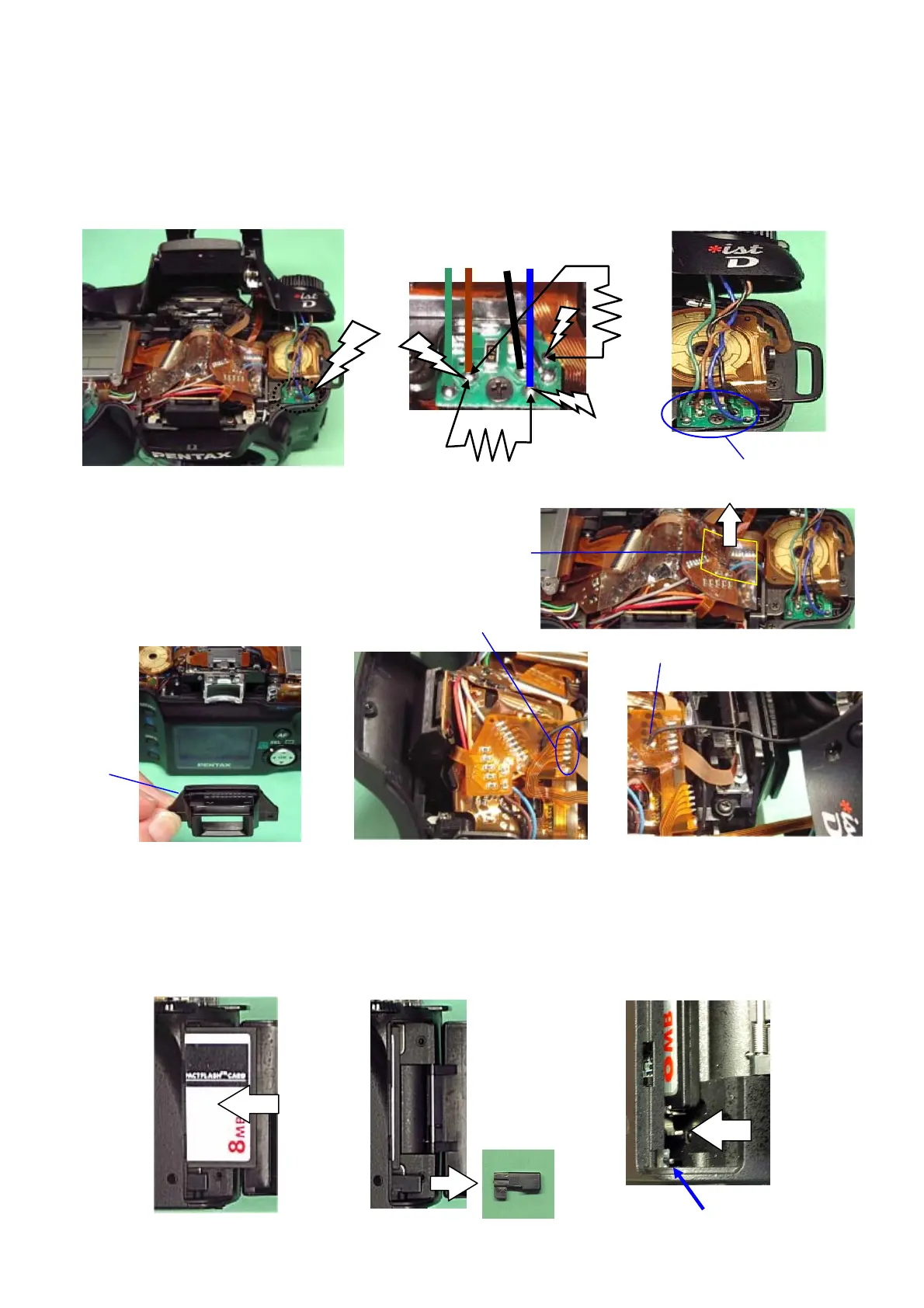

⑧ Lift up the top cover, and then discharge the main capacitor at the following positions.
-1. Between a brown lead wire and a blue lead wire.
[NOTE] If the above position is not available for discharging proceed as follows.
-2. Between a brown lead wire and a land behind a black wire as shown in the figure below.
[CAUTION] Be careful short and electric shock when handling the camera.
⑨ Unsolder 4 lead wires (Blue, Black, Brown, Green)･･･Q100
⑩ Peel off T72 (20x15).
⑪ Unsolder 6 lands.･･･ T51
⑫ Unsolder a black lead wire.･･･ A330
⑬ Remove the top cover (0-A301) from the main body.
⑭ M311･･･ DT
3. A201 (Back Cover)
① Insert the CF card to the camera to remove T691.
② T691･･･Pull out T691with care to prevent damage.
③ Remove the CF card with pressing the CF card eject lever.
[NOTE] Do not touch the CF card switch pin because it is very delicate part.
～1kΩ
⑧-2
⑧-1
⑨
⑭
⑪
⑫
①
②
③
Pin
⑩
To Next Page
