④ A62 x2 (Screw, 3.5mm)
⑤ A68 x2 (Screw (TY), 6mm)
⑥ A69 x2 (Screw (TY), 3.5mm)

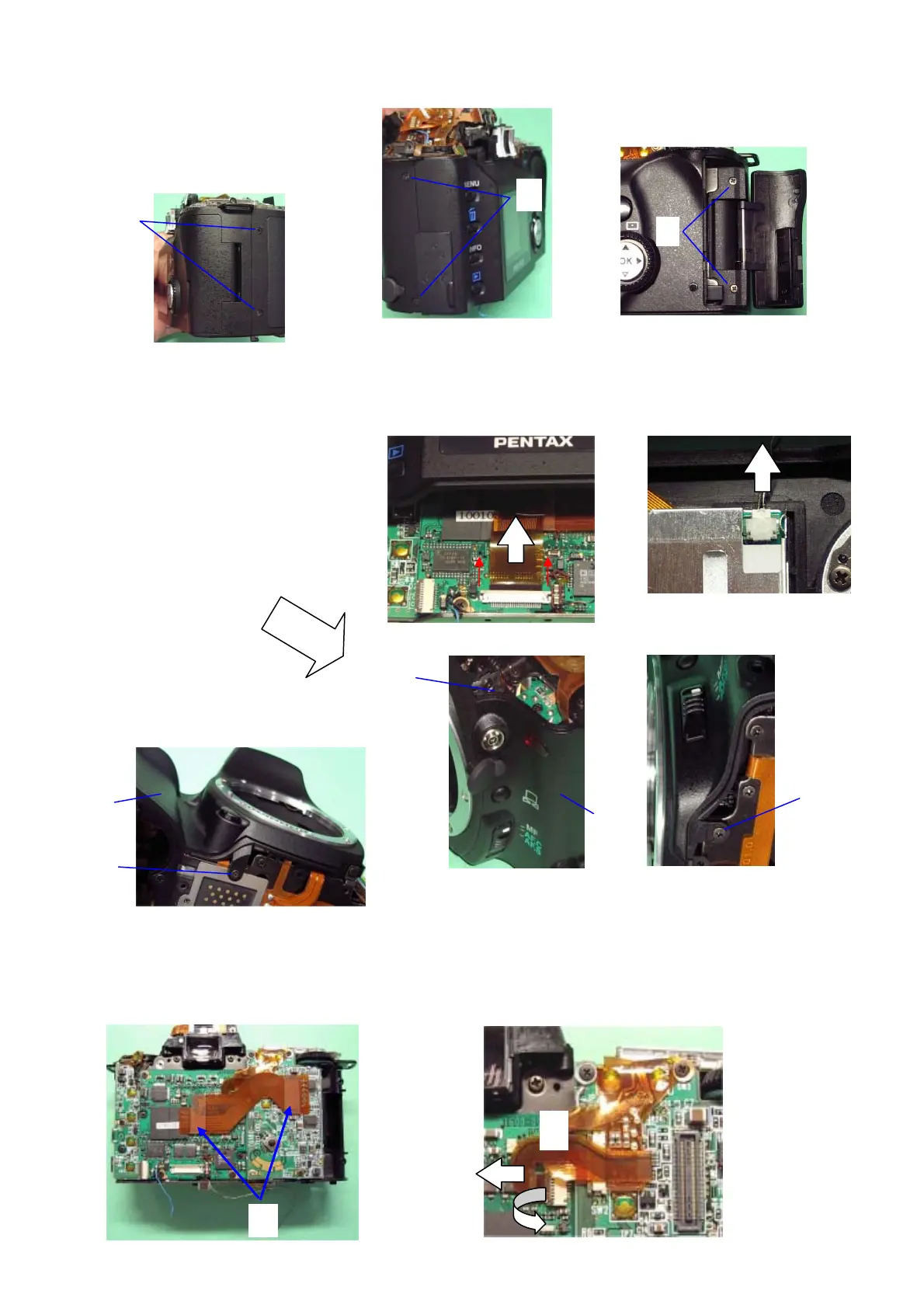

⑦ Lift up A201while opening the terminal cover.
⑧ Disconnect the flexible board of 0-O301from the connector terminal.
⑨ Disconnect the connector terminal of T905 from 0-O301by using the tweezers with care to
prevent damage.
⑩ A201
4. A153 (Front Cover, Left)
① CNL-D1.7x2.5 (2pcs.)
② A153
5. A102 (Front Cover)
① CNL-D1.7x3.0
② A102
6. 0-T700 (CF P.C. Board assy.)
① 0-T950･･･Disconnect both connector terminals of 0-T950 from 0-T600 and 0-T700.
② Disconnect the flexible board of T100 from the connector terminal of T600.
⑤
④
⑥
⑧
⑨
①
②
①
①
②
②
①
