76700 -57/94-

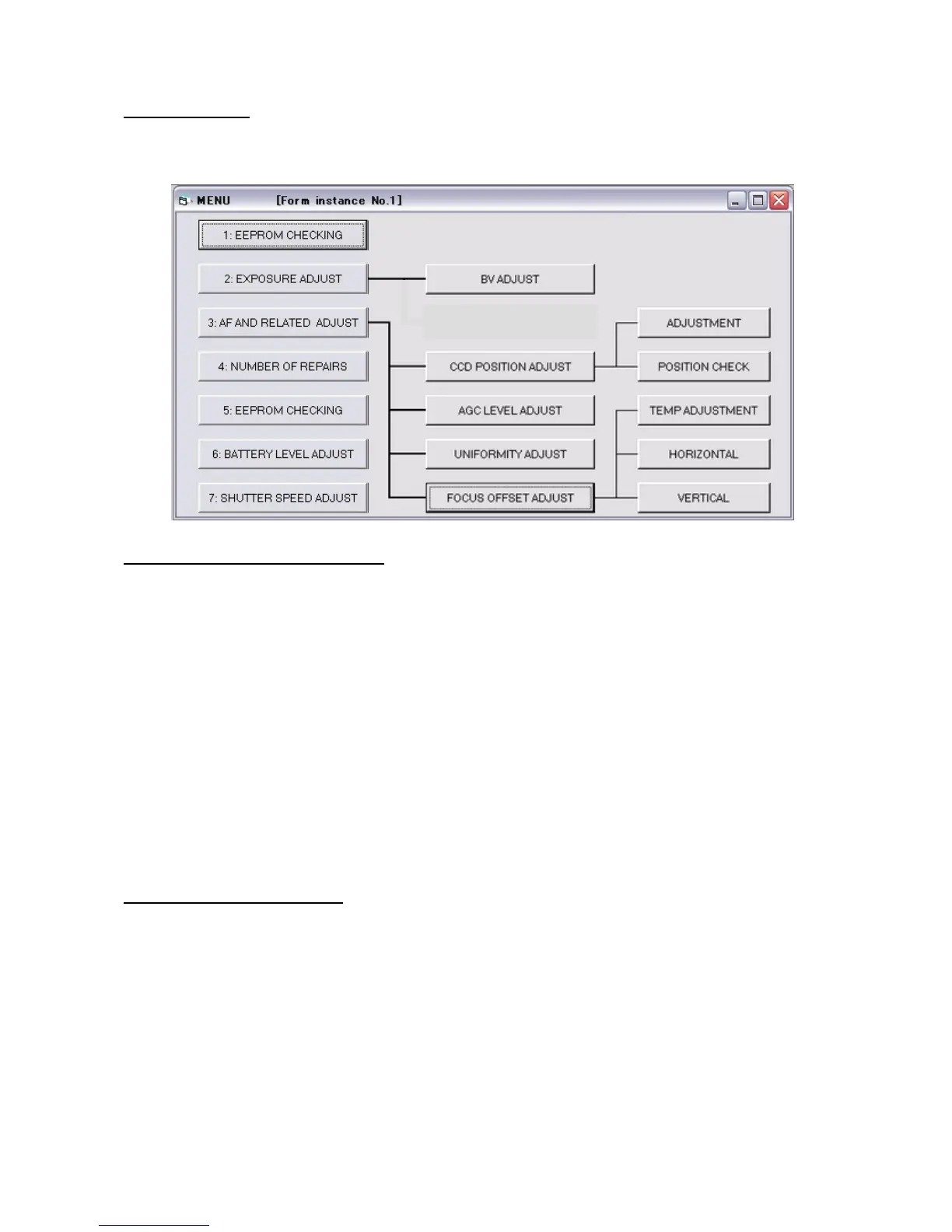

C．Menu screen
When click the each items, the detail will be displayed as follow.
21-4．Items for adjustment/Check
1：[Eeprom checking] Check the data
2：[Exposure adjust] Adjustment the exposure
[BV adjust] (brightness value) Adjustment of brightness value
3：[AF and related adjust] Adjustment of AF
[CCD position adjust] AF sensor position
[AGC level adjust] AGC level adjustment
[Uniformity adjust] Adjustment that equalizes output of AF sensor
[Focus offset adjust] Adjustment of AF focus
4：[Number of repairs] Recording the number of repair
5： Same as above 1
6：[Battery level adjust] Adjustment of battery level
7：[Shutter speed adjust] Adjustment of high shutter speed
21-5．Adjustment procedure
① Turn the power of the camera Off and then install AC adaptor
* Suggest installing battery to avoid the Power supply interception
② Connect the camera to the computer via USB cable
③ Turn the power of the camera ON and confirm that the camera is recognized by computer
④ Click [PDCAdj01.exe] in the EXE folder
⑤ Adjustment screen will be displayed
⑥ Click [Op] to start correspond
