76700 -64/94-

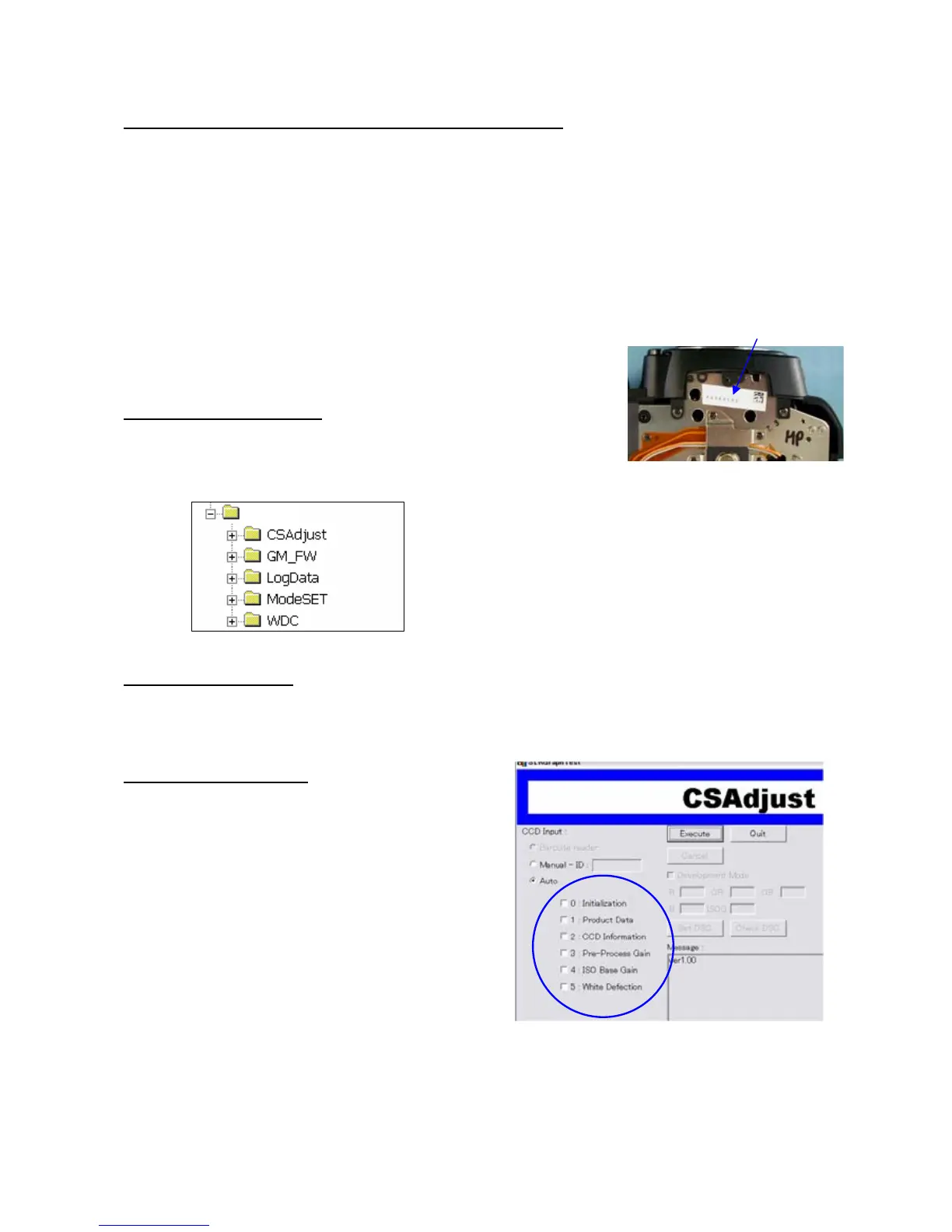

23 [ADJ] Adjustment with Programmed Software (Digital)
The adjustment method is the same as *istD series
[Required equipment]
Programmed software for 76700(Digital), Computer (Windows 2000 or XP with USB port equipped )
Light source (LB-3300: A light 2850 Kº±10, LV11.00), Master lens for 76180 (95901 D20), Diaphragm set
ring F8 (KA-0-1A), AC adaptor (D-AC10), USB cable (I-USB17), Dark curtain,
Color temperature tester (for calibration), LV meter (for calibration)
[CAUTION] The adjustment software is created based on the data of individual master lens. Therefore, use
the same master lens as the ID number printed on CD to adjust it accurately.
* Confirm CCD ID No when replace T100 or C000.
23-1. Setting the computer
(1) Copy the folder『76700』from the CD-ROM into the Computer.
*Log data will be created automatically whenever the camera is adjusted.
23-2. Setting of K100D
(1) Attach the master lens 76180 and Diaphragm set ring F8 to the camera.
(2) Set mode dial to [M].
23-3. Item of adjustment
0: [Initialization]
1: [Product Data] Setting product information
2: [CCD Information] Setting CCD information
3: [Pre-Process Gain] Pre-process gain adjustment
4: [ISO Base Gain] ISO base Gain adjustment
5: [White Defection] Compensate dead pixels on
CCD (White), refer to the 22-5
