7Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
Introduction

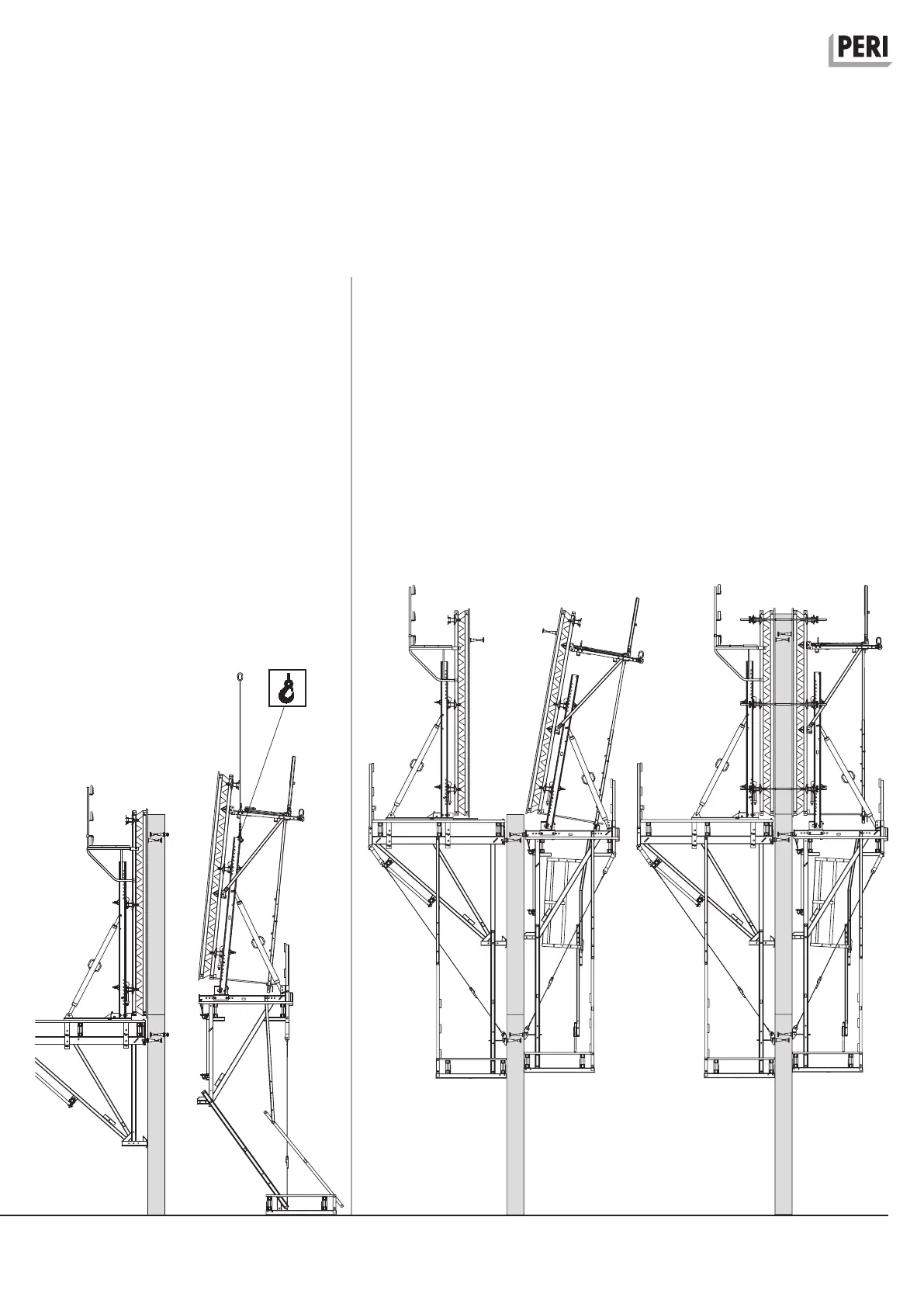

28. Remove advancing bolts and retract
formwork.
29. Mount scaffold mounting rings.
30. Remove climbing cones from previ-
ous wall section.
31. Move Climbing Formwork to next
wall section.
Continue with standard cycle.
32. Dismantle Climbing Formwork.
18. Attach finishing platform.
19. Move Climbing Formwork to second
wall section.
20. Bolt on finishing platform and attach
guardrails.
21. If necessary, mount ladder.
Standard cycle
22. Mount wind bracing if required.
23. Clean formwork and adjust.
24. Install reinforcement to wall.
25. Mount leading anchor and close
formwork.
26. Place formwork anchor.
27 Pour wall section.
