Peri CB 160 - Assembly of Console Bracket CB 160

9Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
A1 Assembly of the CB 160 platforms
Assembly of Console
Bracket CB 160
Assembly
1. Check centre-to-centre spacing if re-
garding the planned measurement, or
measure spacing of climbing cones
already cast in concrete.
2. Adjust centre-to-centre spacing of
brackets to the support (0.2).
(Fig. A1.04)
3. Fix locating blocks (0.1).
(Fig. A1.05)
For spacings see (Fig. A1.02)
4. Lift first bracket (1.1) vertically
into the stops and then align.
5. Fix together with the diagonal
bracing (0.5).
(Fig. A1.06)
6. Lift in second bracket and align using
bracket spacing gauge (0.4).
Fix gauge using screw clamps. Check
bracket spacing.
(Fig. A1.06)
7. Fix two scaffold tubes (11.1) to screw
couplings (1.3) in a parallel position to
provide support.
8. Brace with diagonal scaffold tube
(11.2) and two swivel couplings (11.3).
(Fig. A1.07)
The bracket axes form a right-angle
to the stops and support.
The scaffold tubes should project at
least 100 mm from the couplings.
The brackets are now aligned.

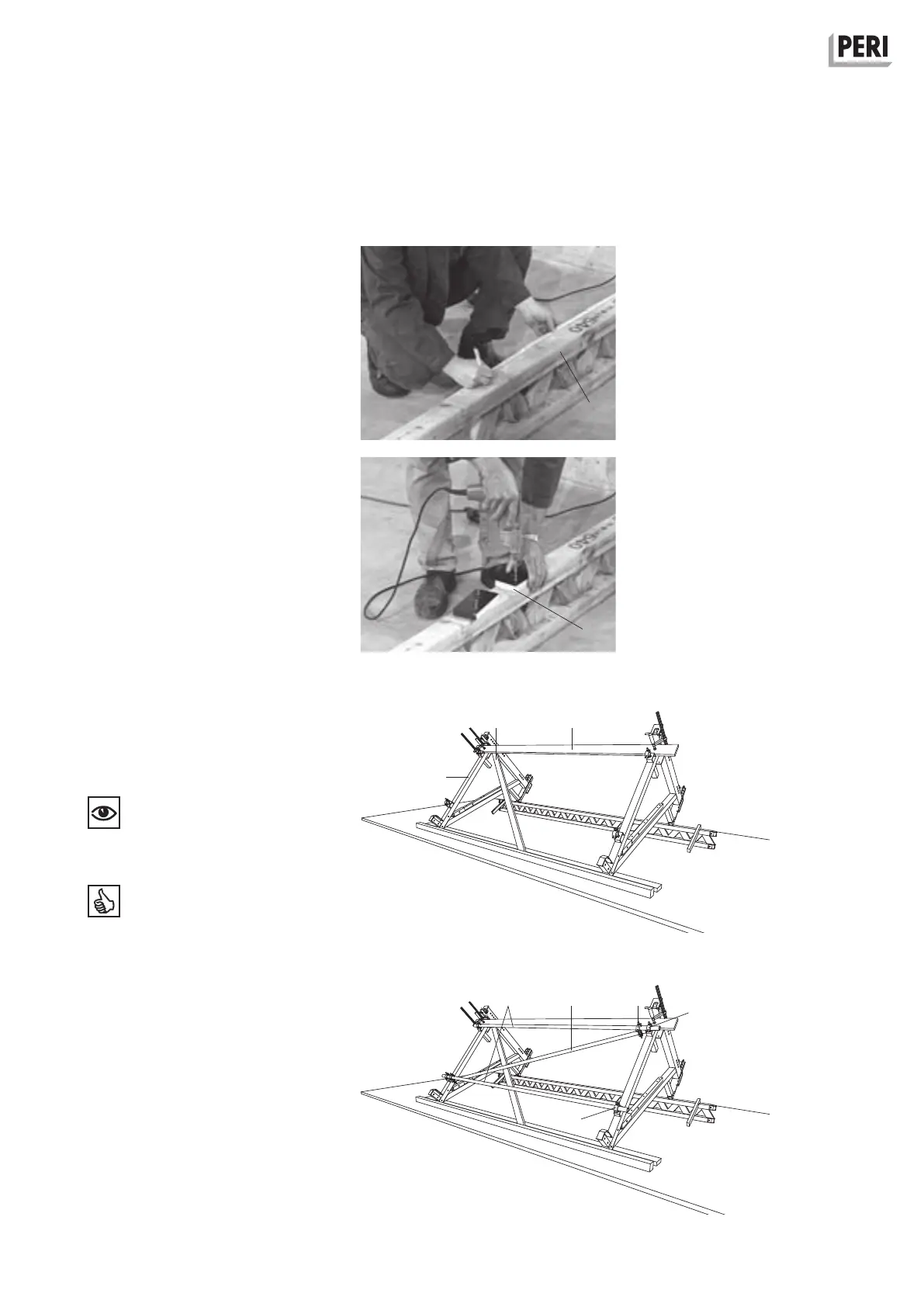

Fig. A1.04
Fig. A1.05
Fig. A1.06
Fig. A1.07
11.311.211.1
1.3
1.3
0.40.5
1.1
0.2
0.1
