Peri CB 160 - Assembly of Guardrails

14 Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
A1 Assembly of the CB 160 Platforms
Assembly of guardrails
Guardrail Post CB
1. Cut handrail boards (12.1) to match
platform width.
2. Attach handrail boards to guardrail
post with screw clamps. Height:
depends on decking design.
(Fig. A1.19a + A1.19b)
3. Fix handrail boards (12.1) with two
round head bolts M8 x 100 (12.5).
Pre-drill boards!
4. Depending on the design of the deck-
ing, fix Toe Board (12.2) to the guard-
rail posts by means of F. H. Bolts
M8x 100 (12.5) (Fig. A1.19b) or fix to
the support bracket with Torx 6 x 40
(12.10). (Fig. A1.19a)
– If no guardrail has been included in
the planning, this can be determined
from C1 Handrails and Guardrails.
– With larger cantilevers of the guard-
rail boards, the ends are to be con-
nected with a vertically-positioned
plank.
Handrail boards flush with the planking.

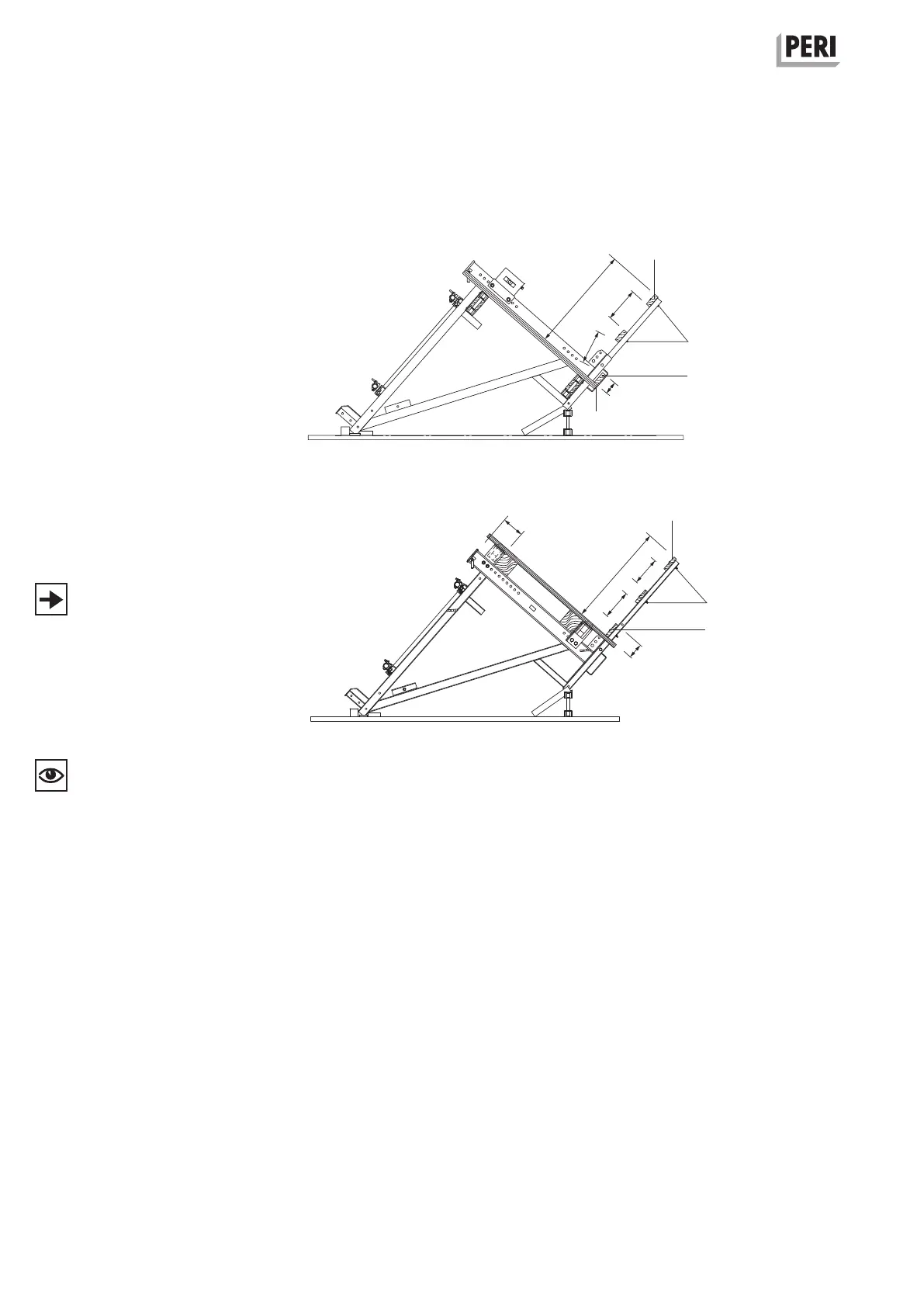

Fig. A1.19a
12.1
12.5
1.8
12.2
12.10
12.1
12.5
12.2
12.5
Fig. A1.19b
1.0 m
max. 47
max. 47
min. 15
1.025 m
max. 47
min. 15
x ≥ 23 cm
max. 47
