Peri CB 160 - Handrails and Guardrails

55
d/b [mm]
40/120
≤ 3.07 0.91 ≤ 3.56
≤ 2.21 0.85 ≤ 2.21
30/150
≤ 2.16 0.73 ≤ 2.66
≤ 1.81 0.73 ≤ 1.81

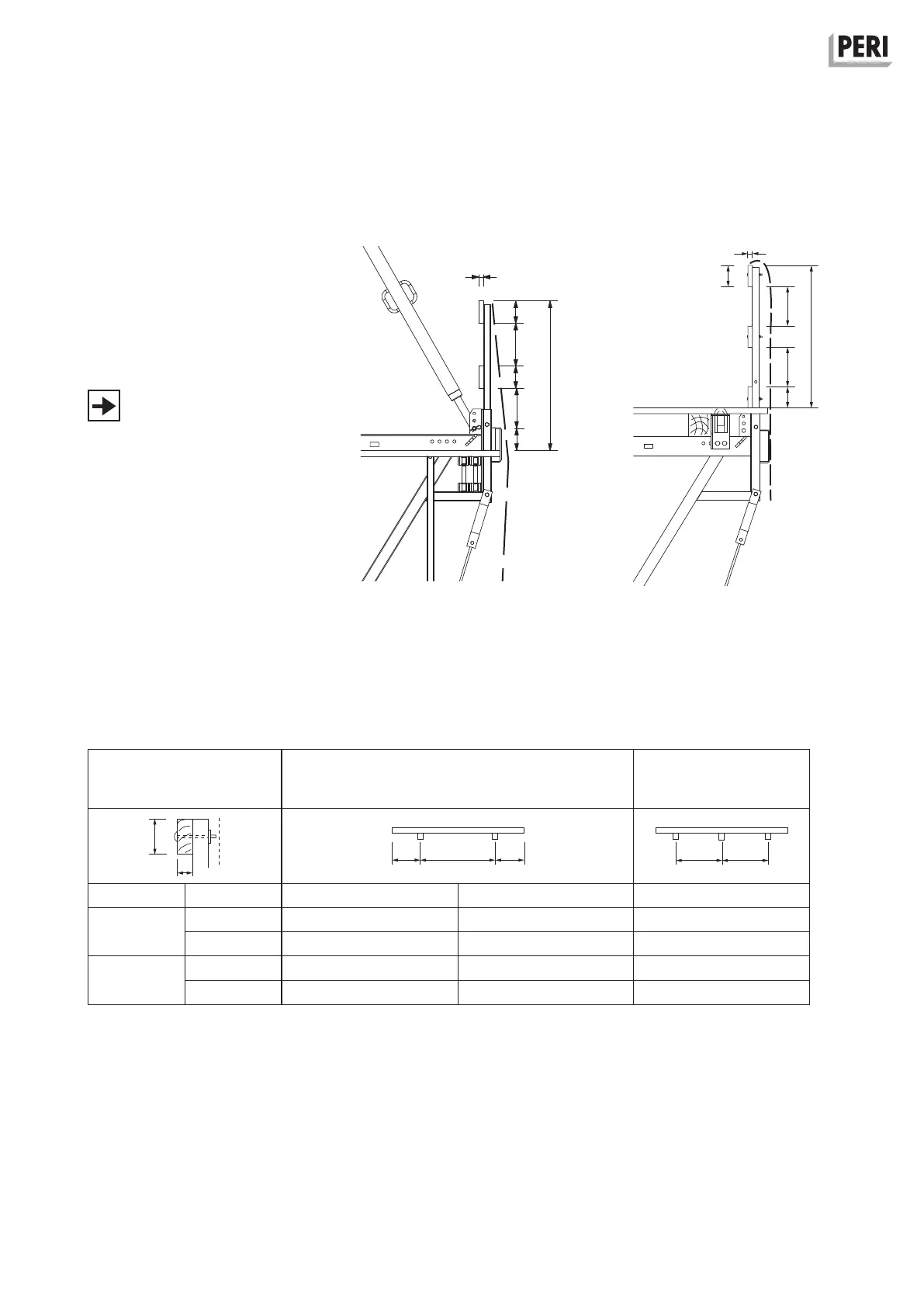

Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
C1 Planning and work preparation
Handrails and guardrails
On all platform levels, edges are to be
protected with guardrails. In order to
maintain permissible spans and cantile-
vers, additional guardrail posts can also
be mounted, see Table 4.
In accordance with BGI 778, working
areas positioned at great heights are to
be secured through safety nets.
Standard assembly
(Fig. C1.04a)
Working scaffold
(Fig. C1.04b)
Table 4
Permissible spans of
handrail boards
Fig. C1.04a Fig. C1.04b
Case 2:
2 x guardrail posts
+ projection
Case 2:
3 or more
guardrail posts
Dimensions of
handrail boards
Net* perm. A
1
[m] perm. C [m] perm. A
2
[m]
without
with
without
with
d
b
CCA
1
A
2
A
2
bb
≥ 1.0 m
≤ 47 cm
≤ 47 cm
≥
15
d
* net with 50 % wind permeability
≥ 1,0 m
≤ 47 cm
≤ 47 cm
≥
15
b
d
