Instructions for Assembly and Use – Standard Configuration
Assembly of decking
Climbing Platform, Working Platform
Assembly
1. Cut planking at right angles. Length
according to decking requirements.
(Fig. A1.17 + A1.18)
2. At platform ends, fix each plank flush
to the girders (13.1 / 13.6). Planking is
flush with bracket front edge on the
wall side.
Mounting: Torx TSS 6 x 80 (13.5)
2 x per girder support.
Alternatively: nails 38 x 100.
3. For accurate positioning, use plumb
line.
4. Fix remaining planking.
5. Cut out for securing bolt (1.5).
(Fig. A1.17a)
– If no girders have been included in
the planning, they can be determined
from C1 platform deckings.
– For girders positioned above, dimen-
sion x of the planning is to be used.
The decking can be pre-assembled
with girders placed in position and
then fixed.
– For operating the securing bolts (1.5)
from above, a spacing of x ≥ 23 cm is
required.
– Decking made of other materials
must be sized to the same dimen-
sions and then fixed.
– The installation of the hinged hatches
is described in A2 assembly of hinged
hatch cover.
– Gaps in the decking ≤ 2 cm.

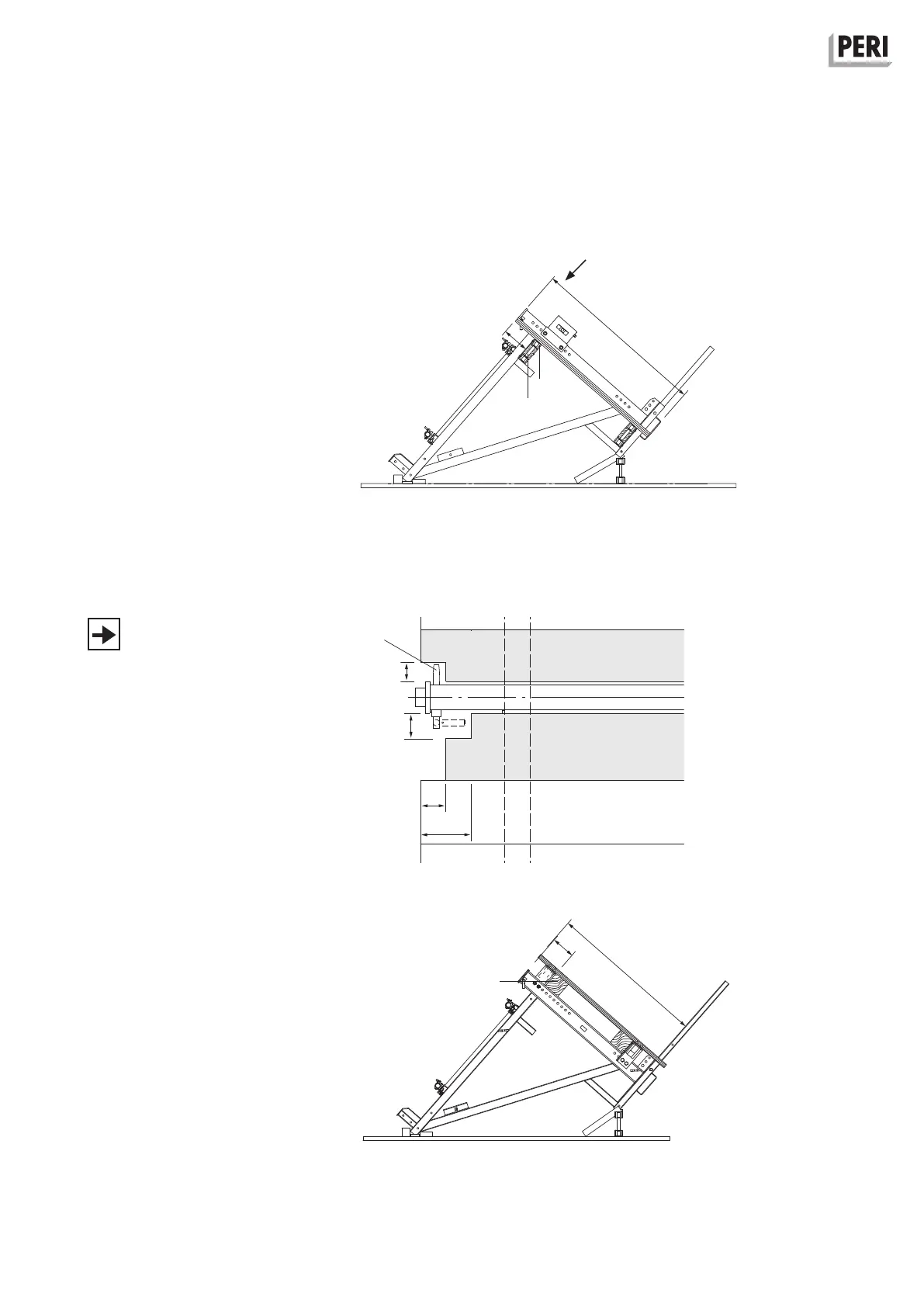

Fig. A1.17
Fig. A1.17a
Fig. A1.18
13.1
13.5
13.6
13.5
1.5
80
60
80
160
1.636
1.521
View A
25
A
