18 Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
A2 Other assembly work
Assembly of finishing
platform
Platform girders
1. Lay CB platform beam (8.1) parallel in
the bracket spacing on the assembly
floor.
2. Place girder (13.1) and secure in
position, see A1.

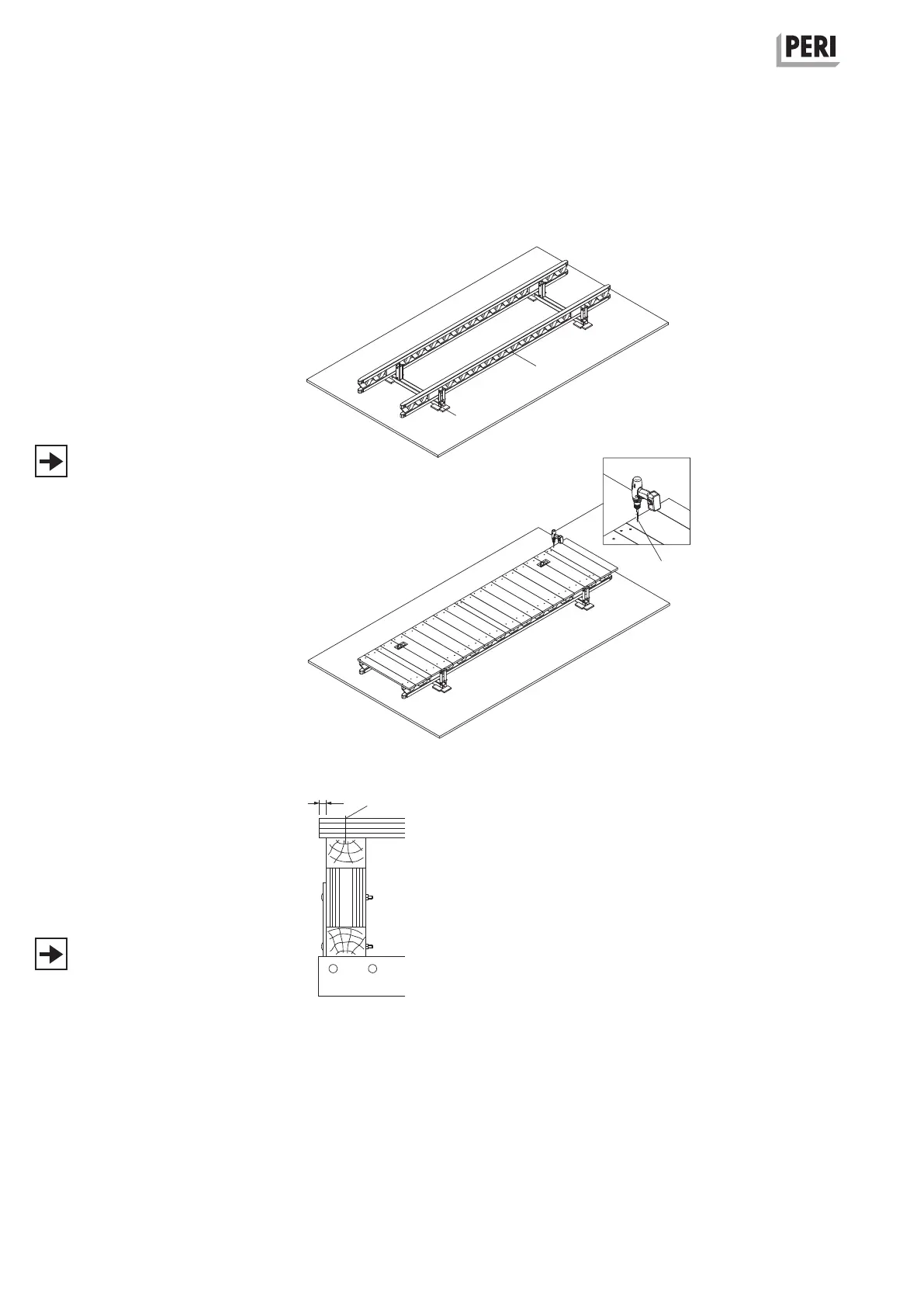

(Fig. A2.05)
– If no girders have been included in
the planning, they can be selected in
Part C1 platform deckings.
– When using PERI GT 24 girders, they
are to be strengthened on both sides
at the level of the platform beams
with 3S sheets, see A1.
Assembly of decking
1. Cut planking to length. L = 1.170 m.
2. Fix planking at both platform ends
flush to girders, see A1.
Projecting length: 14 mm over girder
on the wall side.
(Fig. A2.06a)
Mounting: Torx TSS 6 x 80 (13.5)
2 x per girder.
Alternatively: nails 38 x 100
3. For accurate positioning, use
plumb line.
4. Fix remaining planking.
(Fig. A2.06)
If no platform decking has been includ-
ed in the planning, the planking can be
selected in Part C1 platform deckings.
13.5
Fig. A2.06a
14 mm
Fig. A2.05
Fig. A2.06
13.1
13.5
8.1
