46 Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B3 Formwork Utilisation

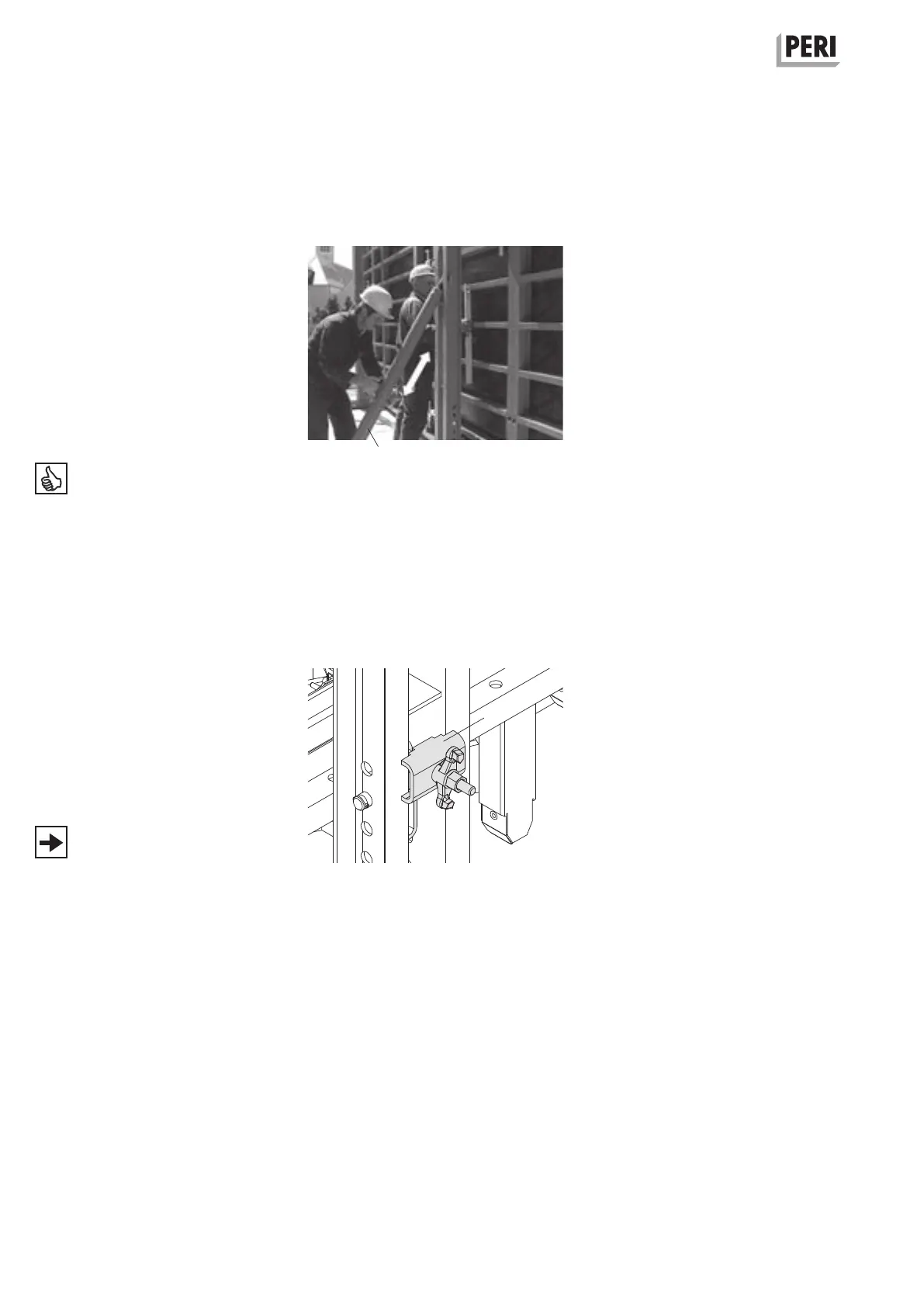

Formwork alignment
Inclination adjustment with the
Adjustable Brace CB 164-224
The required inclination of the form-
work is achieved by altering the Adjust-
able Brace CB 164-225 (3.1).
Depending on the rotational direction,
the formwork moves forward or re-
tracts.
(Fig. B3.08)
By placing a spirit level on the TRIO
formwork struts or on a VARIO formwork
girder, exact adjustment is possible.
(Fig. B3.08)
Horizontal movement of a VARIO ele-
ment with waler fixation
1. Loosen the Waler Fixation (4.4) until
the element can be moved.
2. Move the element into the correct
position by hand or by using a piece
of timber as a lever.
3. Tighten waler fixation.
(Fig. B3.09)
Strongbacks must remain in the same
position.
Fig. B3.08
Fig. B3.09
3.1
4.4
