1 Instructions for Assembly and Use – Standard Configuration
Introduction
CB 160 Climbing Formwork
Overview, Main Components

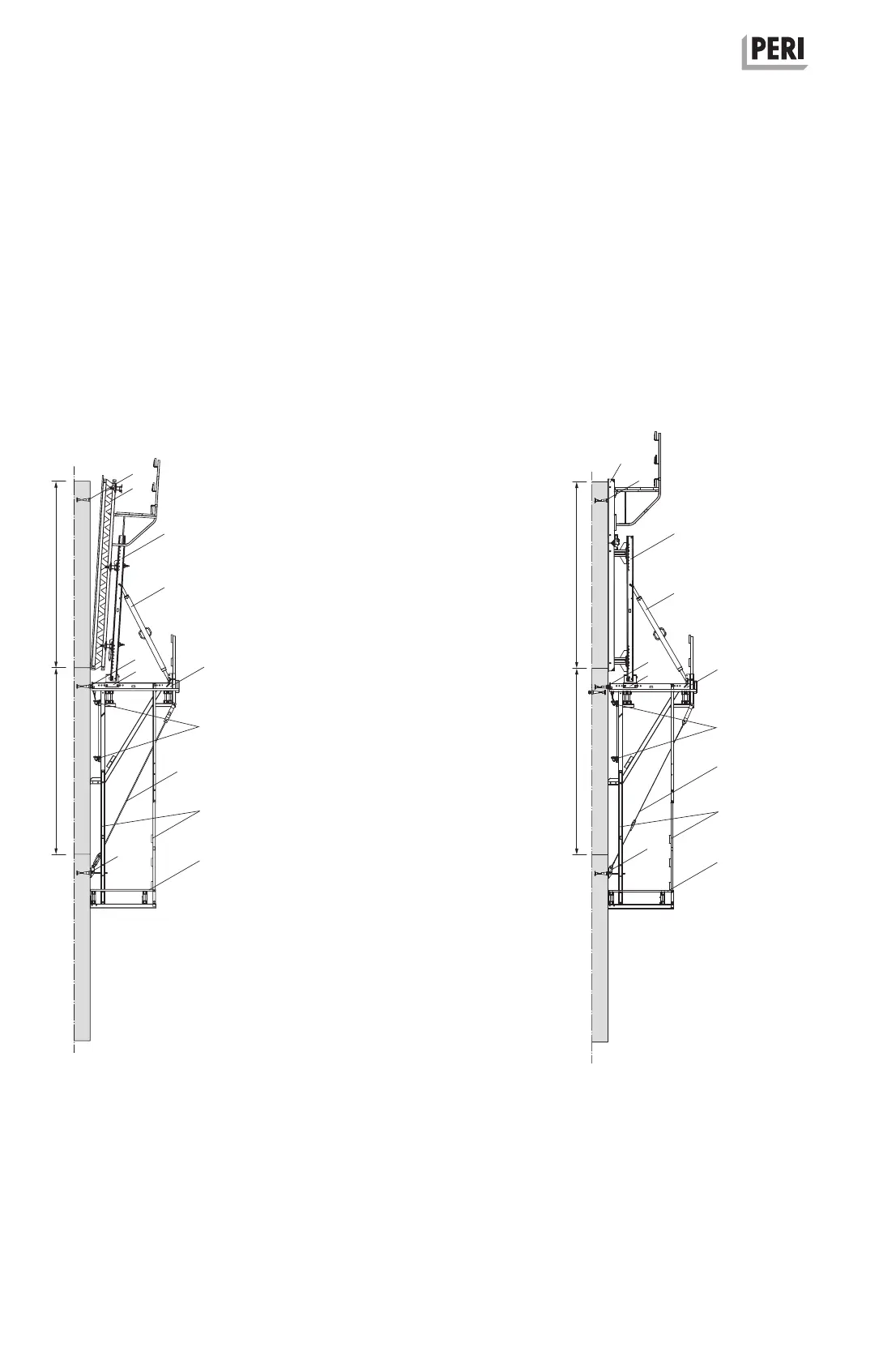

Climbing Formwork CB 160
with VARIO GT 24 girder wall
formwork
– concreting height 3.60 m
– extended suspension of finishing
platform
– Tension Anchor with Tie Rod
DW 15 as wind bracing
Climbing Formwork CB 160
with TRIO panel formwork
– concreting height 3.60 m
– extended suspension of finishing
platform
– Tension Belt as wind bracing
*Formwork height = concreting height + formwork projection (max. 5.40 m)
*Formwork height h
s
Concreting height
*Formwork height h
s
Concreting height
Concreting platform
Concreting
platform
Working platform Working platform
Finishing platform
Finishing platform
5
10
4
3
2
5
1
11
6
8
7
9
5
10
3
2
8
1
11
7
6
9
5
4
1 Working platform with Climbing
Bracket CB 160
2 Adjusting Unit CB 160
3 Adjustable Brace CB 164-224
4 Strongback CB 270 or CB 380
5 Anchoring and Leading Anchor
6 Bracing Shoe Wall CB M 24
7 Wind bracing with tension belt
or tie rod
8 Finishing Platform with Platform
Beam CB
9 Suspension of finishing platform
10 VARIO GT 24 or TRIO formwork
with concreting scaffold
11 Bracing with scaffold tubes
