Peri CB 160 - A2 Other assembly work; Assembly of End Guardrail Posts

16 Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
A2 Other assembly work

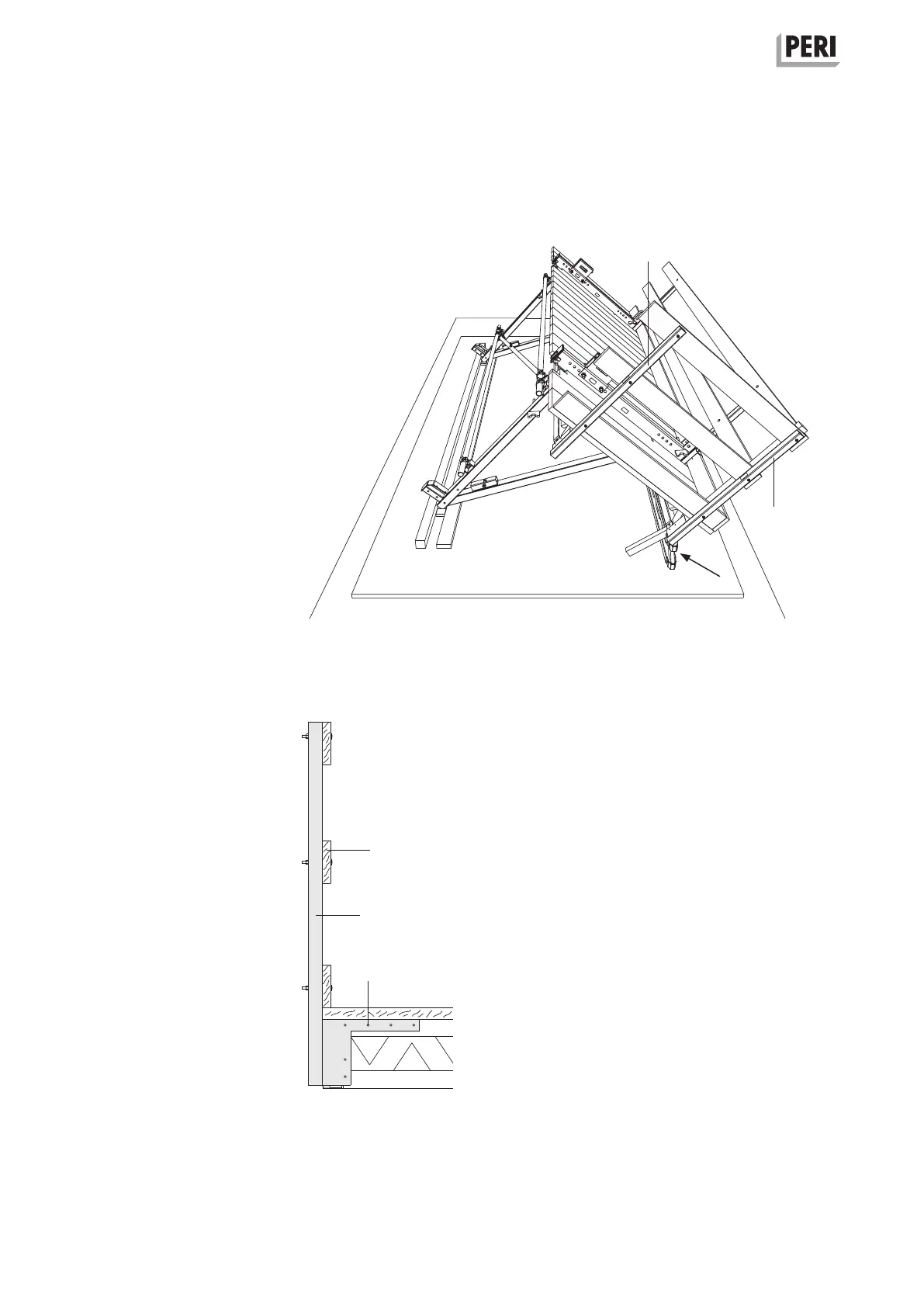

Fig. A2.01
Assembly of
end guardrail posts
Required materials:
– 2 end guardrail posts
– 2 handrail boards 4 x 12 cm
– 1 toe board 4 x 12 cm
Assembly
1. Fix end guardrail post (12.4) to girders
with wood screws 6 x 80 (5x) (12.8).
2. Fix handrail boards and toe board
with F. H. Bolts M 8 x 100 (12.5).
(Fig. A2.01 + A2.01a)
12.4
12.4
Fig. A2.01a
A
View A
12.8
12.4
12.5
