15Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
A1 Assembly of the CB 160 Platforms
Assembly of guardrails
End Guardrail Post
For longer cantilevers, it is necessary to
additionally support the handrail boards
with one or more end guardrail posts.
1. Mark the outside edge of the end
guardrail post (12.3) on the handrail
boards (12.1 + 12.2).
2. Align end guardrail post and fix to
girder (13.1) with screw clamp.
3. Use wood screws (6x) 6 x 80 (12.8)
for fixing to girder.
4. Mount the pre-drilled handrail boards
using F. H. Bolts M 8x 125 (12.5) on
fillers.

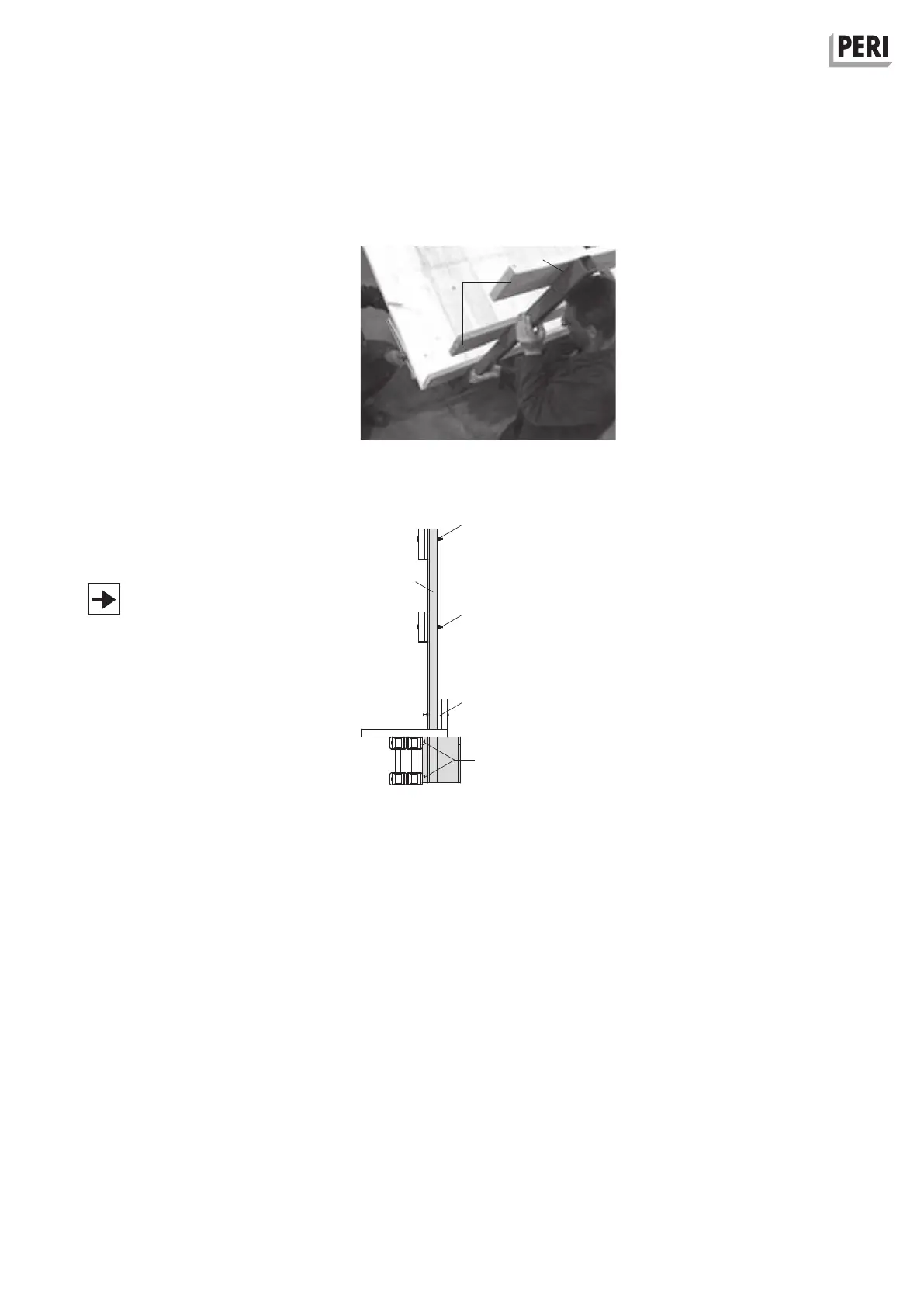

(Fig. A1.20a + A1.20b)
If no span is specified in the planning,
this can be determined from Part C1
Handrails and Guardrails.
Fig. A1.20a
12.1
12.3
Fig. A1.20b
12.3
12.5
12.5
12.5
12.8
