48 Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B4 Moving the units
Moving procedure
Use a guide rope to ensure con-
trolled movements of the platform
when being moved.
Any open edges created during the
climbing procedure are to be made
safe or cordoned off.
Loose components are to be secured
or removed before moving takes
place.
1. Crane lifts the climbing unit out of the
Scaffold Mounting Ring (5.6a).
2. Crane lifts the climbing unit up to the
next Scaffold Mounting Ring (5.6b).
3. Bring platform into position.
4. Lower climbing unit onto Scaffold
Mounting Ring (5.6b) evenly and hori-
zontally till the lower point of pressure
(1.7) of the bracket rests against the
wall. Lifting gear remains tensioned.

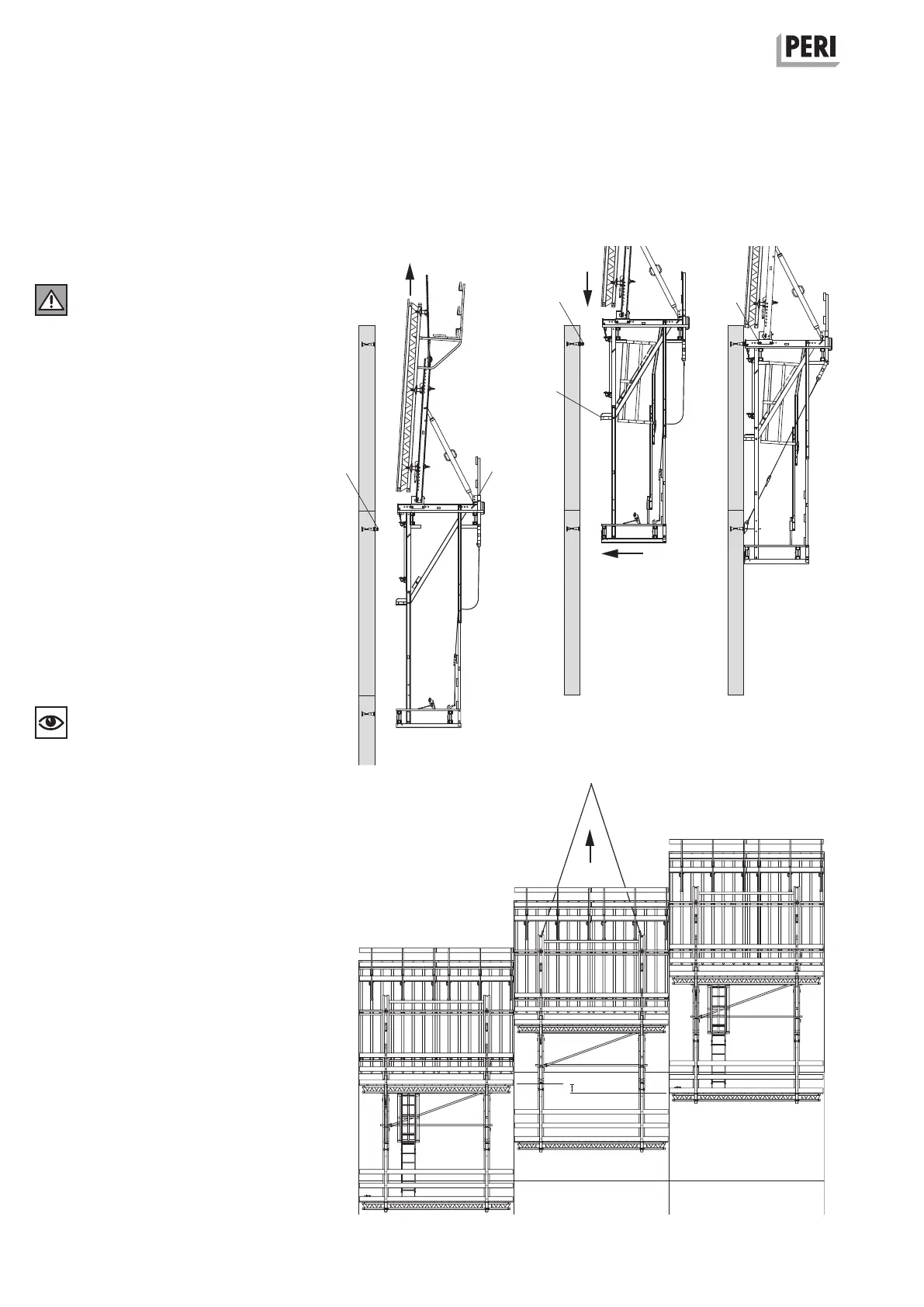

(Fig. B4.02a – B4.02d)
Do the brackets (1.1) hang in both
scaffold mounting rings M24 (5.6)?
Troubleshooting
– If no connection is made with the
scaffold mounting rings (5.6) or if the
brackets (1.1) jam, lift the platform
and lower it again.
– If the bracket spacing does not match
that of the scaffold mounting rings,
check the distance of the leading an-
chor to the formwork.
– If the mounting procedure is not pos-
sible, the bracket spacing must be
corrected through the re-assembly of
the platform.
Fig. B4.02a Fig. B4.02b
Fig. B4.02c
≤ 1.0 m
Fig. B4.02d
5.6a 1.4
5.6b
1.7
1.1
