Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B1 Work on the construction site

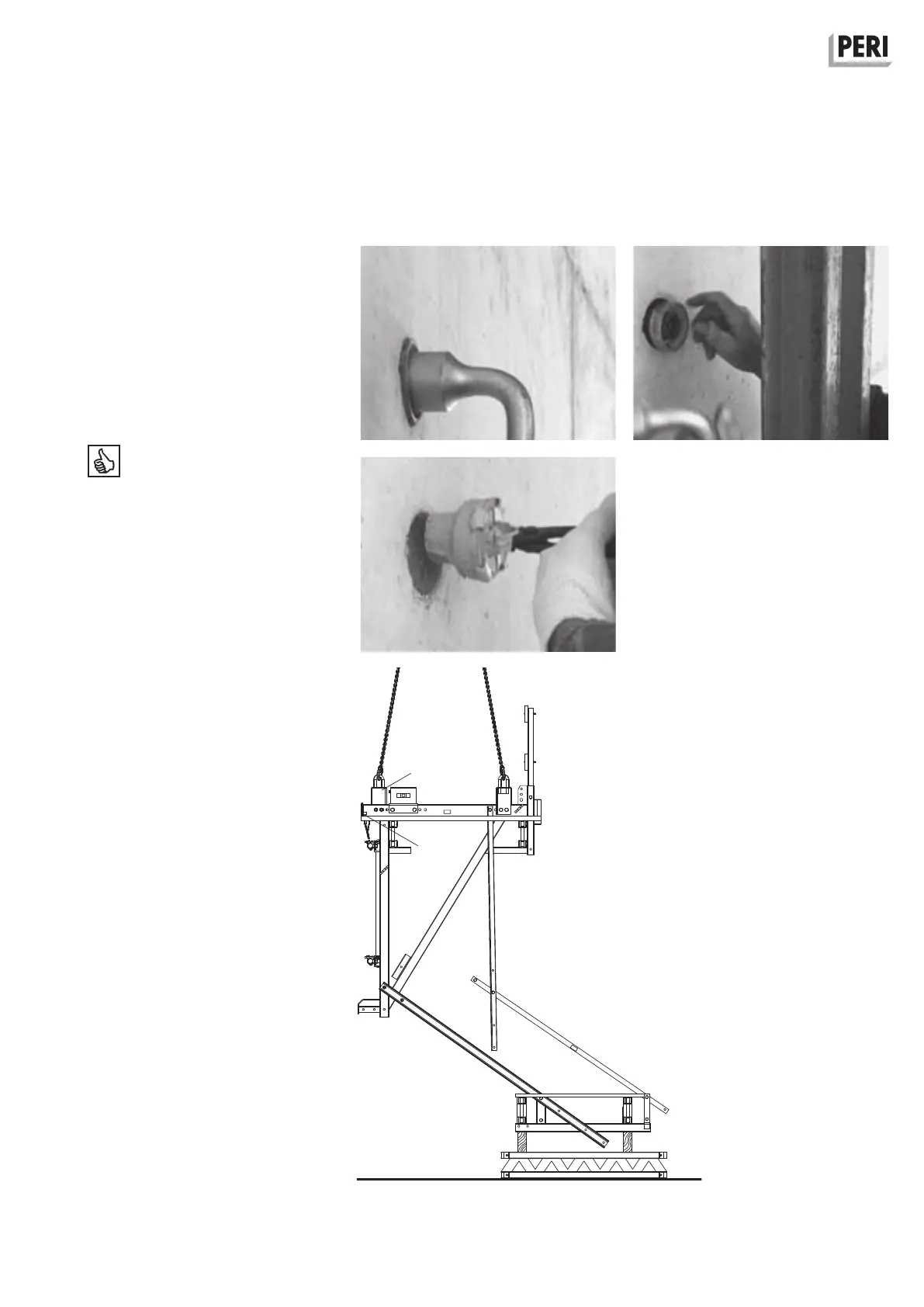

Removal of the climbing
cones
Assembly
1. Remove Scaffold Mounting Ring M24
or wind bracing.
2. Loosen cone using Socket Wrench
SW 36. (Fig. B1.35a)
3. Unscrew cone by hand.
(Fig. B1.35b)
For architectural concrete or gas/water
impermeability of the wall, the cone
hole can be closed with PERI Sealing
Cones KK.
See PERI Tie Technology or contact your
PERI sales engineer.
(Fig. B1.35c)
Fig. B1.36
Dismantling
Disassembly
1. Dismantle formwork.
2. Attach 4-sling lifting gear to the plat-
form mountings (1.4).
3. Remove safety bolts (1.5).
4. Lift working platform out of anchoring
and disassemble finishing platform.
(Fig. B1.36)
5. Set down working platform on
assembly area and dismantle.
6. Remove anchors from building
ensuring that personnel are always
ina safe working position.
Fig. B1.35a
Fig. B1.35b
Fig. B1.35c
