19Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
A2 Other assembly work
Assembly of
finishing platform
Assembly in the area of the
platform girder
– The planking is divided along the mid-
dle of the platform girder (8.1).
– The planking (8.3) to the side of the
platform post (9.1) is complete!
– The planking is only tacked on! It
must be removed when the finishing
platform is mounted.
– A cut-out is made in the area around
the platform post. Provide for a cir-
cumferential 10 mm slit.
– The planking width in the compensa-
tion area is ≥ 100 mm!

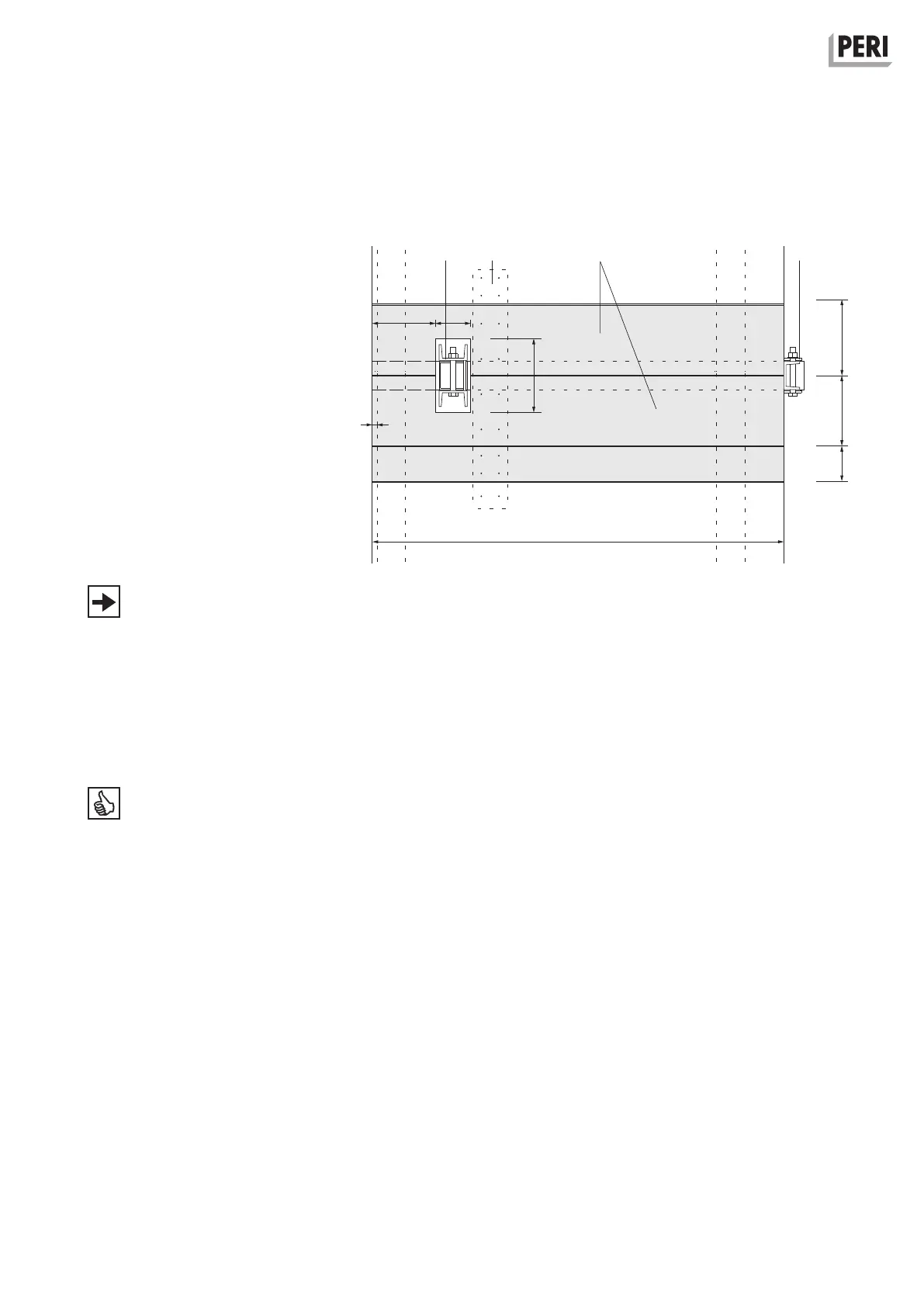

(Fig. A2.07)
Additional support (8.2) is screwed on
under the planking.
Finishing tasks
– Mark the platform according to
planning instructions e.g. with colour
spray.
We recommend attaching a platform
description, see C1 Drawings and
Plans.
1.17 m
14 mm
180 mm
210 m
≥ 100 max. max.
Planking width
9.1 8.2 9.3 8.1
Fig. A2.07
100 mm
