Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B1 Work on the construction site
Anchoring
Assembly of the leading anchor
with Anchor Positioning Stud M24,
e.g. for TRIO panel formwork.
Initial use and standard use

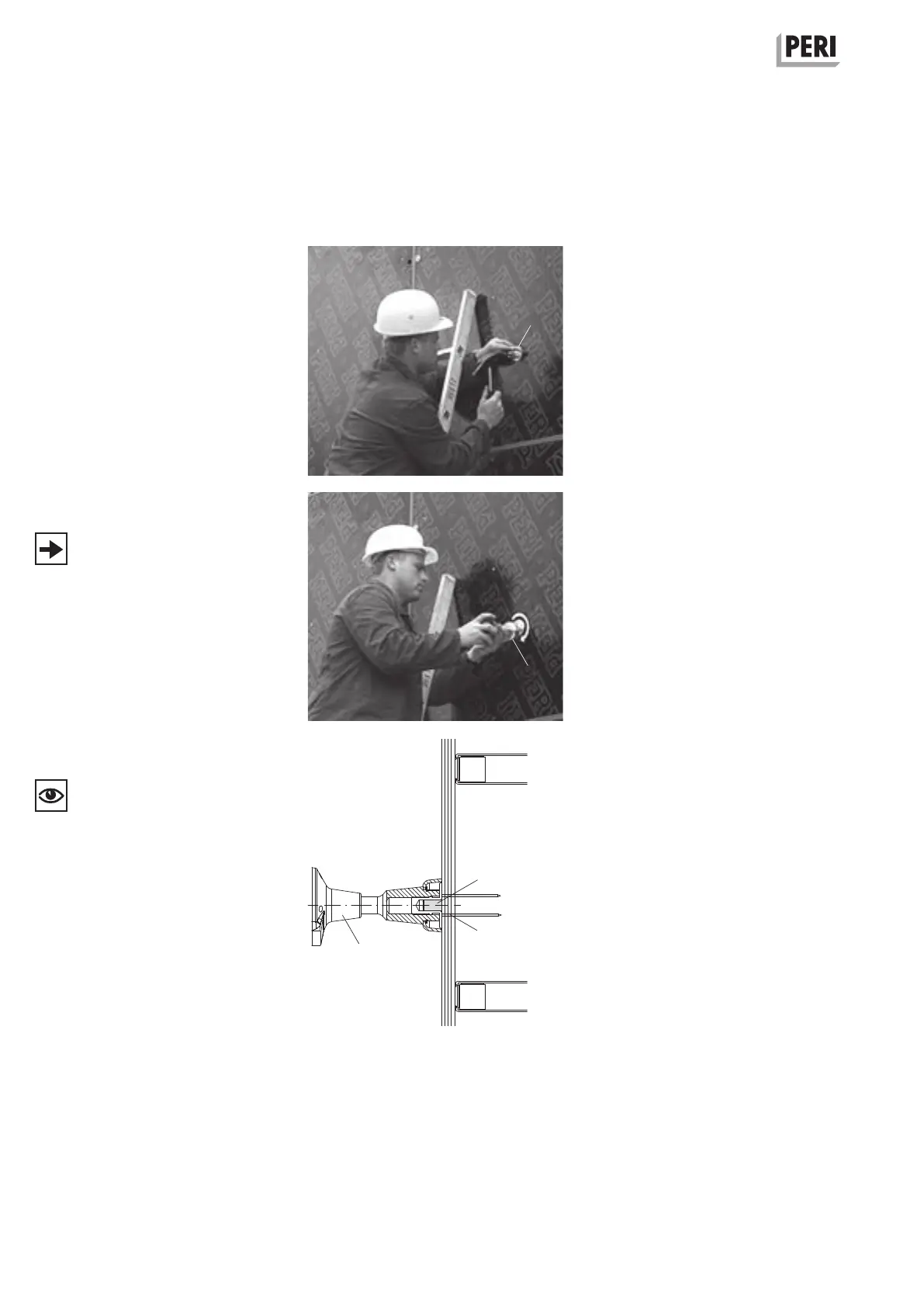

1. Fix Anchor Positioning Stud M24
(5.11) to the marked position with
nails 31 x 80 (4x) (5.12).
(Fig. B1.06)
2. Tightly screw on pre-assembled lead-
ing anchor (5) on Anchor Positioning
Stud M24.
(Fig. B1.07 + B1.08)
– A more stable mounting is achieved
through the installation of the anchor
positioning plate, see “Assembly of
Advancing Bolt M24”.
– In this case, the distances from the
holes to be drilled to the steel struts
of the formwork must be large
enough.
– For safe positioning, firmly connect
the threaded anchor plate (5.2) to the
reinforcement.
Check assembly
– height
– anchor spacings
– anchoring depth h
– alignment according to specifications
Checking of leading anchor and rein-
forcement measures can be done at
the same time.
Fig. B1.06
Fig. B1.07
Fig. B1.08
