27Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B1 Work on the construction site
Mounting the CB 160
climbing platform
to the first wall section
Assembly
4. Lift platform and pivot over the scaffold
mounting rings.
(Fig. B1.21)
5. Bring platform into position and
simultaneously lower without tilting.
Troubleshooting
– If no connection is made with the
scaffold mounting rings (5.6) or the
brackets (1.1) jam, lift the platform
and lower again.
– If the bracket spacing does not match
that of the scaffold mounting rings,
check the distance of the leading an-
chor to the formwork.
– If the mounting procedure is not pos-
sible, the bracket spacing must be
corrected through the re-assembly of
the platform.
Do the brackets (1.1) hang in both scaf-
fold mounting rings M24 (5.6)?
Securing the platform
If the securing bolts cannot be in-
serted, repeat the procedure!
Assembly
1. Enter platform.
2. Insert safety pins (1.5) into the open-
ing under the Scaffold Mounting Ring
(5.6) and secure by turning to a verti-
cal position.
(Fig. B1.22)
3. Remove crane hook.
Mounting of formwork, see B2 / B3.

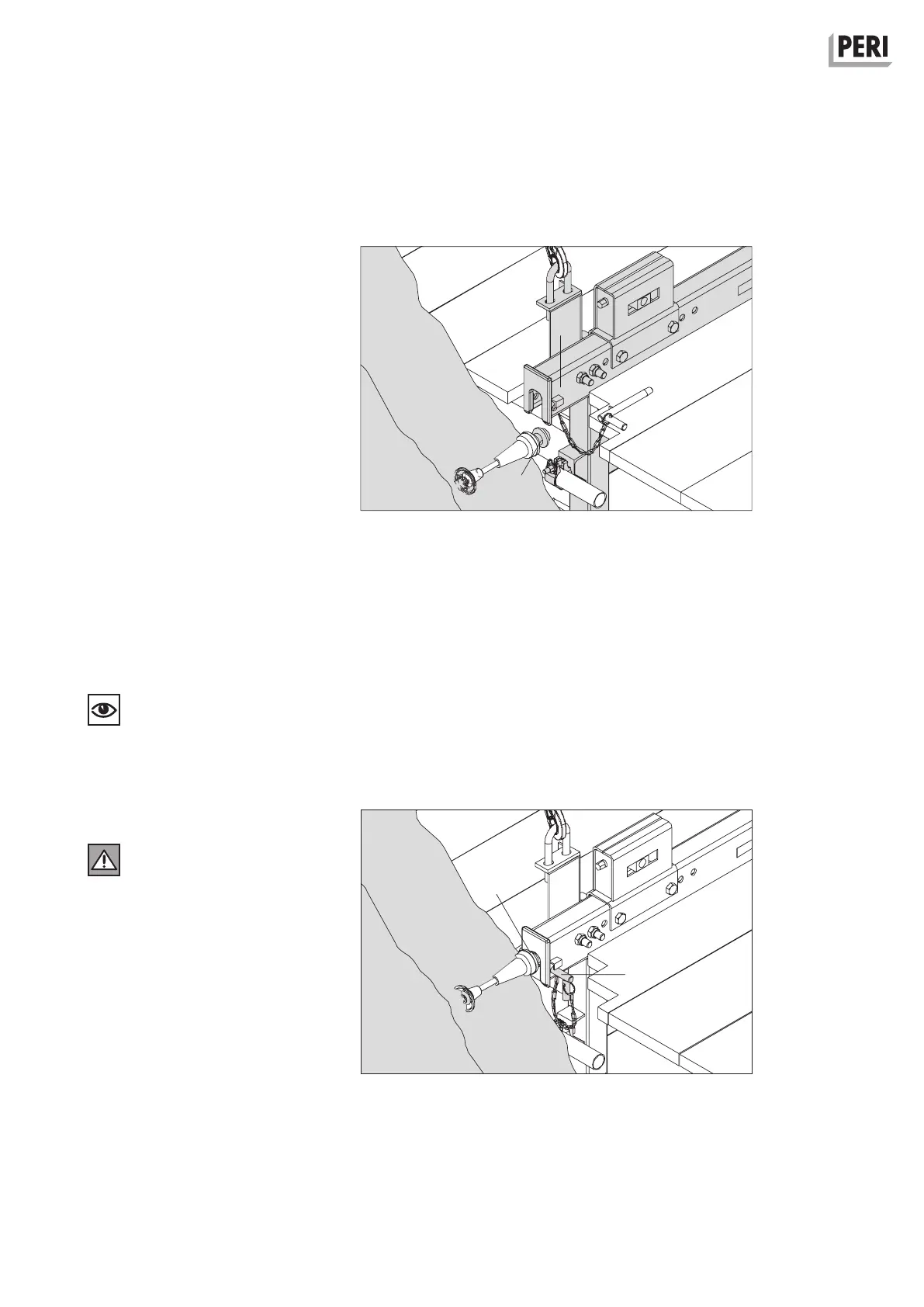

Fig. B1.22
Fig. B1.21
5.6
1.1
5.6
1.5
