35Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B1 Work on the construction site

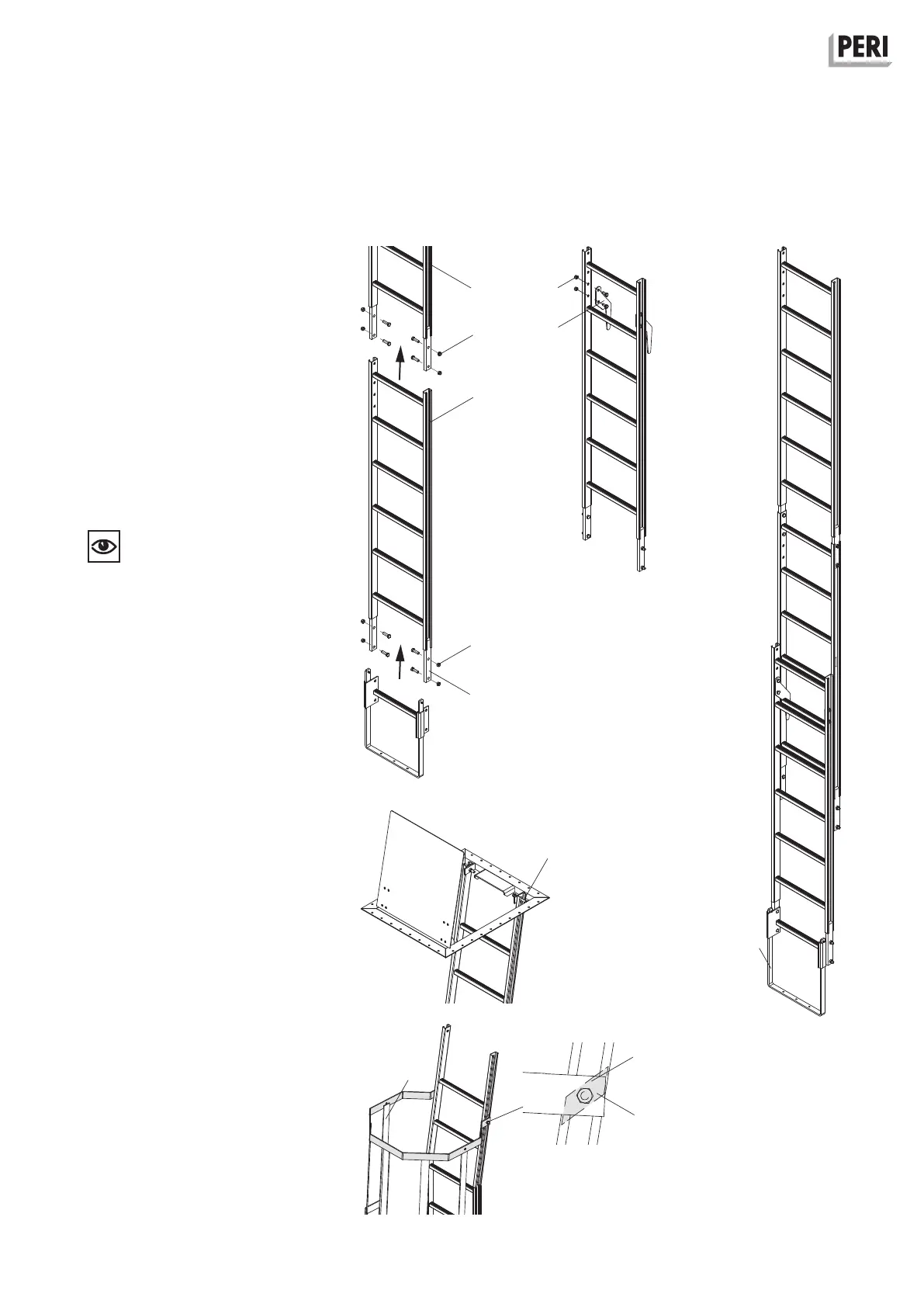

Ladder assembly
Pre-assembly of ladder
1. Use ladders:
Top: Ladder 220/6 (15.1)
Bottom: Ladder 180/6 (15.2)
2. Connect ladders with bolts SW 19
(15.3). (Fig. B1.50)
3. Mount Ladder Base (30) (15.4) using
bolts SW 19 (15.3).
(Fig. B1.38)
If the ladder is of a hang-in type, fix lad-
der hook (15.5) with bolts SW 19 (15.7).
(Fig. B1.39)
When mounting the ladder, the rungs
of both ladders must be at the same
level. (Fig. B1.40)
Attaching the ladder to the hatch
1. Lift ladder using crane. Lower ladder
through hatch opening.
2. Fix ladder to hatch from the top, bolts
SW 19 (14.3) (2x). (Fig. B1.41)
Mounting the ladder base
1. For horizontal mounting of the ladder,
tightly screw the drawn-out bracket
of the Ladder Base 30 to the planking
with 3 Torx TSS 6 x 40 (15.9).
Mounting the ladder safety cage
1. Bring and hold ladder safety cage
(15.6) in position using a rope.
2. Slightly loosen bolts SW 19 (15.7) (4x)
on clamping plate (15.8), position
clamping plate on the ladder longitu-
dinal members, and tighten screws.
(Fig. B1.42)
15.2
15.1
15.3
15.4
15.7
15.5
15.3
15.9
Fig. B1.38
Fig. B1.39
Fig. B1.40
SW 19
SW 19
14.3
15.6
15.8
15.7
Fig. B1.41
Fig. B1.42
SW 19
SW 19
Detail
