CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
B2 Assembly of the Formwork Elements
3.2
TRIO Element
Mounting of TRIO Elements on CB 240
Brackets
1. Retract Carriage (2) and secure with
wedge (2.2).
2. Fix Adjustable Brace 164-224 (3.1) to
Carriage using bolts and cotter pins
(3.2). Spindle out to the approximate
length and attach to ladder cage to
prevent tipping over.
3. Open concreting platform decking
(10.3) above the Strongback. Secure
loose decking components.
4. Attach formwork unit (10) with concre-
ting platform to the Strongback (4) and
position on the platform. (Fig. B2.17)
5. Mount Strongback CB (4) to Carriage
using bolts Ø 25 x 180 and cotter pins
(4.6). Standard case: use holes in the
Strongback and Carriage which face
away from the wall. (Fig. B2.18)
6. Fix Adjustable Brace (3.1) to Strong-
back with bolts Ø 25 x 180 and cotter
pins (3.2). (Fig. B2.19 + B2.19a) De-
tachcrane lifting gear. Close decking
(10.3) on concreting platform.
7. Move Carriage with formwork for-
wards to the wall. Secure Carriage
with wedge (2.2).
8. Align formwork.

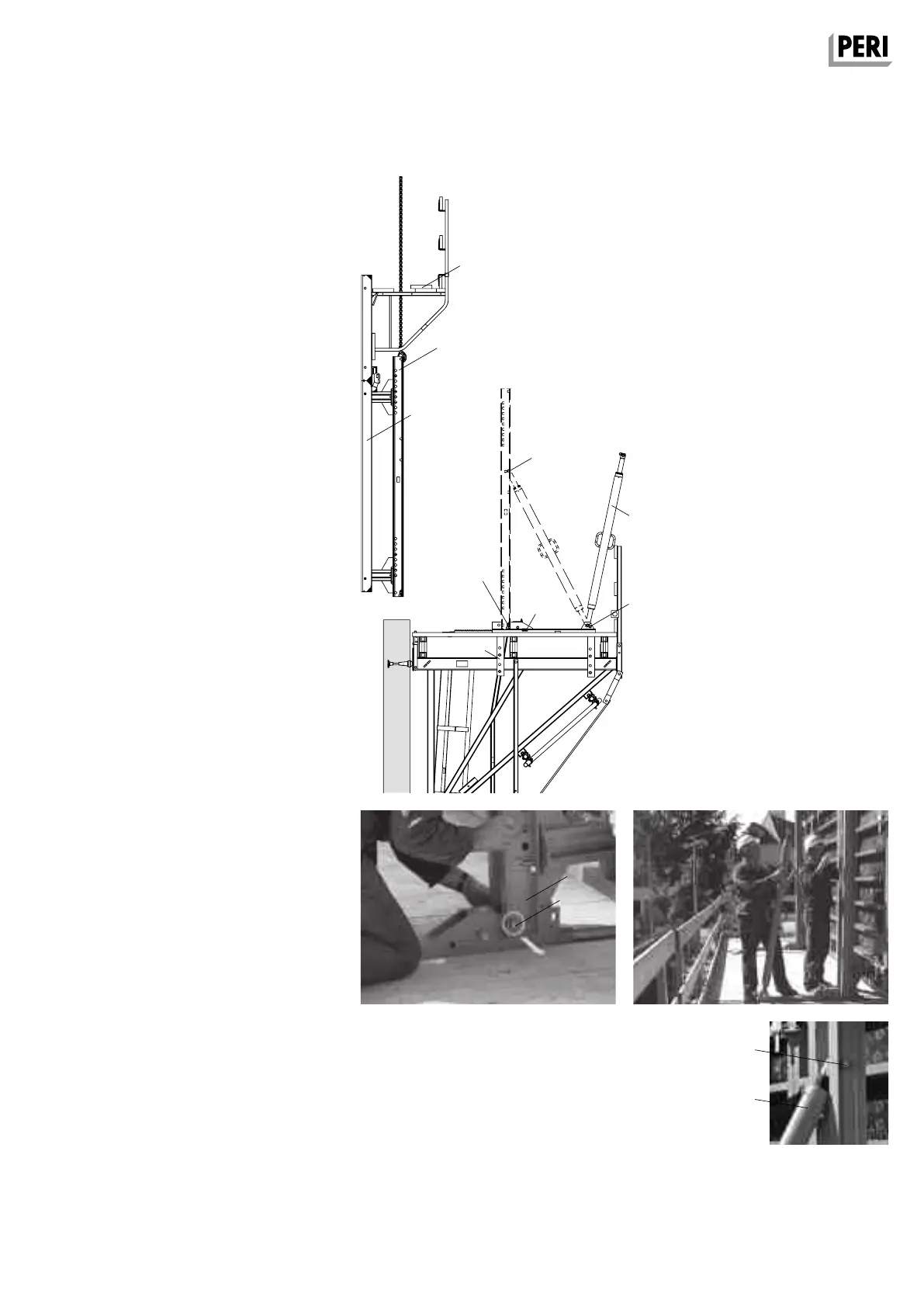

Fig. B2.17
Fig. B2.18
Fig. B2.19a
Fig. B2.19
3.2
3.1
10.3
4
10
3.1
2
3.2
2.2
4.6
4
4.6
