CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
B2 Assembly of the Formwork Elements

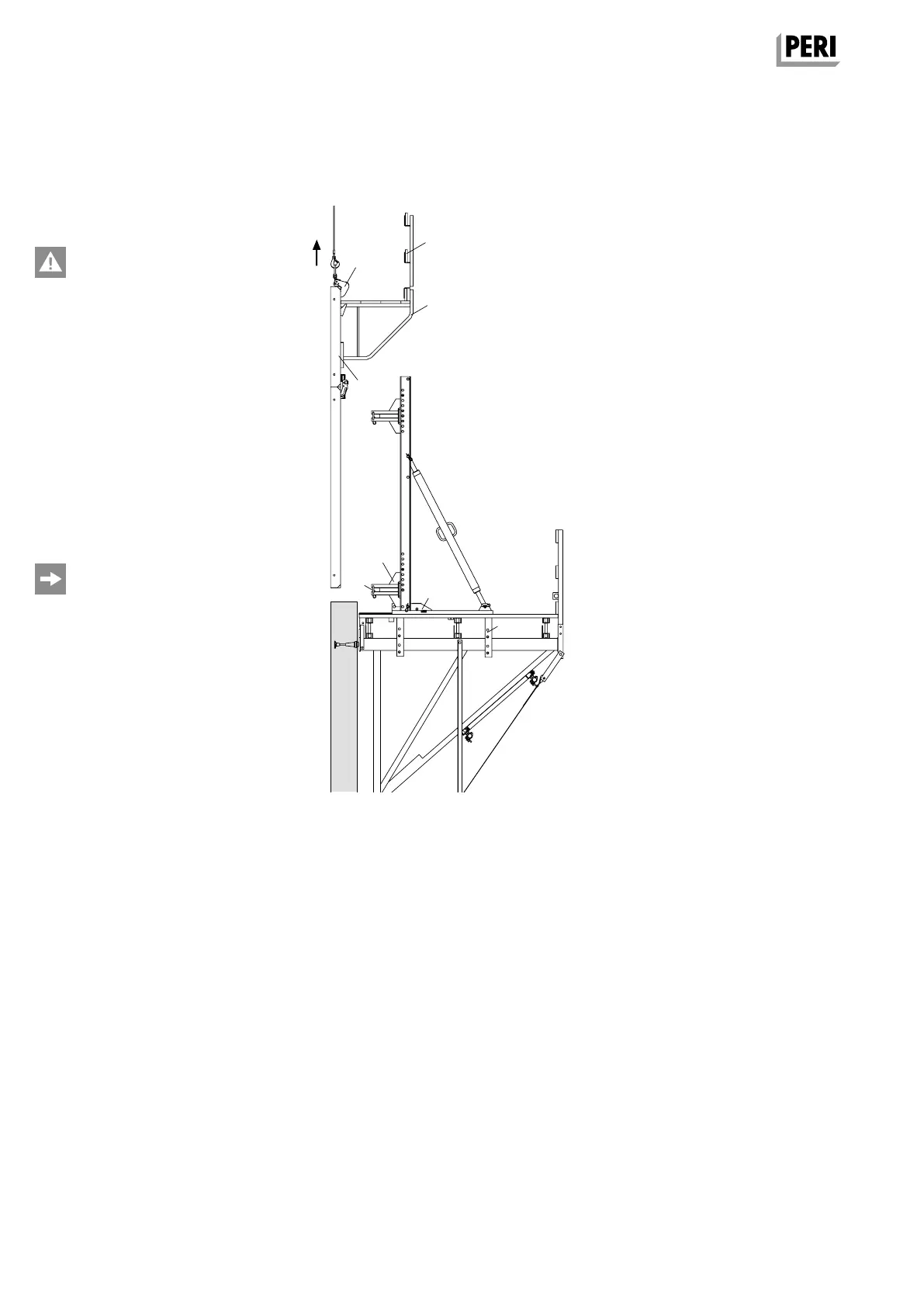

Fig. B2.20
TRIO Element
Exchanging the Formwork
Follow Instructions for Use for the
MAXIMO Lifting Hook!
Dismantling
1. Retract Carriage (2) and secure with
wedge (2.2), see B4.1. Brace strong-
backs laterally.
2. Fix MAXIMO Lifting Hook (10.6) to the
formwork unit (10) and then attach lif-
ting gear.
3. Tension crane lifting gear.
4. Release stirrup (4.7) of Connectors CB
(4.5).
5. Raise formwork and remove (e.g. sto-
rage area). (Fig. B2.20)
When laying the formwork down, the
guardrail (10.5) on the concreting plat-
form (10.2) must be removed (by custo-
mer) in order to avoid any damage
caused by the lifting gear.
10.6
10.5
10.2
10
4.5
4.7
2.2
2
