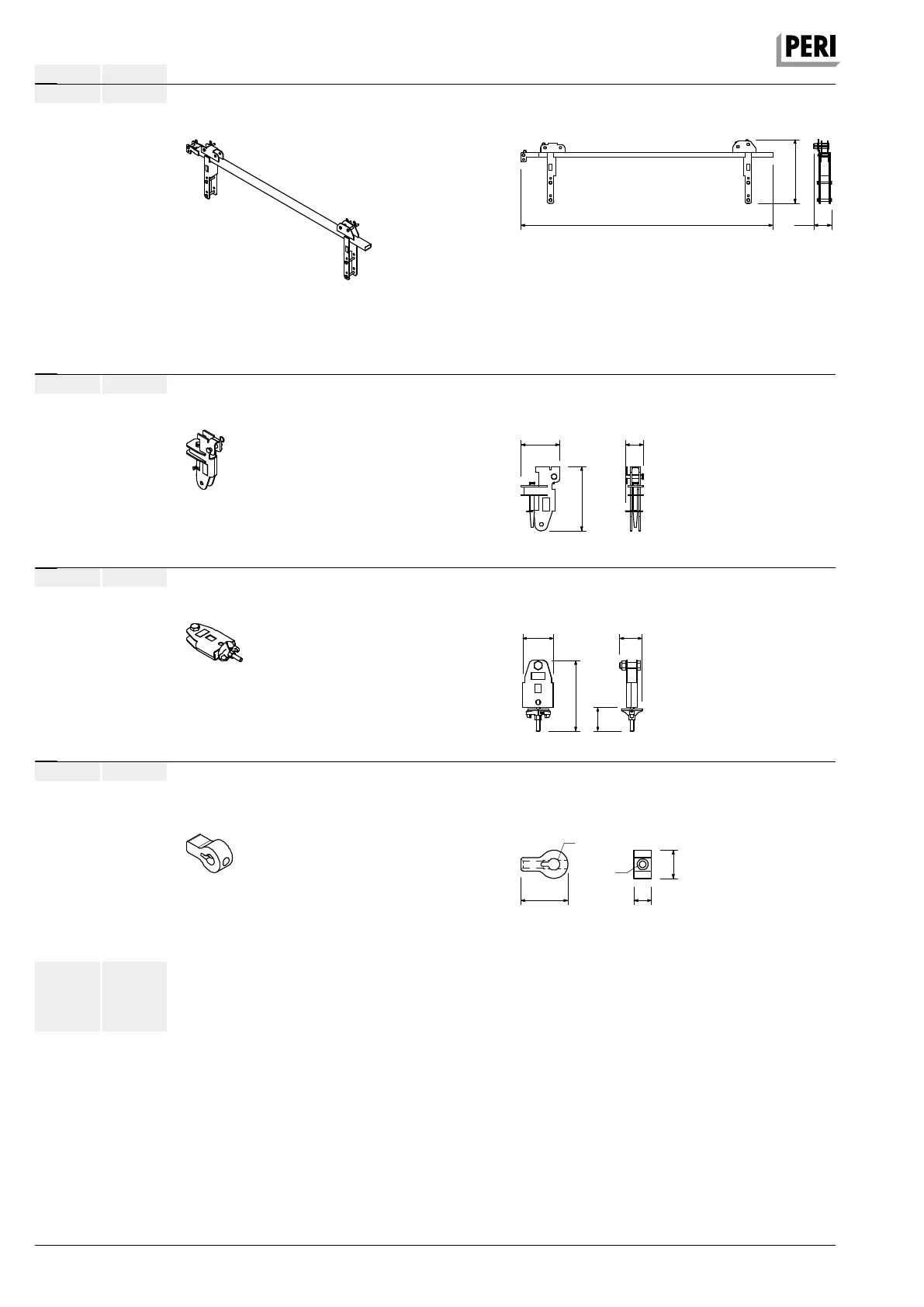

CB 240 Climbing Formwork
74
Item no. Weight kg
115378 1.080 Eye Nut RCS DW 15
As an articulated connection to the Climbing Rail
RCS, Steel Waler SRU for bracing with DW 15.
107 40
6
4
Ø26,5
DW 15
104031
018060
111567
022230
0.462
0.030
0.729
0.033
Accessories
Fitting Pin Ø 21 x 120
Cotter Pin 4/1, galv.
Fitting Pin Ø 26 x 120
Cotter Pin 5/1, galv.
127659 4.020 Clamp Adapter MX/TR-SRU
3
2
1
140
1
0
7
102
127650 3.640 Brace Connector CB
2
9
2
175 82
127641 30.300 Braket Waler CB 240
5
8
1
1612295
