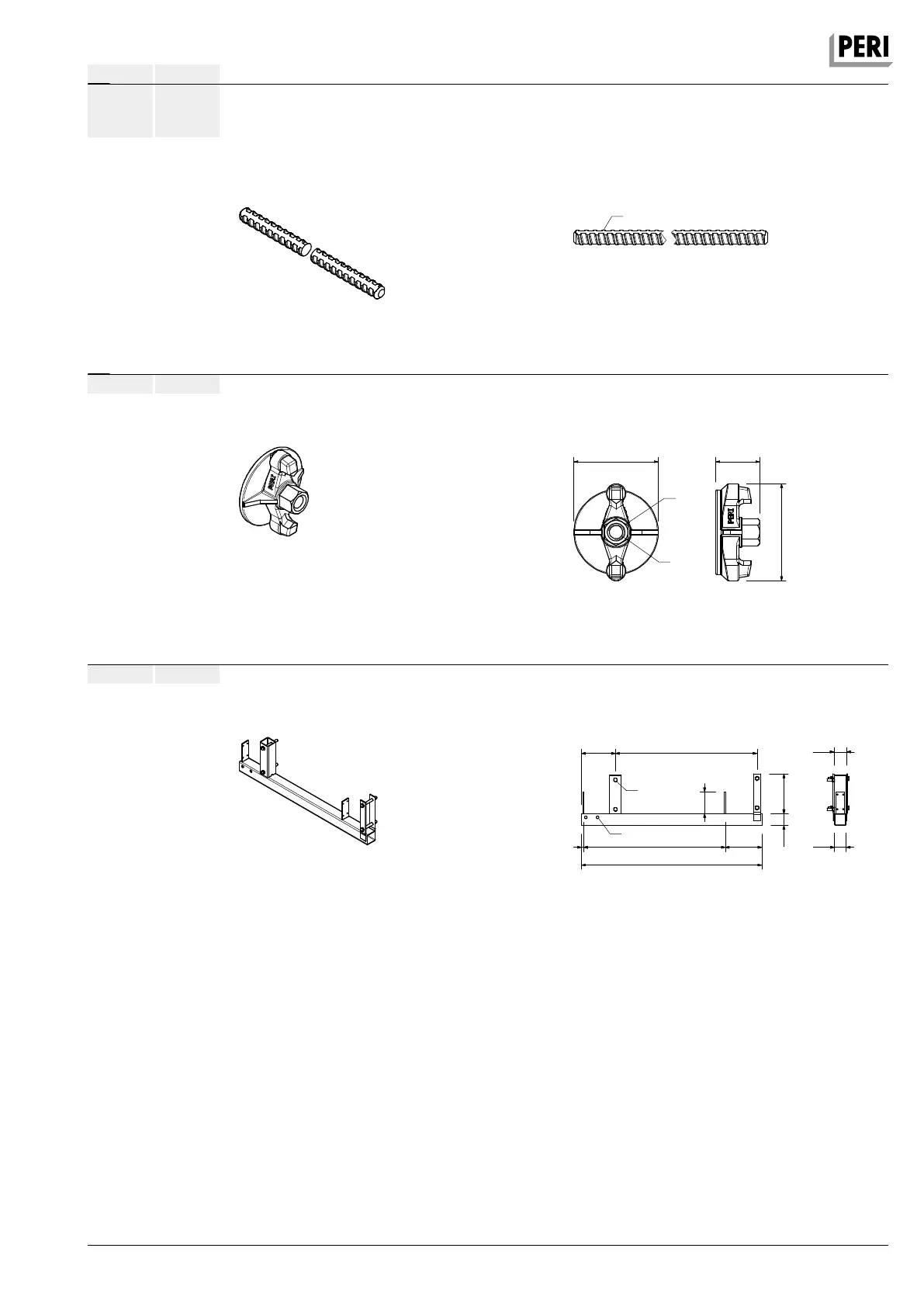

CB 240 Climbing Formwork
75
Item no. Weight kg
051230 17.000 Finishing Platform Beam CB
For assembling finishing platforms.
Complete with
4 pc. 710232 Bolt ISO 4014 M16 x 130-8.8, galv.
4 pc. 070890 Nut ISO 7042 M16-8, galv.
232 965
1230
8
0
2
7
0
16 965 249
M 16x130
1
5
0
80
86
Ø17
030110 0.799 Wingnut Counterplate DW 15, galv.
For anchoring with Tie Rod DW 15 and B 15.
Technical Data
Permissible load 90 kN.
96
1
1
0
50
SW 27
DW 15
030005
030490
0.720
1.730
Tie Rod DW 15
Tie Rod DW 15, l = 0.50 m
Tie Rod DW 15, l = 1.20 m
Note
Non-weldable! Take official approval into conside-
ration!
Technical Data
Permissible tension force 90 kN.
DW 15
