CB 240 Climbing Formwork
84
Item no. Weight kg

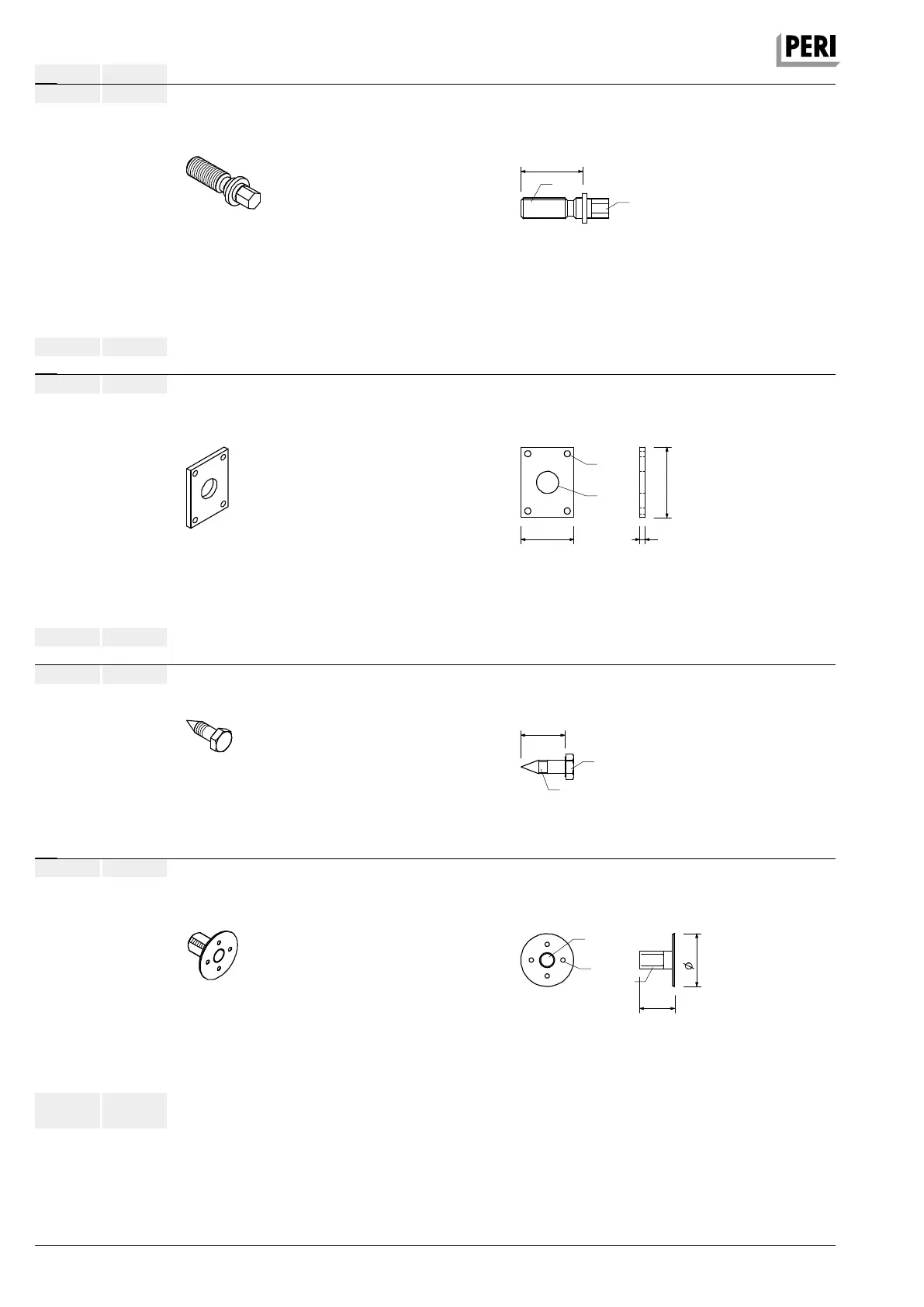

026420 0.123 Anchor Positioning Stud M24, galv.
For fixing the M24 anchor system if the plywood
formlining is not drilled through.
Note
Allen Key SW 14.
6
0
40
M 24
Ø5
SW 14
027212
710312
0.445
0.005
Accessories
Allen Key SW 14, long
Nail 3 x 80
029440 0.005 Lag Screw DIN 571 6 x 20, galv.
20
M 6
SW 10
029280 0.196 Anchor Positioning Plate M24, galv.
For fixing the M24 anchor system if the plywood
formlining is drilled through.
60
Ø25
Ø7
8
0
6
029440 0.005
Accessories
Lag Screw DIN 571 6 x 20, galv.
029270 0.331 Advancing Bolt M24, galv.
For fixing the M24 anchor system if the plywood
formlining is drilled through.
70
M 24
SW 19
029280 0.196
Accessories
Anchor Positioning Plate M24, galv.
AuV CB 240 EX.indb 84 29.06.16 09:54
