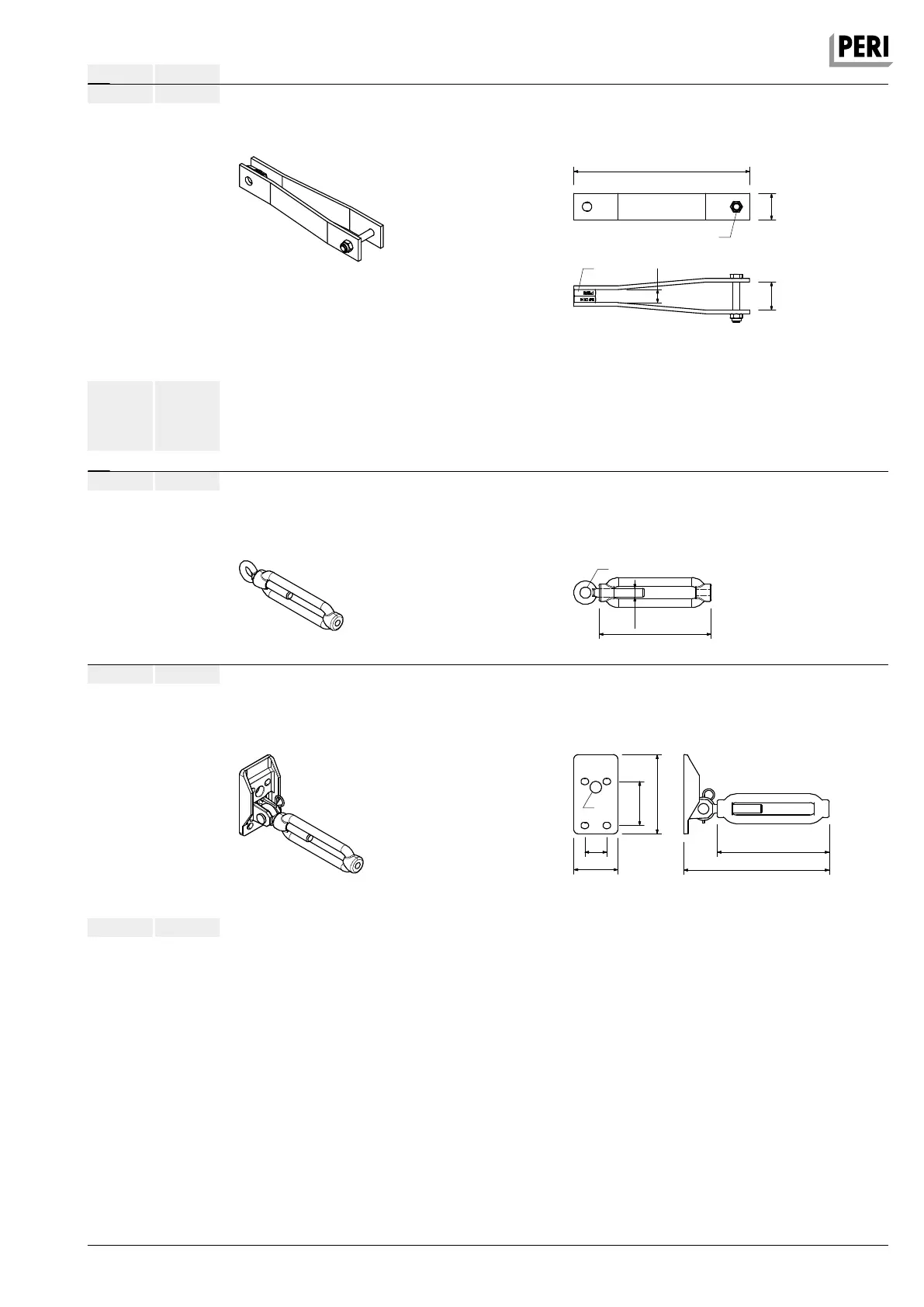

Peri CB 240 - Page 87

CB 240 Climbing Formwork
85
Item no. Weight kg
107008 4.100 Wall Tension Anchor
Alternative wall connector to prevent tipping over
due to wind loads with Tie Rod DW 15. Including
Turnbuckle CB M20/DW 15.
Complete with
1 pc. 027170 Pin Ø 16 x 42, galv.
1 pc. 018060 Cotter Pin 4/1, galv.
331
1
8
0
100
1
0
0
255
DW 15
Ø26
50
026430 0.334
Accessories
Bolt ISO 4014 M24 x 70-10.9, glav.
116807 1.820 Turnbuckle CB M20/DW 15
For tensioning of Tie Rod DW 15 to prevent tipping
over due to wind loads. Connects Tie Rod DW 15
with Wall Bracing Shoe CB M24.
Complete with
1 pc. 711059 Turnbuckle for tension anchor CB
1 pc. 711060 Eye Bolt M20, left, galv.
255
Ø25
DW 15
2
0
Ø
107007 3.410 Tension Anchor Connector CB
To prevent tipping over due to wind loads with Tie
Rod DW 15.
Complete with
1 pc. 710219 Bolt ISO 4014 M16 x 100-8.8, galv.
1 pc. 070890 Nut ISO 7042 M16-8, galv.
400
6
0
6
4
M 16x100
3
0
DW 15
116807
030030
107008
116752
1.820
1.440
4.100
5.050
Accessories
Turnbuckle CB M20/DW 15
Tie Rod DW 15, spec. length
Wall Tension Anchor
Wall Bracing Shoe CB M24
