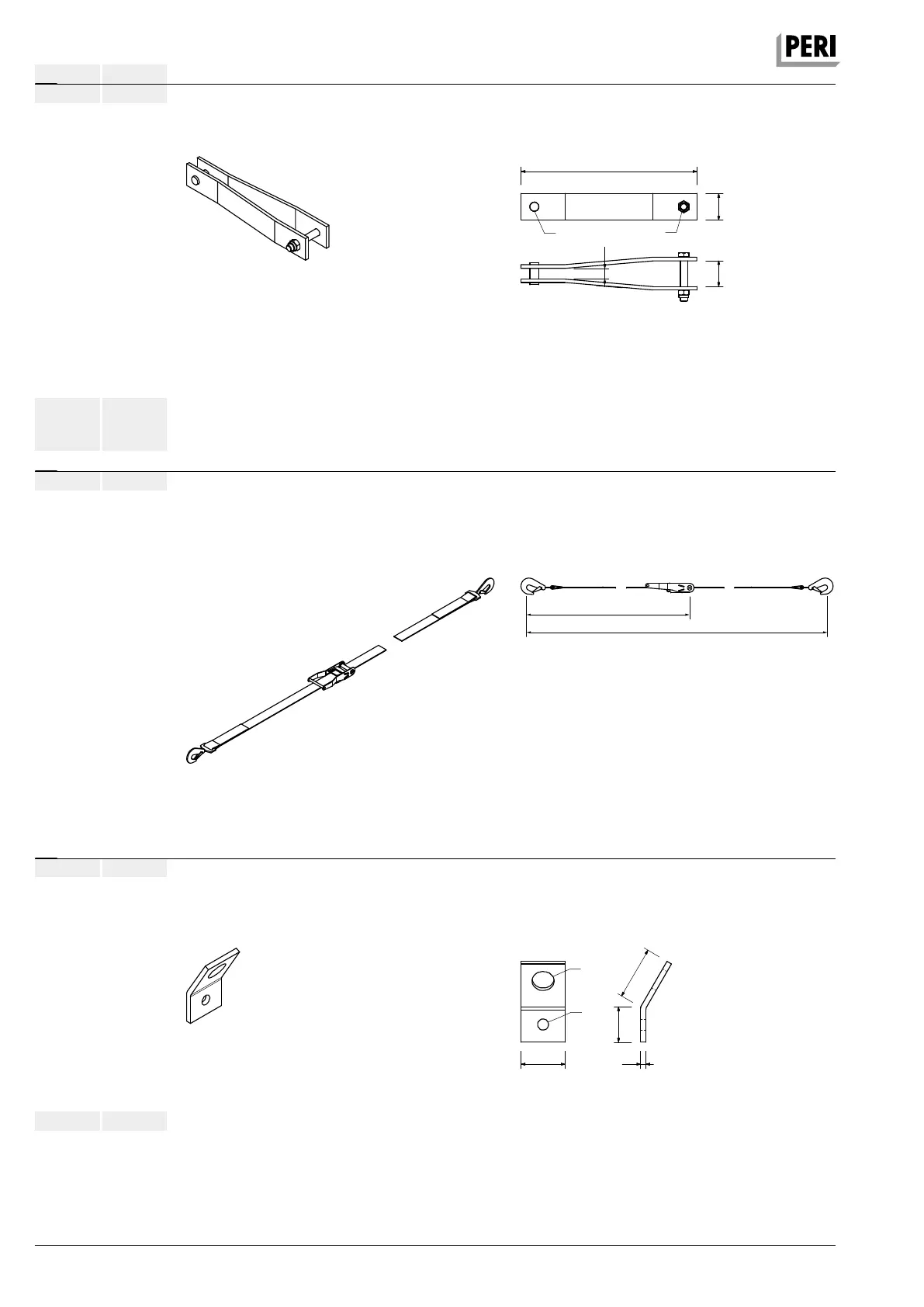

CB 240 Climbing Formwork
86
Item no. Weight kg
051270 1.620 Tension Belt Connector Wall M24
Wall connector to prevent tipping over due to wind
loads with Tension Belt. To be used for climbing
systems CB and FB.
100
12
8
0
1
2
0
Ø25
Ø50
026430 0.334
Accessories
Bolt ISO 4014 M24 x 70-10.9, glav.
051250 2.790 Tension Belt, l = 5.70 m, 2.5 t
To prevent climbing systems from tipping over due
to wind loads.
Note
Follow Instructions for Assembly and Use!
Technical Data
Permissible tension force 2.5 t.
1000
5700min 1600 max
051260 3.300 Tension Belt Connector CB
To prevent tipping over due to wind loads with
tension belt.
Complete with
1 pc. 710219 Bolt ISO 4014 M16 x 100-8.8, galv.
1 pc. 070890 Nut ISO 7042 M16-8, galv.
400
6
0
5
9
2
5
Ø20
M 16x100
051250
051270
116752
2.790
1.620
5.050
Accessories
Tension Belt, l = 5.70 m, 2.5 t
Tension Belt Connector Wall M24
Wall Bracing Shoe CB M24
