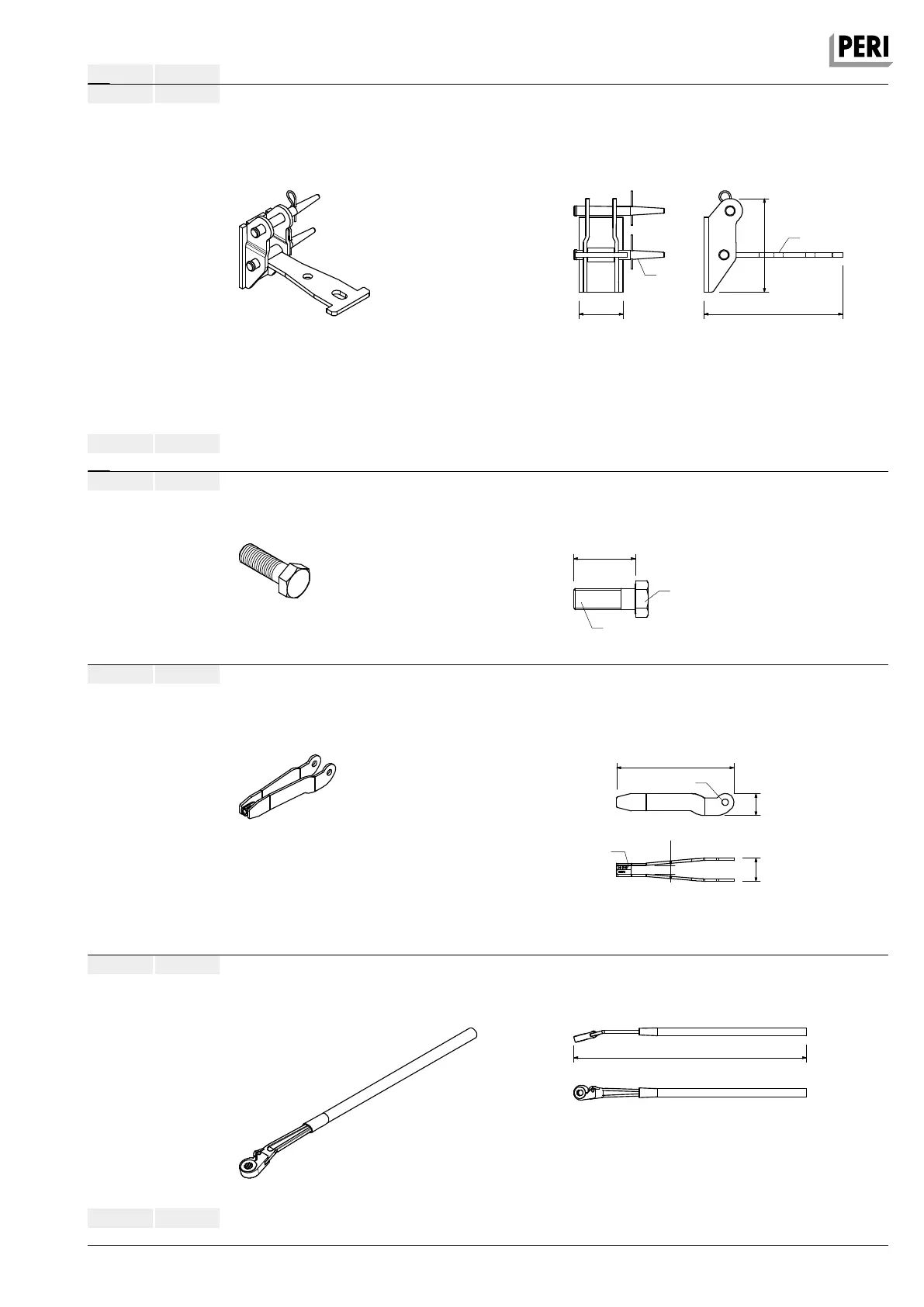

CB 240 Climbing Formwork
87
Item no. Weight kg
027180 1.760 Ratchet Lever SW 19
For operation of the adjusting unit and of the
carriage with drive shaft SW 19.
795
027200 0.100
Accessories
Insert Socket SW 19
129693 3.130 Tension Anchor Connector CB/SCS
For connecting the wind suspension with Tie Rod
DW 15 to the Crossbeam Unit SCS 250 / 190 or
CB Climbing Bracket.
400
7
5
3
0
DW 15
8
0
Ø22
026430 0.334 Bolt ISO 4014 M24 x 70-10.9, glav.
High-strength bolt for anchoring climbing
systems.
70
M24
SW 36
116752 5.050 Wall Bracing Shoe CB M24
To prevent tipping over due to wind loads with
Tension Belt or Tie Rod DW 15 and to stabilise the
finishing platform. To be mounted on the Climbing
Anchor M24 embedded in the concrete.
Complete with
2 pc. 104031 Fitting Pin Ø 21 x 120
2 pc. 018060 Cotter Pin 4/1, galv.
100
2
1
3
315
Ø21
Ø21x120
026430 0.334
Accessories
Bolt ISO 4014 M24 x 70-10.9, glav.
