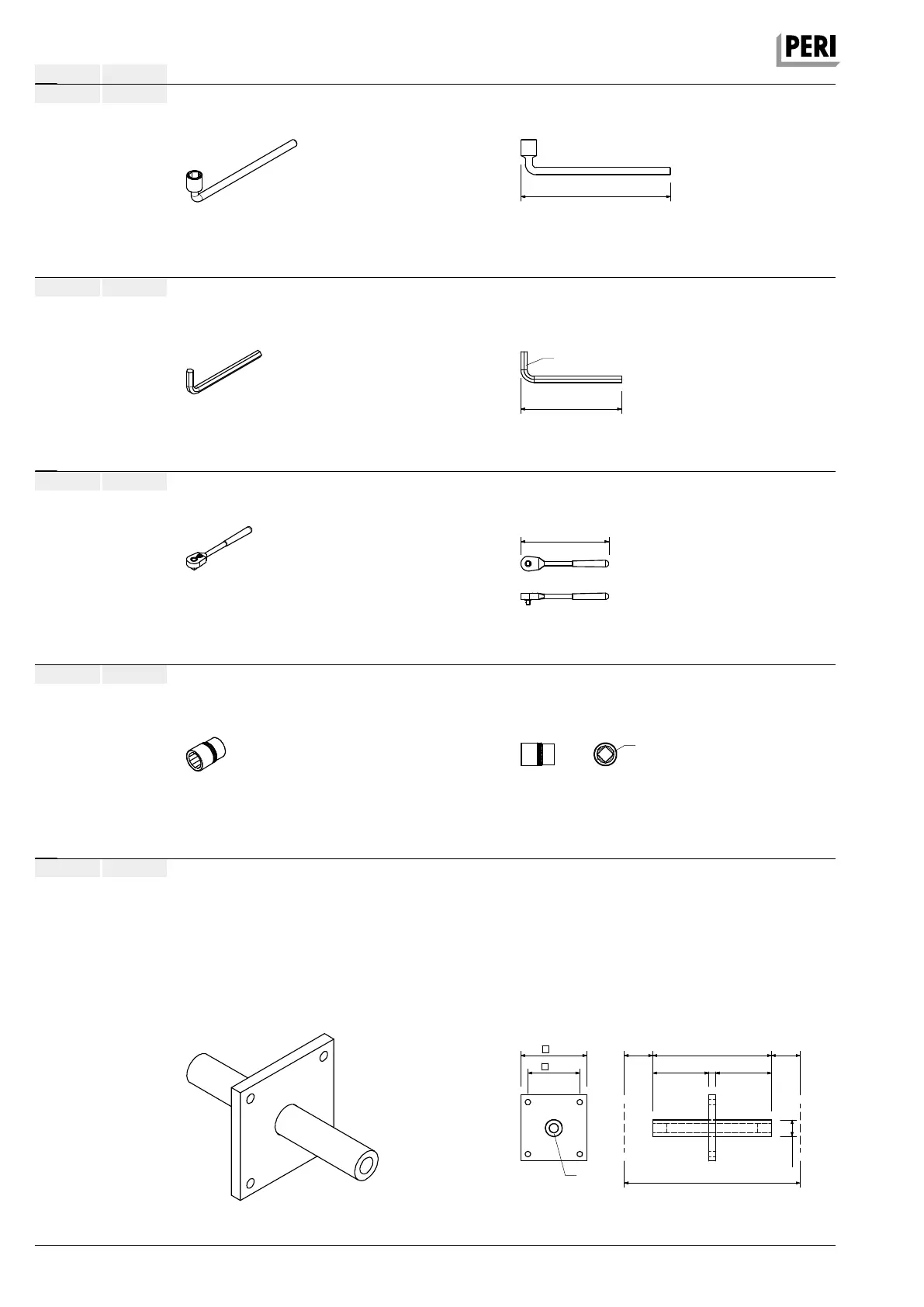

CB 240 Climbing Formwork
88
Item no. Weight kg
118638 8.790 Arch. Anchor Sleeve M24-150/2
Centre piece of the double-sided architectural
concrete anchoring CB. Anchor Tie DW 15 is
passing through.
Plate size 150 mm.
Note
Order item!
Specify wall thickness D.
Seperate design information on request.
Technical Data
Min. D = 200 mm.
Max. D = 400 mm.
L = D -130 mm.
150
118
L
=
15
=
D
65 65
3
7
,5
Ø
M 24
029620 0.075 Socket SW 19-1/2"
Fits to Hex. Bolts M12 or Height Adjusting Unit
SW 19.
SW 19
072180 0.560 Ratchet Wrench 1/2"
300
027212 0.445 Allen Key SW 14, long
Fits to PERI Anchor Positioning Studs and Allen
Key Bolts M16.
230
SW 14
031480 2.460 Socket Wrench SW 36, chrome-plated
For various purposes.
510
AuV CB 240 EX.indb 88 29.06.16 09:54
