CB 240 Climbing Formwork
90
Item no. Weight kg

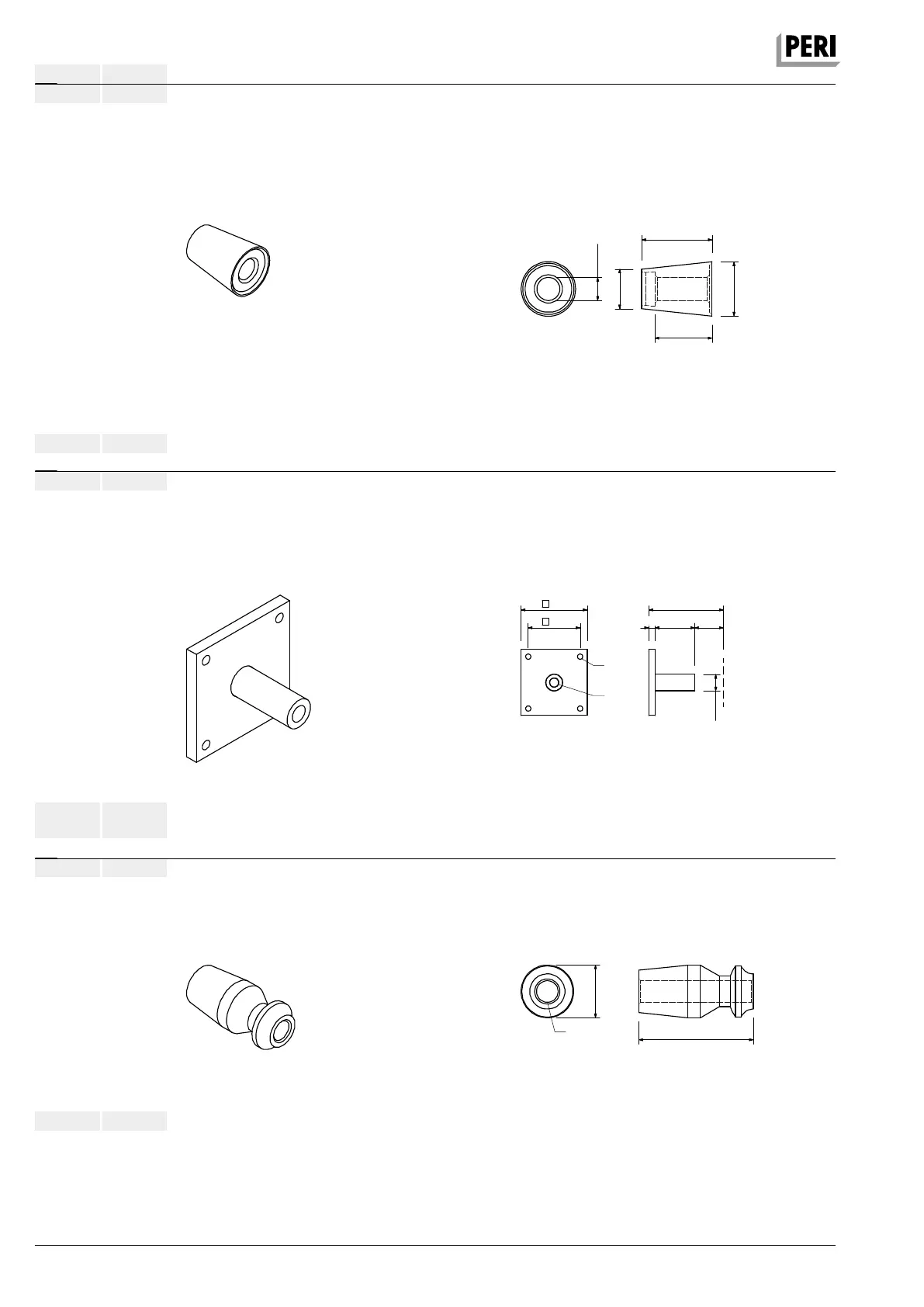

114606 1.630 Arch. Mounting Cone M24
For anchoring climbing systems compatible with
Mounting Ring M24.
Fixation to Arch. Anchor Sleeves M24-120/2,
M24-150/2 or M24-150/1.
Note
Seperate design information on request.
130
6
0
Ø
M 24
057138 0.665
Accessories
Hex. Bolt ISO 4014 M24 x 160-8.8, galv.
125963 3.100 Arch. Anchor Sleeve M24-150/1
Anchor sleeve for single-sided architectural concre-
te anchoring CB.
Anchor Tie DW 15 is passing through.
Plate size 150 mm.
Note
Seperate design information on request.
Technical Data
Fixed embedment depth 170 mm.
Min. wall thickness 200 mm.
150
118 15 90
3
7
,5
Ø
Ø12
M 24
65
170
065027
065033
0.359
0.010
Accessories
Spacer Tube rough DR 22, l = 2.00 m
Cone DR 22
125512 0.966 Arch. Leading Cone M24/DW 26 Steel
Leading cone for single- or double-sided architec-
tural anchorings CB.
Creates a recess for Arch. Mounting Cone M24
and concrete cone DK 58/52.
Can also be used as shear cone for anchoring FB
or KG Brackets.
Note
Steel version.
Seperate design information on request.
2
6
D
W
80
6
2
Ø
4
5
Ø
65
115499 0.878
Accessories
Leading Cone Screw DW 26
