75
Calibration Lengths for Smart Actuators
Actuator
Standing
Recline
Legrest
Tilt
Center-to-Center Length
520 mm
250 mm
300 mm
300 mm
Front Hole Position
Aligned with “fixed” hole
Aligned with “fixed” hole
Aligned with “fixed” hole
Aligned with “fixed” hole
VS Seating System
Actuator
Recline
Legrest
Center-to-Center Length
300 mm
300 mm
Front Hole Position
Aligned with “fixed” hole
Aligned with “fixed” hole
RS Seating System
Actuator
Legrest
Center-to-Center Length
300 mm
Front Hole Position
Aligned with “fixed” hole
Corpus Seating System on C300 & C350
Actuator
Backrest
Legrest
Tilt 20°
Center-to-Center Length
250 mm
300 mm
Automatic calibration only
Front Hole Position
Aligned with “fixed” hole
Aligned with “fixed” hole
Corpus Seating System on C400 & C500

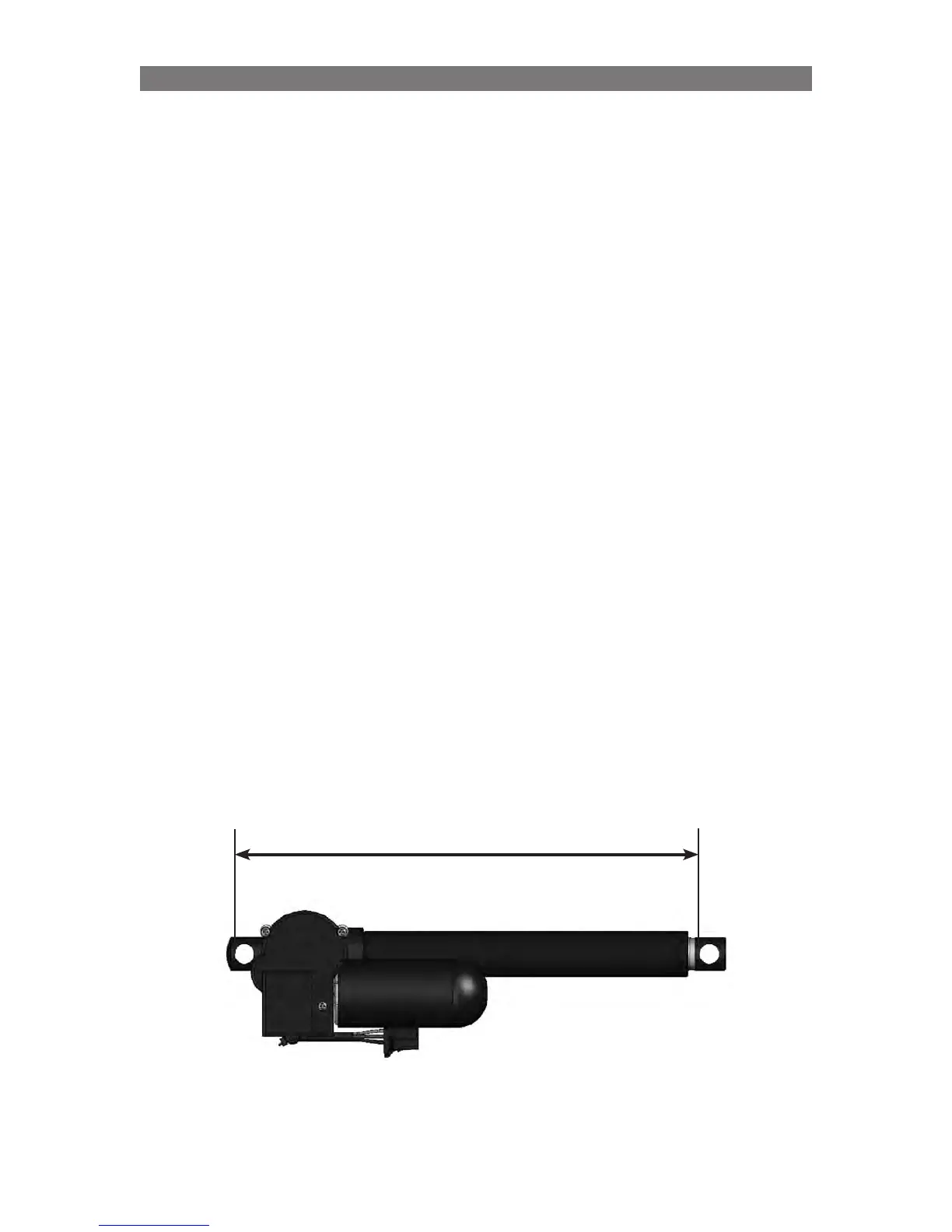

Measure this Distance
Servicing Smart Actuator Calibration
