Philips DV910VHS98 - Page 9

CH 4
or
CH 3
CH3 / CH4
Switch
CH3 CH4
ANT-IN
ANT-OUT
CH3 CH4
75Ω
ANT /
CABLE
75
ANT /
CABLE
ANT-IN
ANT-OUT
CH3 CH4
Black RF
coaxial cable
(supplied)
Antenna or
Cable
3

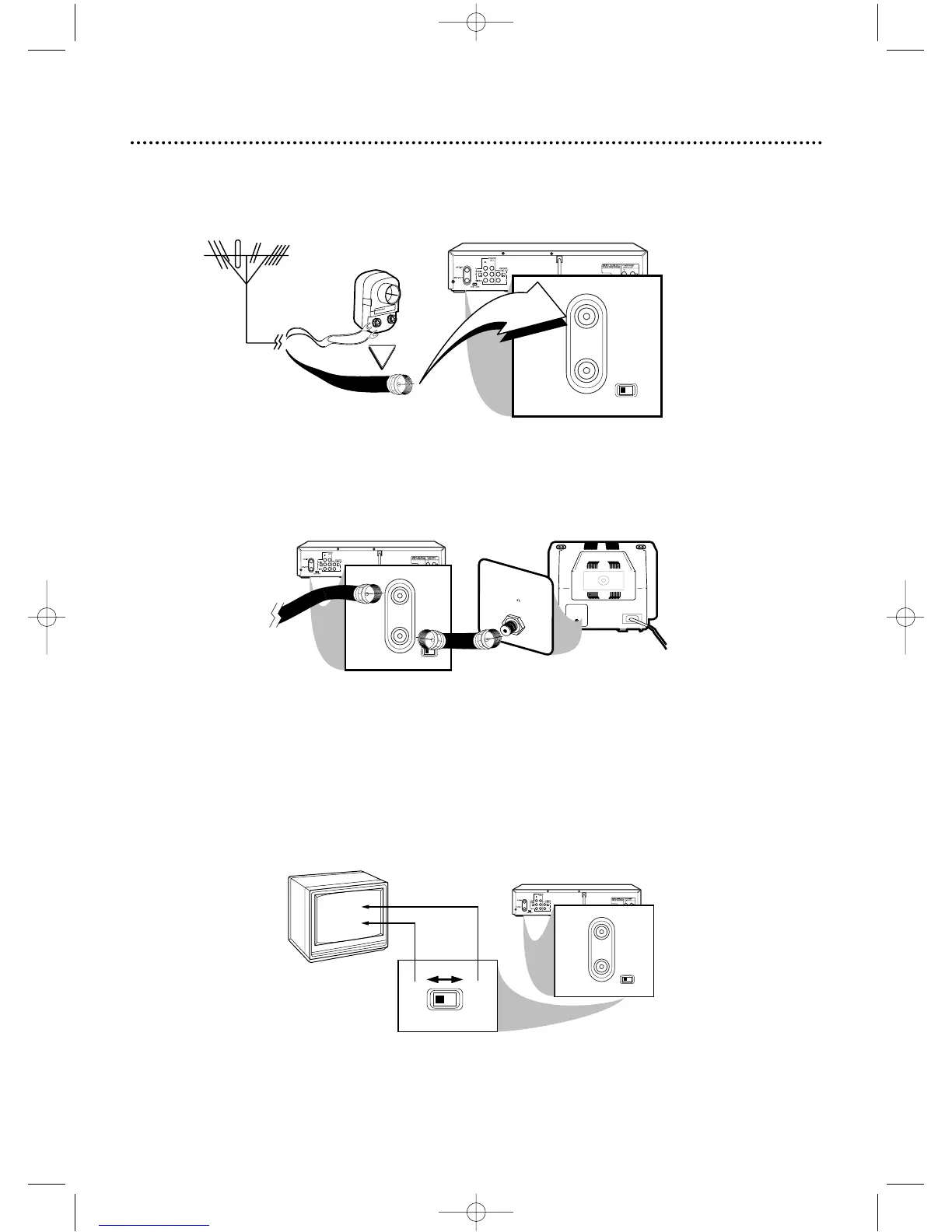

Connect the supplied black RF coaxial cable to the ANT-OUT (Antenna Out) Jack on the back
of the DVD/VCR and to the ANTENNA IN Jack on the TV.
5
Set the CH3/CH4 switch on the back of the DVD/VCR to CH3 or CH4,whichever TV channel is
not used or least used in your area.Set the TV to the same channel. For example,when playing a tape,
if the CH3/CH4 switch is set to CH3,the TV should be on channel 03.
Hookups (cont’d) 9
Antenna In Jack
(on back of TV)
example only
4
Plug in the power cords of the TV and the DVD/VCR.
6
You are ready to turn on the DVD/VCR.Please go to page 16 before turning on the DVD/VCR.
You must complete the VCR setup before you can access the DVD Player, so it is important to
complete the steps on page 16.
OR
ANT-IN
ANT-OUT
CH3 CH4
Back of DVD/VCR
2
Connect the antenna or cable to the ANT-IN (Antenna In) Jack of your DVD/VCR.
Cable
(75 ohm)
Antenna
Indoor/Outdoor
(300 ohm)
