10 Hookups (cont’d)
Remember...
There are two ways to connect your Cable Box/DBS to the DVD/VCR.With the connection on this page:
● You may view any channel.Select channels at the Cable Box/DBS,not the DVD/VCR.To record or view any
TV channel,follow these steps. 1) Press the OUTPUT SELECT button to put the DVD/VCR in VCR mode.
2) Press the VCR/TV button to choose VCRposition. 3) Press the CHANNEL o/p buttons to set the
DVD/VCR to the Cable Box/DBS output channel (03 or 04).Set the DVD/VCR’s CH3/CH4 switch to the
same channel. 4) Set the TV to the same channel to which you set the DVD/VCR.
5) Select the channel you want to view/record at the Cable Box/DBS.
● You may not view a channel other than the one you are recording.
● You can only program a timer recording for one channel at a time.Set the TV and the DVD/VCR to the
Cable Box/DBS output channel (channel 03 or 04);set the DVD/VCR’s CH3/CH4 switch to the same chan-
nel.Set your Cable Box/DBS to the channel you want to record.When you enter the channel you want to
record in a timer recording,select channel 03 or 04 (the Cable Box/DBS output channel).(This is step 5 on
page 37.) Leave the Cable Box/DBS on for a timer recording.
OUT
IN
75
ANT /
CABLE
DVD/VCR
AUDIO OUT
DVD/VCR
OUT
IN
VIDEO
ANT-IN
ANT-OUT
AUDIO
R
L
R
CH3 CH4
L
TV’sANTENNA
IN Jack
Cable Box/DBS
DVD/VCR

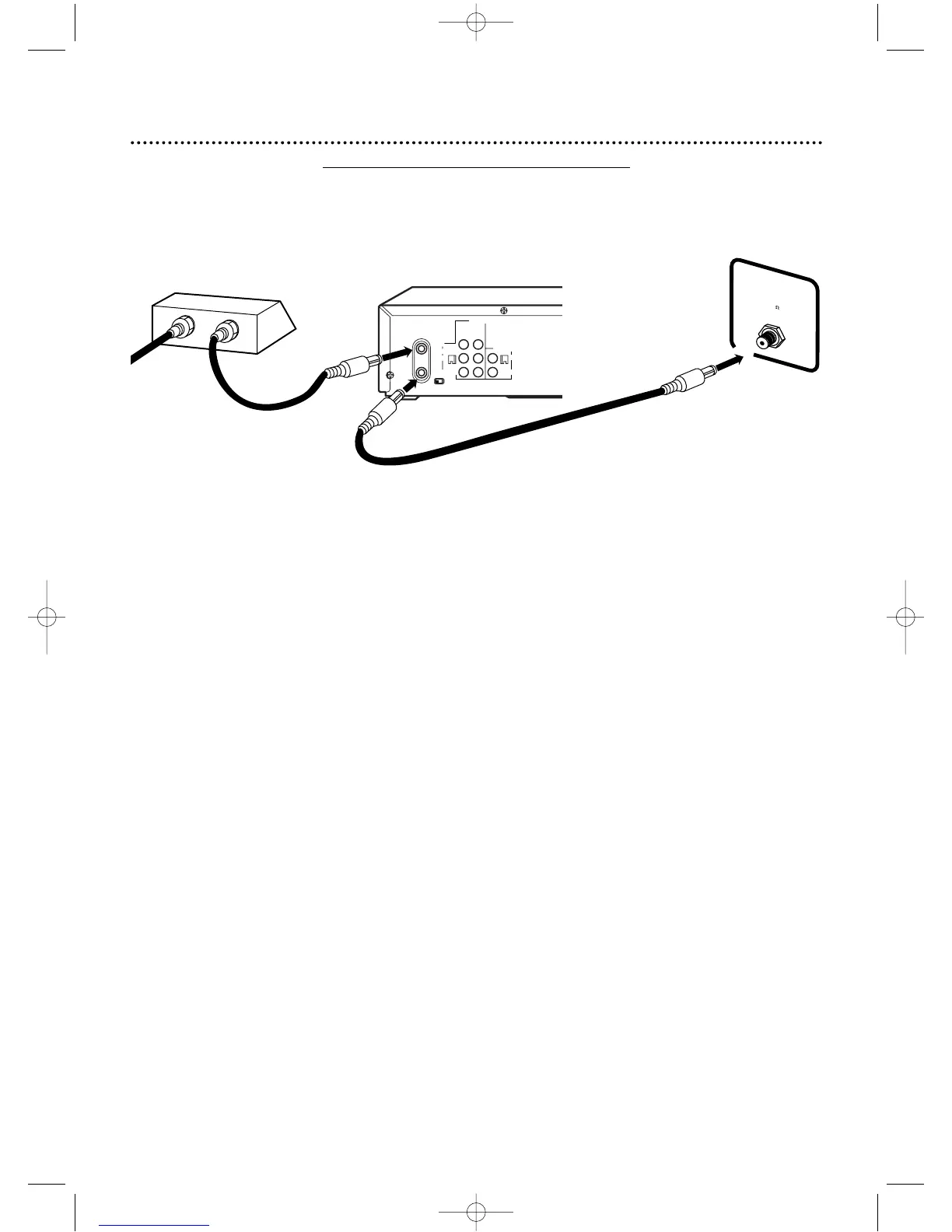

Connections
1
Connect a Cable signal to the IN Jack on the Cable
Box/DBS.
2
Use an RF coaxial cable (supplied) to connect the OUT Jack
on the Cable Box/DBS to the ANT-IN (Antenna In) Jack on
the DVD/VCR.
3
Use a second RF coaxial cable to connect the ANT-OUT
(Antenna Out) Jack on the DVD/VCR to the TV’s Antenna In
jack.
1
2
3
Cable
Signal
RF coaxial cable
RF coaxial cable
DVD/VCR to Cable Box/DBS and TV
Using only basic RF coaxial cables
This connection will let you use the features of both the VCR and the DVD Player.
