Philips DVP620VR/78 - Component;S-Video Video Connections

Hookups (cont’d) 11

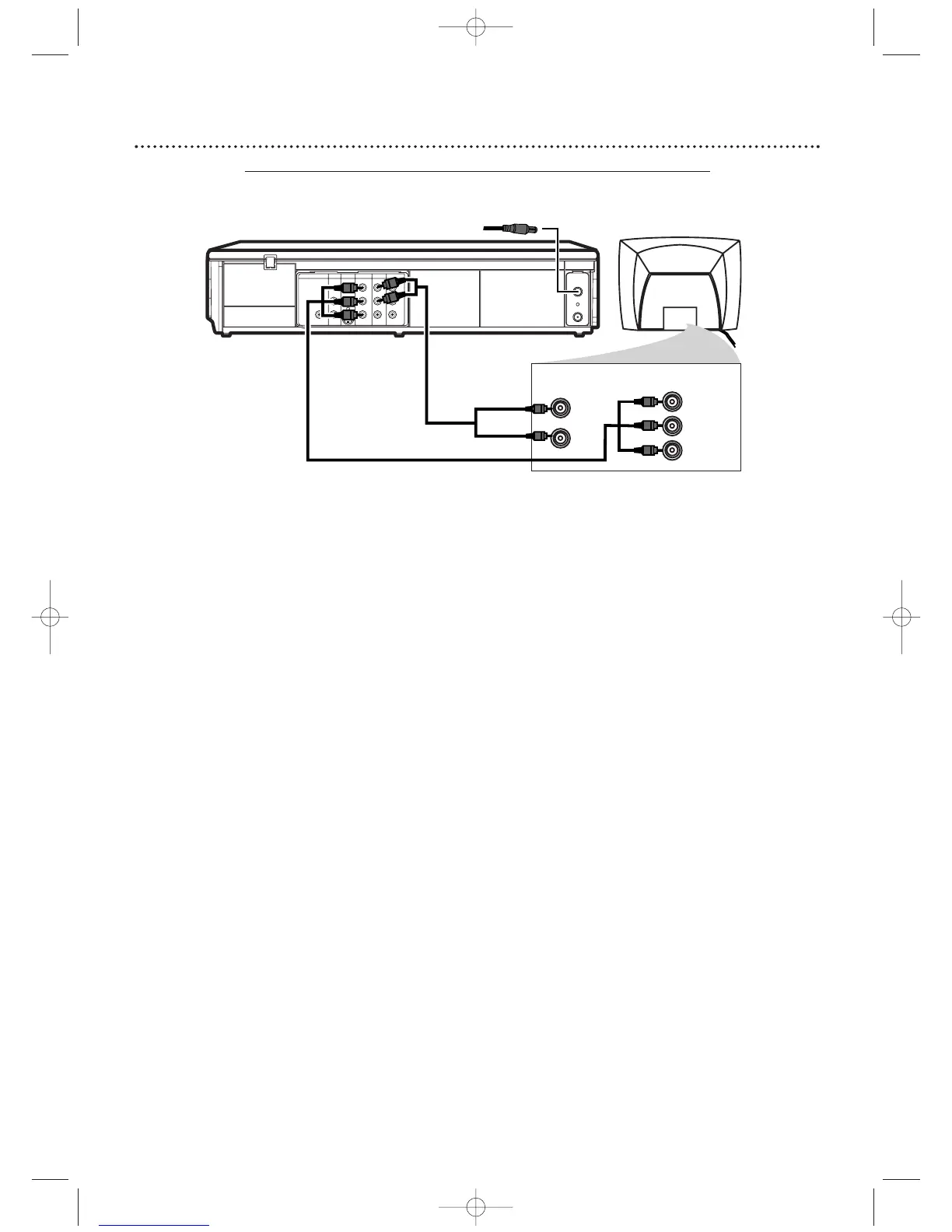

DVD/VCR to a TV that has Component Video In jacks
AUDIO IN
Y
Cb/Pb
Cr/Pr
COMPONENT
VIDEO IN
L
R
DIGITAL
AUDIO OUT
COAXIAL
AUDIO
OUT
DVD
L
R
L
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B /
P B
AUDIO OUT
DVD/VCR VCR
ANT - IN
ANT-OUT
VIDEO OUT
AUDIO IN
VIDEO IN
C R /
P
R
1
Connect the antenna or Cable TV signal to the ANT-IN (Antenna In)
jack of your DVD/VCR.
2
Connect the supplied red and white audio cables to the red and
white DVD/VCR AUDIO OUT jacks on the DVD/VCR and to the red
and white AUDIO IN jacks on the TV. Match the cable colors to the jack
colors.
3
Connect component video cable (not supplied) to the
COMPONENT VIDEO OUT jacks on the DVD/VCR and to the
COMPONENT VIDEO IN jacks on the TV. The Component Video In
jacks on the TV are usually red, blue, and green.
The Component Video connection only supplies video (picture) for the DVD Player of
the DVD/VCR.Therefore, in order to use the VCR features or view TV channels at the
DVD/VCR, you still need to either connect the RF coaxial cable between the ANT-OUT
jack of the DVD/VCR and the TV’s Antenna In jack, or connect the yellow video cable.
To connect the supplied RF coaxial cable, see step 2 on page 7.To connect the
supplied yellow video cable, see step 3 on page
10.
If your TV is compatible with Progressive Scan (525P/480p), turn on Progressive Scan
at the DVD/VCR. Set PROGRESSIVE to ON in the Display menu so “P. SCAN”
appears on the display panel. Details are on pages 63-64.
If your TV is not compatible with Progressive Scan, press and hold PLAY
B (DVD) on
the front of the DVD/VCR for more than five seconds so “P. SCAN” does not appear
on the display panel.
4
Connect the power cords of the DVD/VCR and TV to a power outlet.
Turn on the TV and set it to the Component Video In channel for
DVD Player features.
If you are using the RF coaxial cable for VCR playback, choose channel 3 or 4
at the TV. If you are using the yellow video cable for VCR playback, choose the
Video In channel at your TV.
Go to your lowest TV channel and change channels down until you see VCR or
DVD playback on the TV screen, or try channel 3 or 4 at the TV.
To help you find the right Audio/Video In channel, turn on the DVD/VCR. Press
DVD to put the DVD/VCR in DVD mode.With no Disc in the Player, a large DVD
Video logo will appear on the TV screen when you get the TV on the correct
Component Video In channel.
5
You are ready to turn on the DVD/VCR. Go to page 16 before
turning on the DVD/VCR.
2
3
Antenna or
Cable TV
Signal
1
